> AC / DC On Board Charger

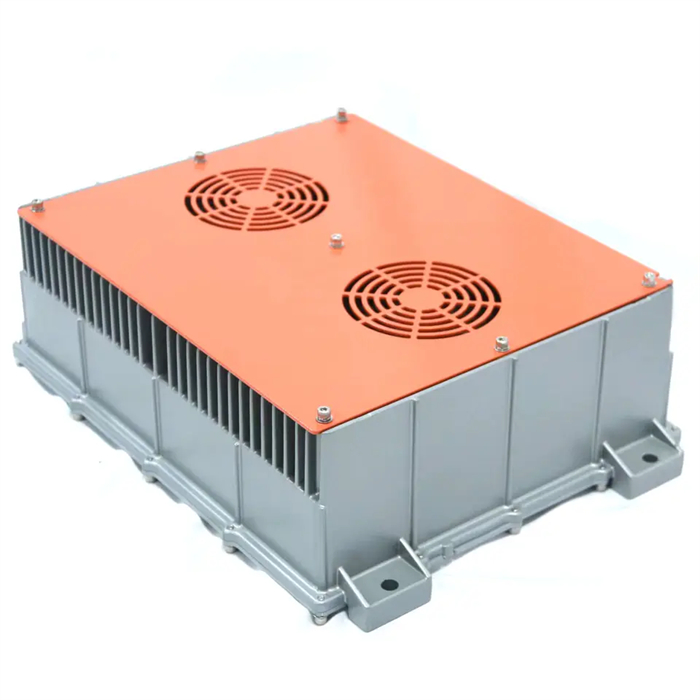

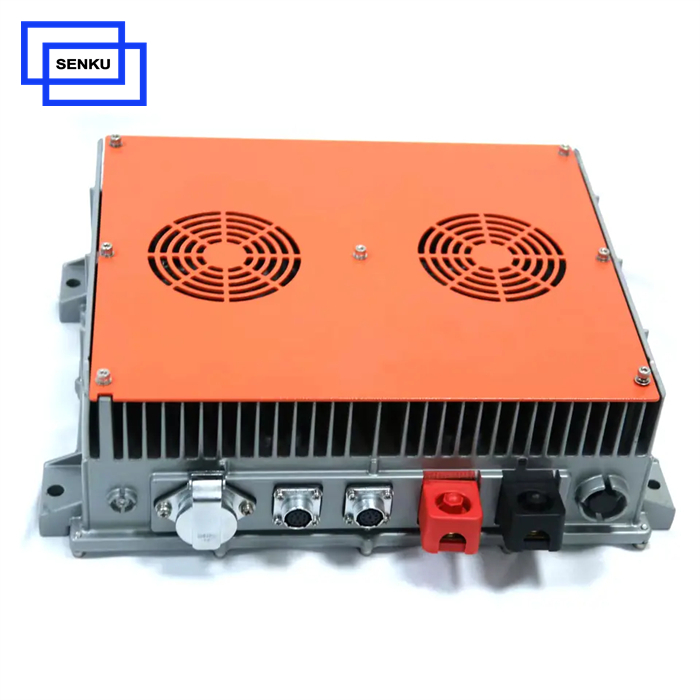

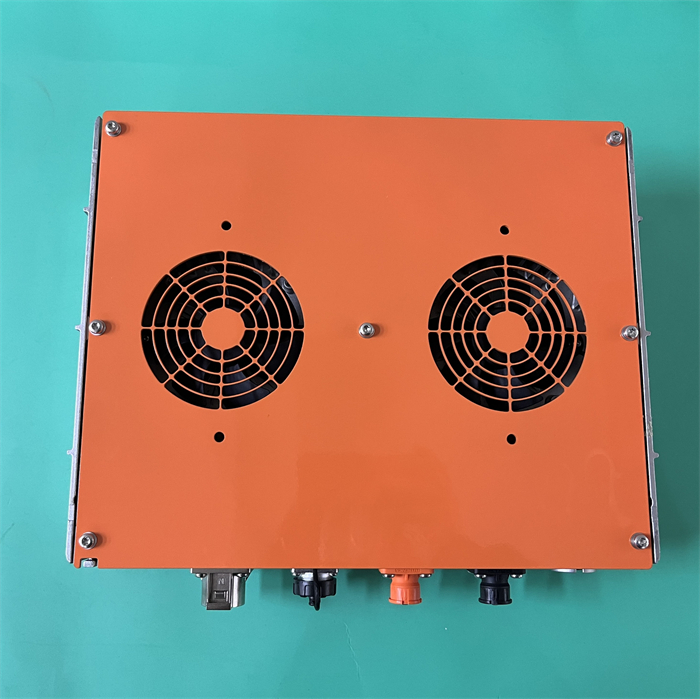

6KW 144V 180V AC to DC EV On Board Charger

1 Phase Input: 220V AC /30A
3 Phase Input: 380V AC /10A
Rated Power: 6KW
Output: 0～180VDC 39A
Product description: The 6KW obc 3 phase applications of an electric vehicle onboard charger are widespread and include personal electric vehicles like cars, trucks, and motorcycles, as well as public transportation like
Inquiry

Product introduction

Part No	Input Voltage Range	Rated Output Power	Rated Output Voltage	Output Voltage Range	Output Current Range
SK-L144V6000	3 Phase 380V AC /	6KW	144V DC	0～180VDC	0～39A

Basic Data of OBC 3 Phase 6KW Charger

Specification	Model	SK-LXXXV6000 (SK-L144V6000)
AC Input	Phases/ Lines	1-phase Or 3-Phase
	Input Voltage /Current	3 Phase 380V AC ≤30A Or 1 Phase 220V AC ≤10A
	Frequency	45Hz-65Hz
DC Output	Output Power	6KW @ 380VAC
	Output Voltage	0～180VDC (Rated 144V)
	Output Current	0～39A
Others	Operating noise	≤60dB
	CAN BUS	Support (Baud Rate 125Kbps、250Kbps、500Kbps optional)
	Cooling Method	Fan Cooling
	Dimension	352273112m

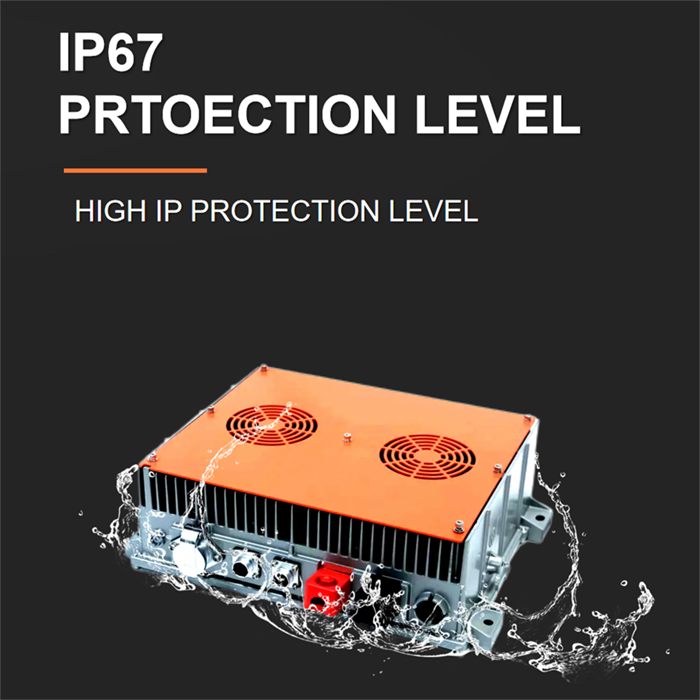

	IP Level	IP 67

More specification of this OBC 3 Phase 6KW Charger, please contact our sales.

Youtube video Link for this OBC 3 Phase 6KW Charger

https://youtu.be/nBErvMa4E14

Application of OBC 3 Phase 6KW CCharger

On-board charger (OBC) is a kind of power electronic equipment in electric cars, which converts AC power from external power source (such as residential socket or AC charging station) into DC power to charge vehicle battery pack.

The OBC 3 Phase 6KW CCharger applications of an electric vehicle onboard charger are widespread and include personal electric vehicles like cars, trucks, and motorcycles, as well as public transportation like electric buses and trains. Industrial applications for electric vehicle onboard chargers include charging electric forklifts, golf carts, and other industrial vehicles. Overall, electric vehicle onboard chargers are a critical component in the growing electric vehicle industry and will continue to play a significant role in the future of transportation.
