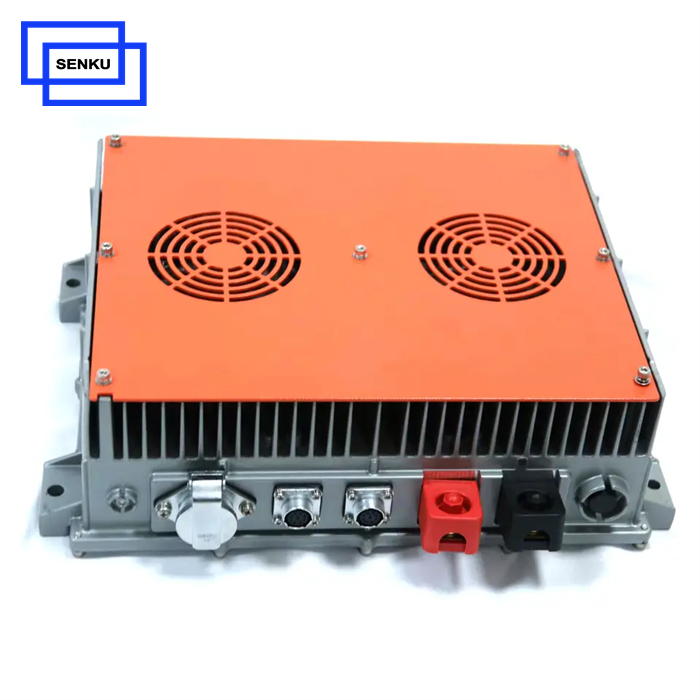

> AC / DC On Board Charger

1 Phase Input: 220V AC /30A
3 Phase Input: 380V AC /10A
Rated Power: 6KW
Output: 0～450VDC 18A
Product description: 6KW ev on board charger with high-quality structure and stable performance. It is typically designed to withstand harsh weather conditions, with a protection level of IP67, and can provide high prote
Inquiry

Part No	Input Voltage Range	Rated Output Power	Rated Output Range	Output Voltage Range	Output Current Range
SK-L360V6000	3phase 380V AC	6KW	360V DC	0～450VDC	0～18A

√ AC to DC Conversion: converts AC power from a charging station into DC power that can be used to charge the vehicle's batteries.

√ Excellent cost-effectiveness ratio: By combining cutting-edge components into a compact design.

√ Constant power and constant voltage state automatic conversion, effective saving time

√ Compact and lightweight design for ease of installation.

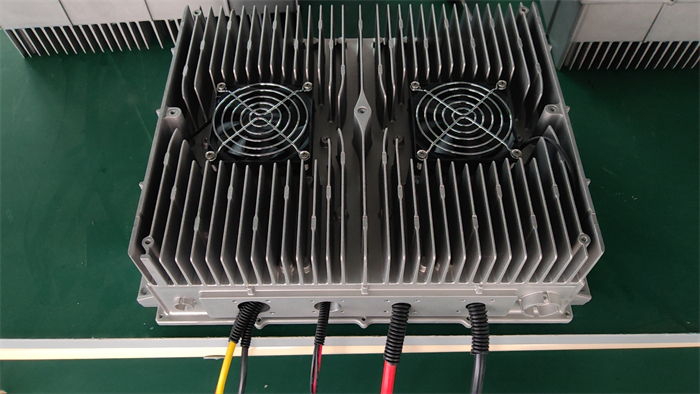

√ Fan cooling

√CAN communication

√ IP67 protection

Specification	Model	SK-LXXXV6000 (SK-L360V6000)
AC Input	Phases/ Lines	1-phase;Single Phase
	Input Voltage /Current	3 Phase 380V AC ≤30A Or 1 Phase 220V AC ≤10A
	Frequency	45Hz-65Hz
DC Output	Output Power	6KW @ 380VAC
	Output Voltage	0～450VDC (Rated 360V)
	Output Current	0～18A
Others	Operating noise	≤60dB
	CAN BUS	Support (Baud Rate 125Kbps、250Kbps、500Kbps optional)
	Cooling Method	Fan Cooling
	Dimension	352273112mm
	IP Level	IP 67
