> AC / DC On Board Charger

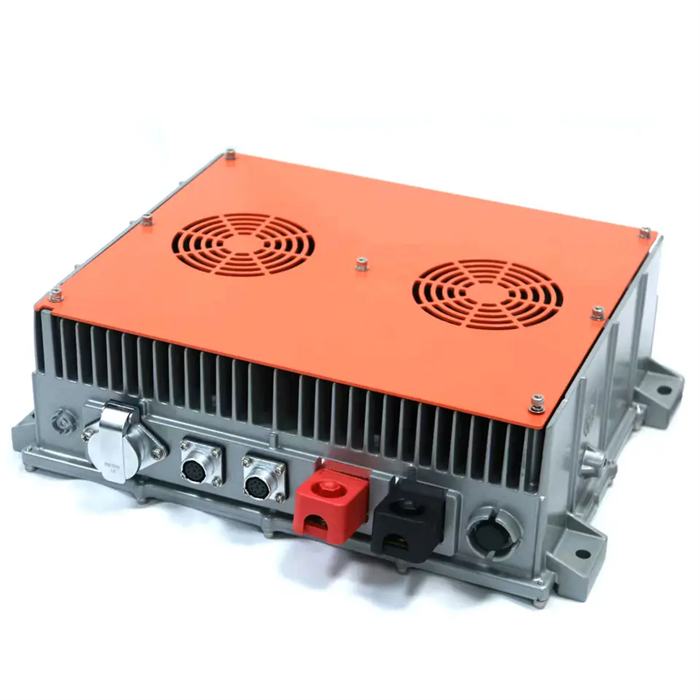

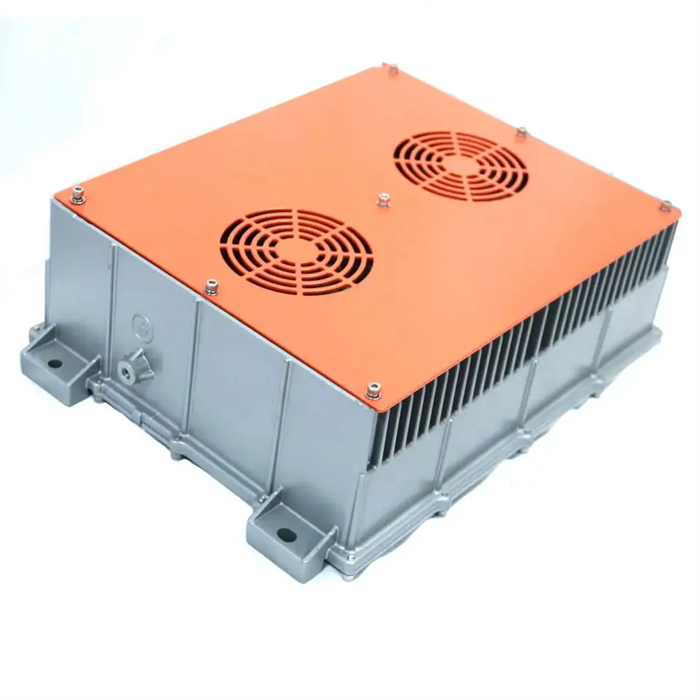

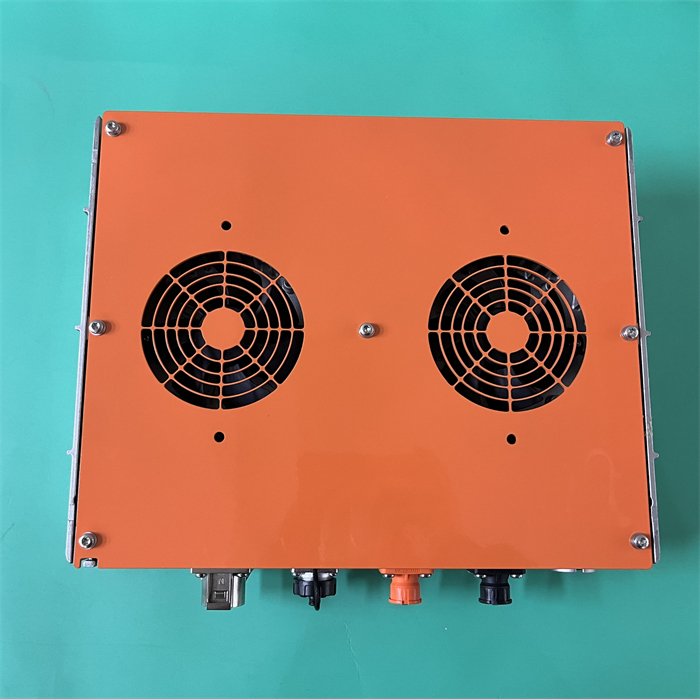

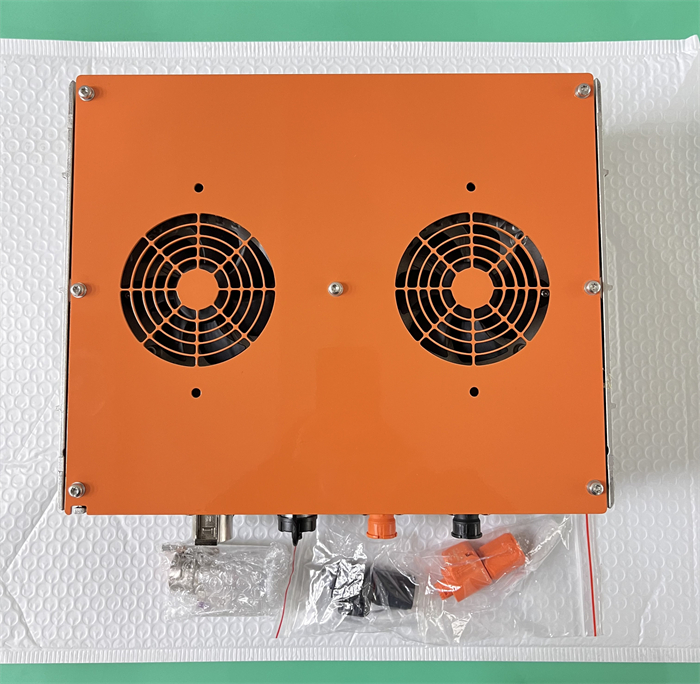

6.6KW 24V AC DC Battery Charger

Input: 90～265VAC /32A
Rated Power: 6.6KW
Output voltage: 0～36VDC
Output current: 0～200A
Product description: Senku 6.6kw on-board charger is specially designed for supplying the electricity for electric vehicle’s power battery, on the basis of the national standards for the charger. This product has the adva
Inquiry

Product introduction

Part No	Input Voltage Range	Rated Output Power	Rated Output Range	Output Voltage Range	Output Current Range
SK-L024V6600	90～265VAC	6.6KW	24V DC	0～36VDC	0～200A

electric cars trucks motorcycles 6.6kw on-board chargers

Features

·Fully Sealed, Enforce fan Cooling（Module Optional）
·Reliable working under -35℃- +85℃
·Internal temperature sensor
·Shut off inside temperature over 90°C

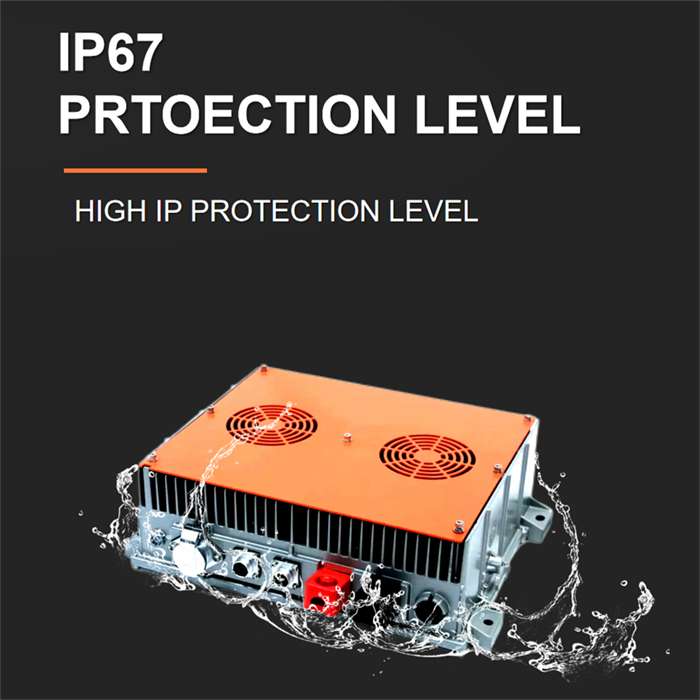

·IP67 Protection Level
·Working well in immersion shortly

Basic Data

Specification	Model	SK-LXXXV3300 (SK-L024V3300)
AC Input	Phases/ Lines	1-phase;Single Phase
	Input Voltage /Current	95V - 265V AC /≤32A
	Frequency	45Hz-65Hz
DC Output	Output Power	6.6KW @ 220VAC
	Output Voltage	0～36VDC (Rated 24V)
	Output Current	0～200A
Others	Operating noise	≤60dB
	Can Communication	Support (Baud Rate 125Kbps、250Kbps、500Kbps optional)
	Cooling Method	Fan Cooling
	Dimension	352273112mm
	IP Level	IP 67
