> AC / DC On Board Charger

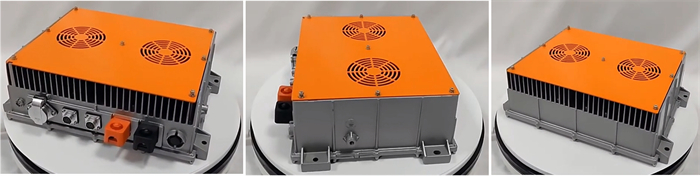

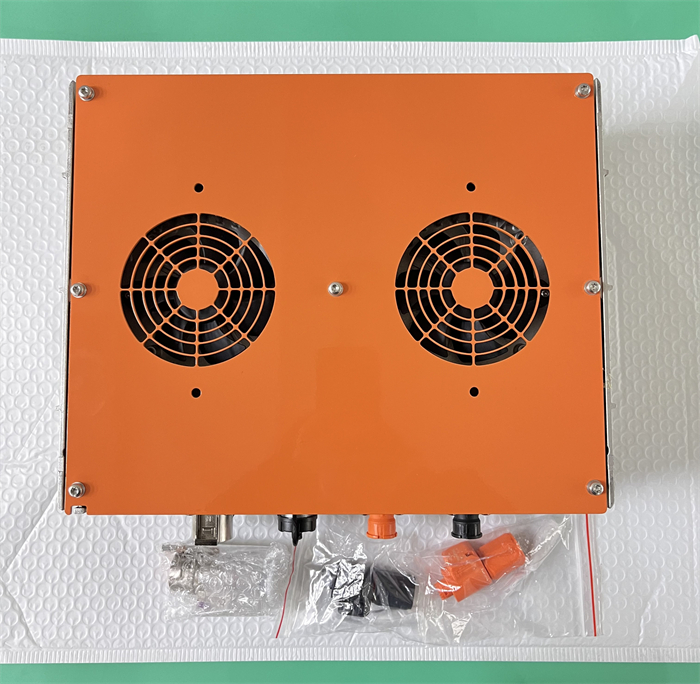

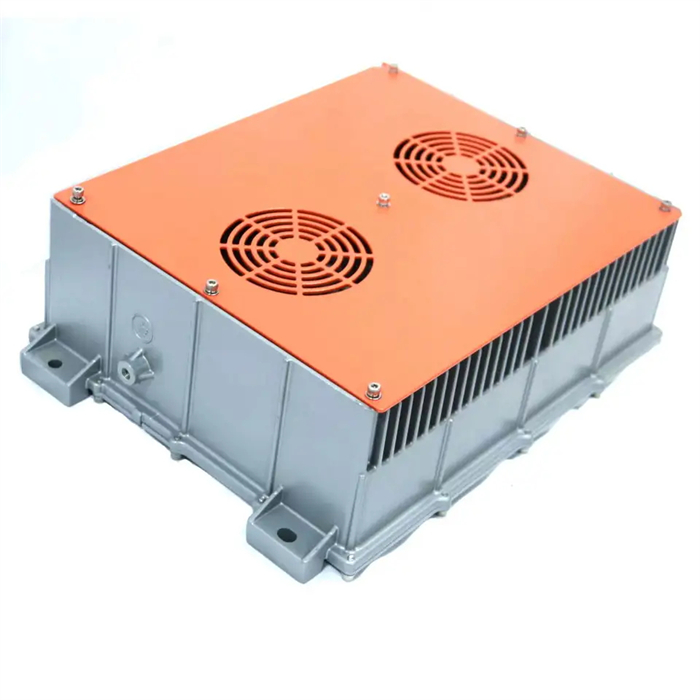

6.6KW Series EV OBC Charger

Rated Input: 90～265VAC /16A
Rated Power: 6.6KW
Output voltage: Subject to Battery Voltage
IP Level: IP 67
Product description: 6.6 kw charger are widely used in electric cars, trucks, and motorcycles, as well as public transportation vehicles such as electric buses and trains. The industrial applications of 6.6KW chargers inc
Inquiry

Product introduction

Model list of 6.6KW SK-LXXXV6600 Series OBC 6.6KW Charger

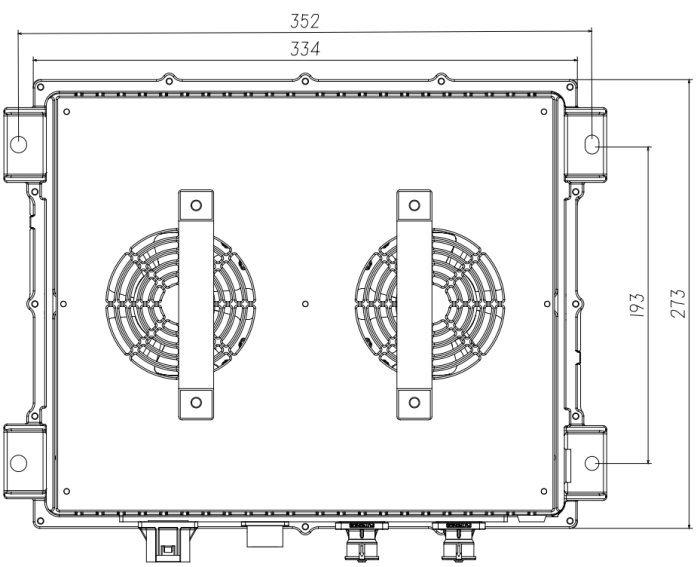

Rated Output	Output Voltage Range	Output Current Range	Charger Model	*Dimension (LWH)*
24V DC 200A	0～36V DC	0～200A	SK-L024V6600	352273112mm
48V DC 120A	0～70V DC	0～120A	SK-L048V6600	352273112mm
72V DC 90A	0～100V DC	0～90A	SK-L072V6600	352273112mm
80V DC 90A	0～105V DC	0～80A	SK-L080V6600	302211113mm
108V DC 60A	0～135V DC	0～60A	SK-L108V6600	302211113mm
144V DC 44A	0～180V DC	0～44A	SK-L144V6600	302211113mm
360V DC 18A	0～500V DC	0～18A	SK-L360V6600	302211113mm
540V DC 12A	0～700V DC	0～12A	SK-L540V6600	302211113mm
700V DC 12A	0～850V DC	0～9A	SK-L700V6600	302211113mm

6.6kw charger 48v

More specification of this 6.6KW OBC charger, please contact our sales.

Youtube video Link for this 6.6kw obc charger

https://youtu.be/nBErvMa4E14

Application of 6.6kw OBC charger

On-board charger (OBC) is a kind of power electronic equipment in electric cars, which converts AC power from external power source (such as residential socket or AC charging station) into DC power to charge vehicle battery pack.

The 6.6KW OBC Charger applications of an electric vehicle onboard charger are widespread and include personal electric vehicles like cars, trucks, and motorcycles, as well as public transportation like electric buses and trains. Industrial applications for electric vehicle onboard chargers include charging electric forklifts, golf carts, and other industrial vehicles. Overall, electric vehicle onboard chargers are a critical component in the growing electric vehicle industry and will continue to play a significant role in the future of transportation.
