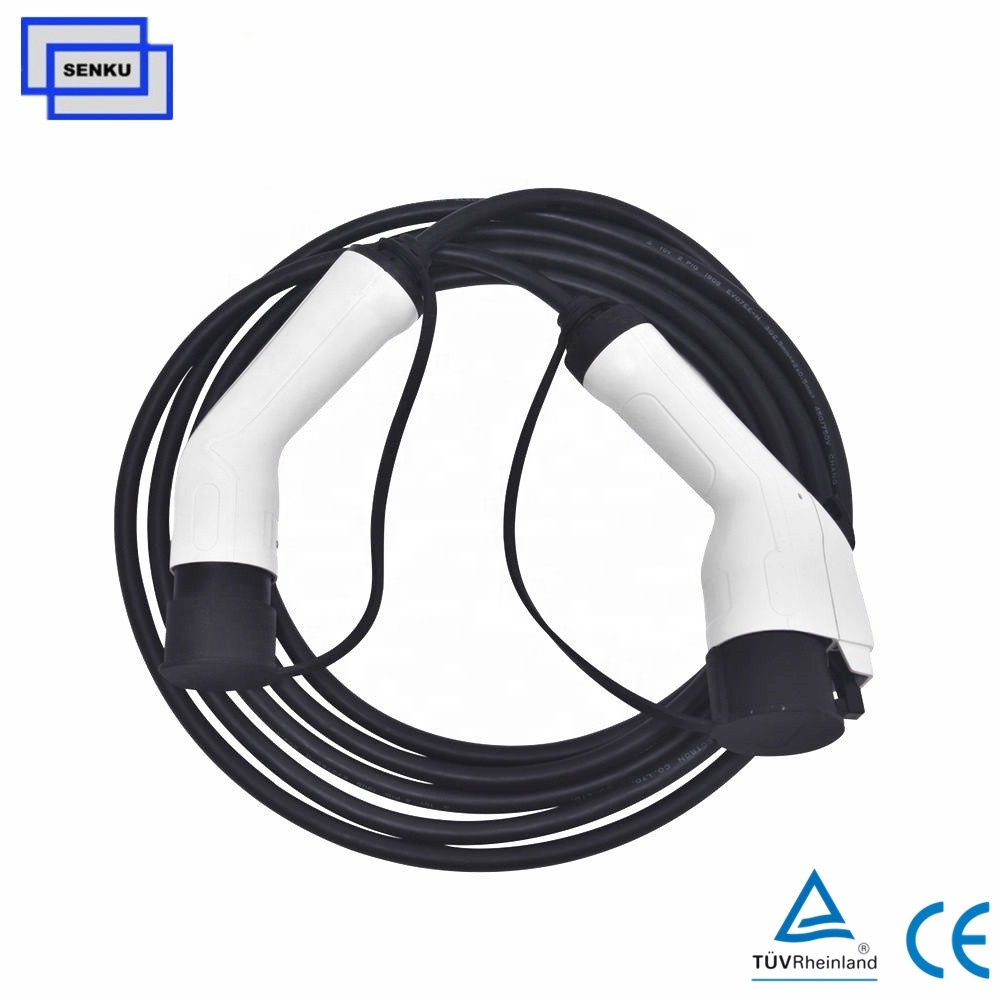

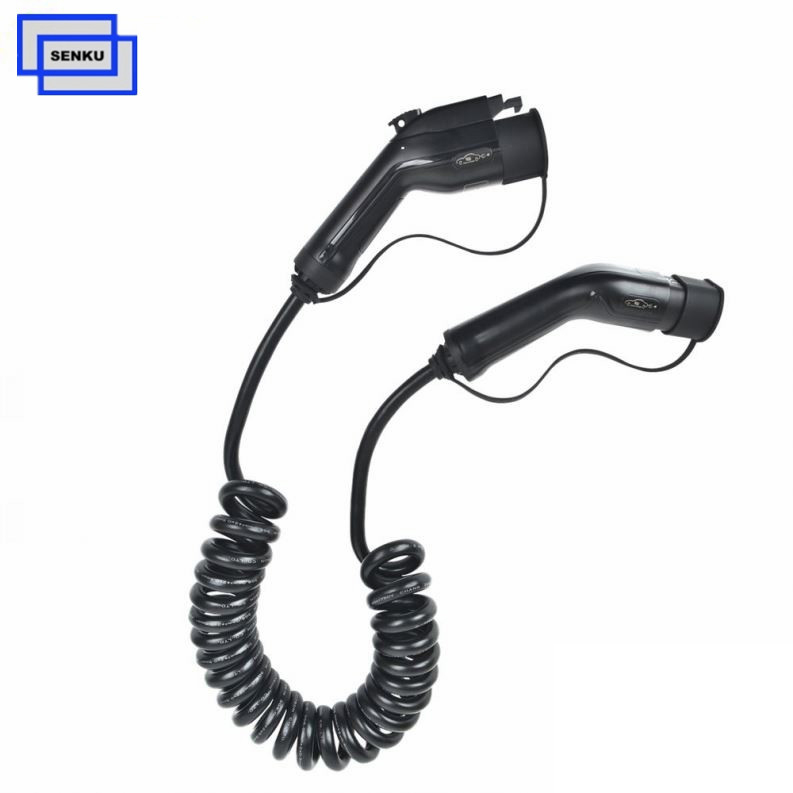

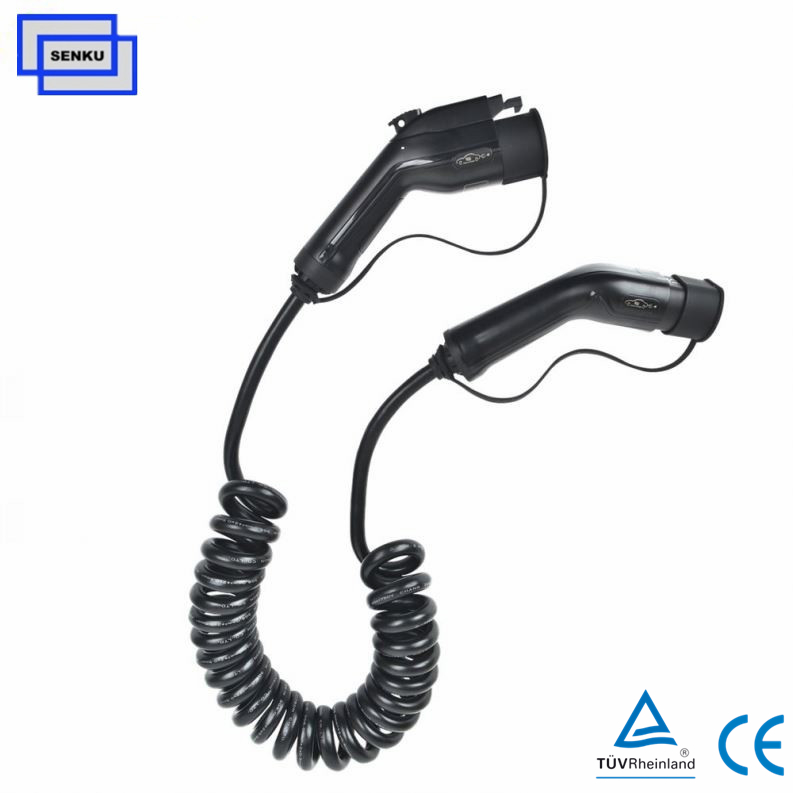

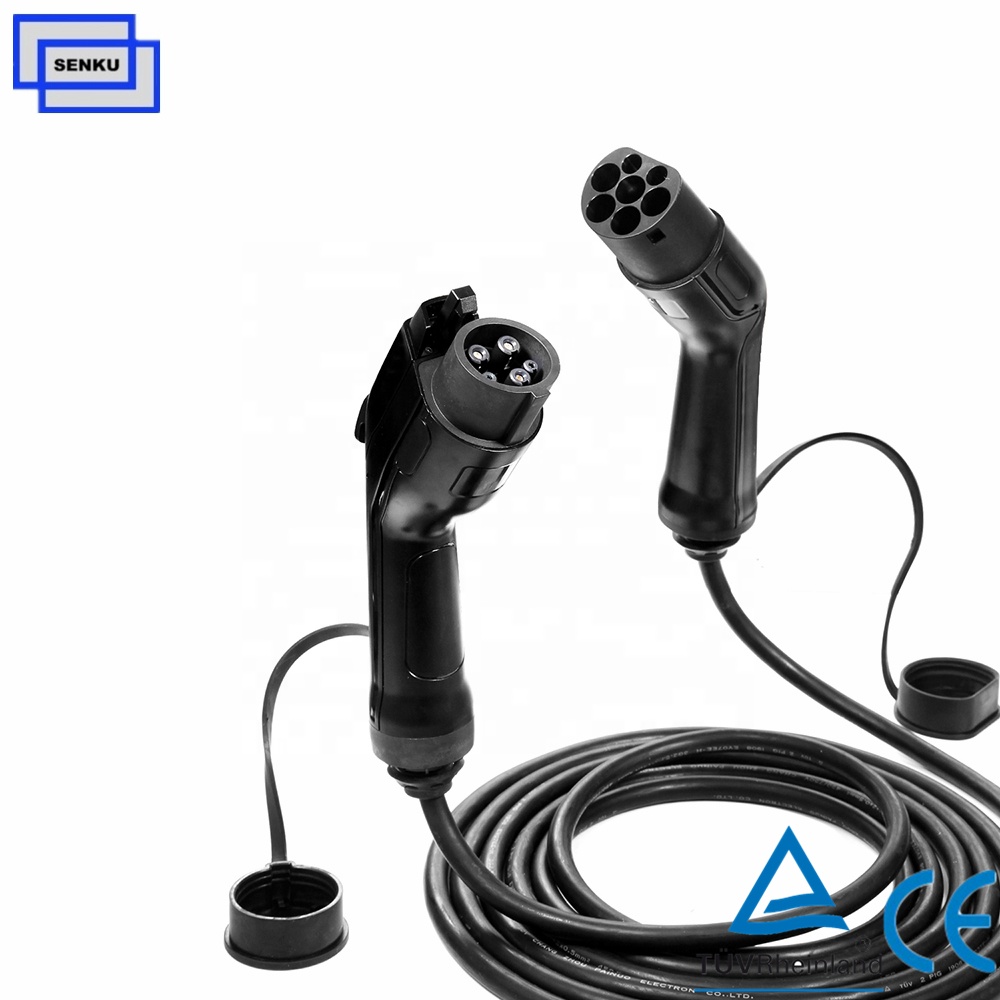

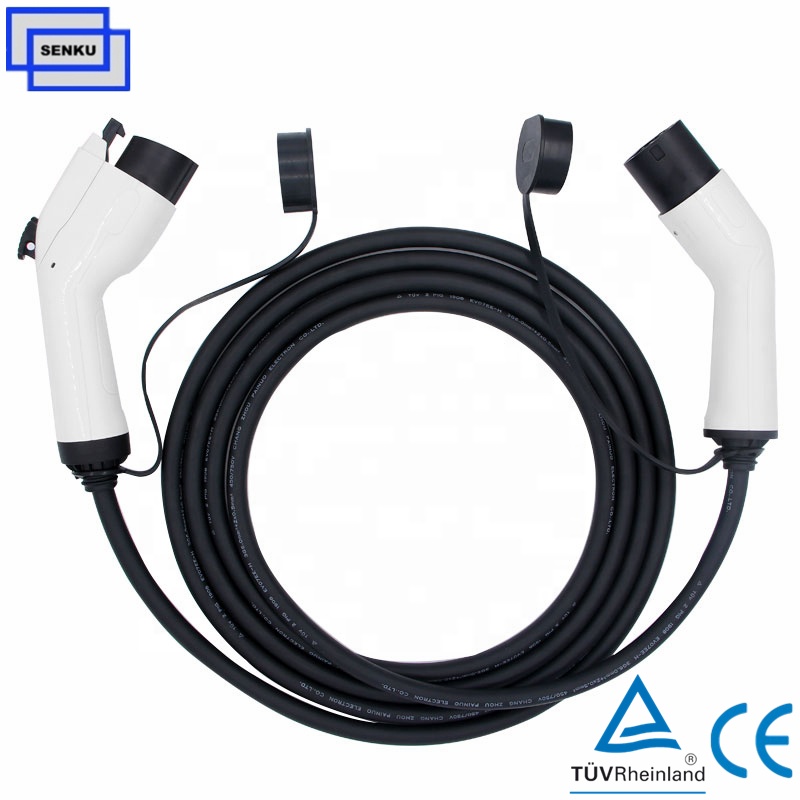

> Mode3 Ev Charging Cable

Rated current: 16A / 32A
Rated voltage: 250V AC
Operation Temp.:-30℃ ~ + 50℃
IP protection class: IP 55
Product description: The mode3 type 2 to type 1 ev charging cable is meet the SAE J1772 standard and TUV UL certificated. You can use this mode3 ev charging cable charging in home or pucblic mode3 socket type ev charging
Inquiry

Features:

1- High quality with TUV UL certification.

The type 2 to type 1 ev charging cable meet the SAE J1772 standard.

Charging cable and Connector all TUV UL certificated.

2- Beautiful Appearance

Senku machinery type 2 to type 1 ev charging cable with one injection design charging plugs, tno screw design, easy to handle.

3- Easy to use.

The type 2 to type 1 ev charging cable can charging almost all type1 electric cars.

4-Customized Service Support
Charging connector with black / white color for option, and customized color support.

Brand logo Customized service support.

Electric Performance	TYPE2 to TYPE2 EV Charging Cable
Rated current	16A / 32A Option
Rated voltage	250VAC
Charging Plug	SAE J1772 Standard Type1 Male and Female
Insulation resistance	>1000MΩ (DC500V)
Terminal temperature rise.	<50K
Withstand Voltage	2500V
Mechanical life	no-load plug in / plug out > 10000 times; Can afford 1m drop test and 2T vehicle run over pressure
Material	Case Material: Thermoplasti, Flame retardant grade UL94-0; Pin: Cooper alloy , Sliver plating
Plug Color for option	Black/ Green/Orange/Blue/White or Customized
Operation Temp.	-30℃ ~ + 50℃
IP protection class	IP55
Standard	TUV UL; SAE J1772

Tag: type 2 to type 1 ev charging cable, manufacturers, companies
