> Mode3 Ev Charging Cable

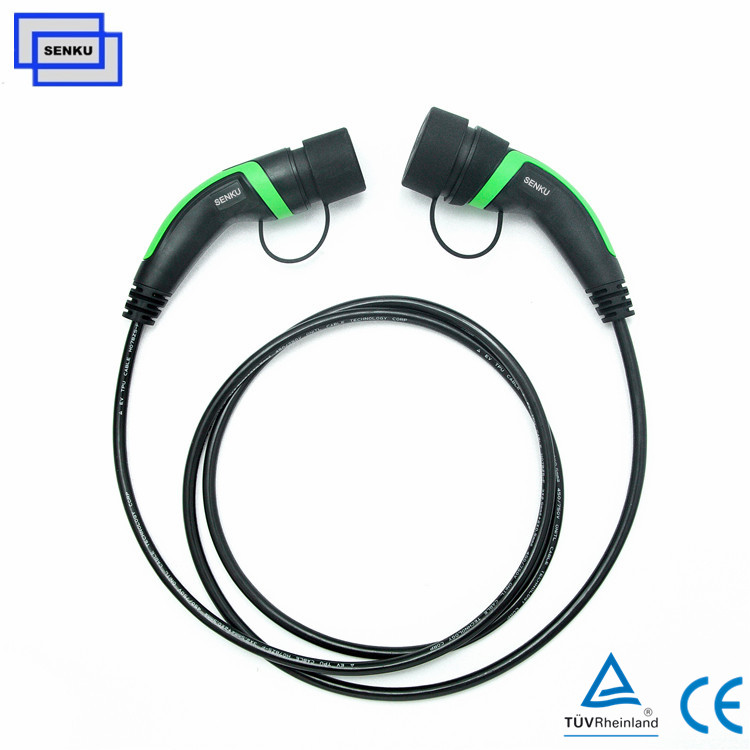

1 phase 32A Type 2 to Type 2 Mode3 Cable Charger
- Rated current: 32A
- Rated voltage: 250V AC
- Operation Temp.:-30℃ ~ + 50℃
- IP protection class: IP 55( working condition)
- Product description: The mode3 ev charging cable is designed for the socket type2 mode3 charger, You can use this charging cable to charge in home or pucblic charging stations. it suitable for almost all the Type2 Evs, Su
Product introduction
1- High quality with TUV CE certification.
The type2 to type2 car charger meet the IEC 62196-2 2016 2 IIe standard, Type2 onnectors and charging cable ll TUV CE certificated.
2- Beautiful Appearance
Senku machinery Type2 charging connector with nice design charging plugs, totally no screw design, easy to handle.
3- Easy to use.
The 16A type2 to type2 car charger can charging almost all type2 electric cars.
4-Longer Service Life.
The ype 2 to type2 car charger with XLPO for cable insulation rolonging the againg resistance ife span, TPU sheath improved he bending life and wear esistance of cable.
5-Customized Service Support
Charging connector with a Variety color for option, and customized color support.
Brand logo Customized service support.
|
Electric Performance |
TYPE2 to TYPE2 32A Single Phase |
|
Rated current |
32A |
|
Rated voltage |
250V AC |
|
Charging Plug |

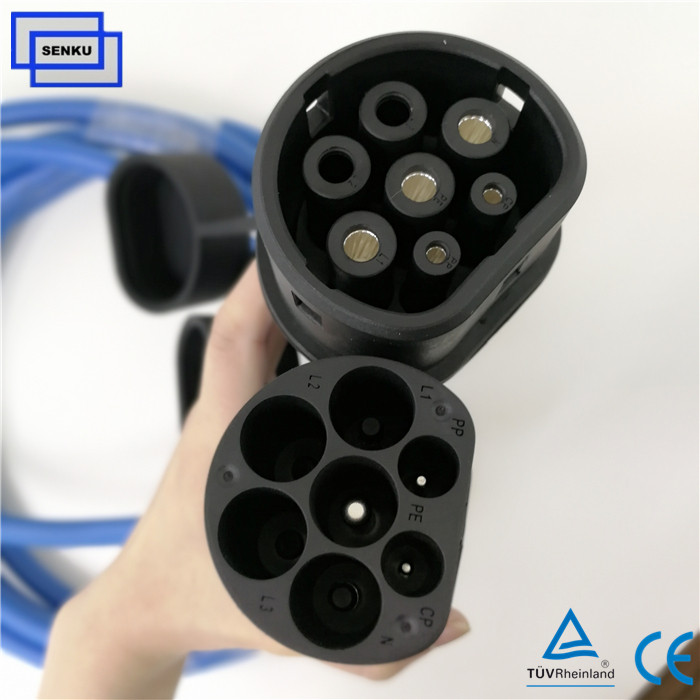

IEC 62196 Standard Type2 Male and Female |
|
Insulation resistance |
>1000MΩ (DC500V) |
|
Terminal temperature rise. |
<50K |
|
Withstand Voltage |
2500V |
|
Mechanical life |
no-load plug in / plug out > 10000 times; Can afford 1m drop test and 2T vehicle run over pressure |
|
Material |
Case Material: Thermoplasti, Flame retardant grade UL94-0; Pin: Cooper alloy , Sliver plating |
|
Plug Color for option |
Black/ Green/Orange/Blue/White or Customized |
|
Operation Temp. |
-30℃ ~ + 50℃ |
|
IP protection class |
IP55 (Working Condition) |
|
Standard |
TUV CE; IEC62196-2 2016 2IIe |
