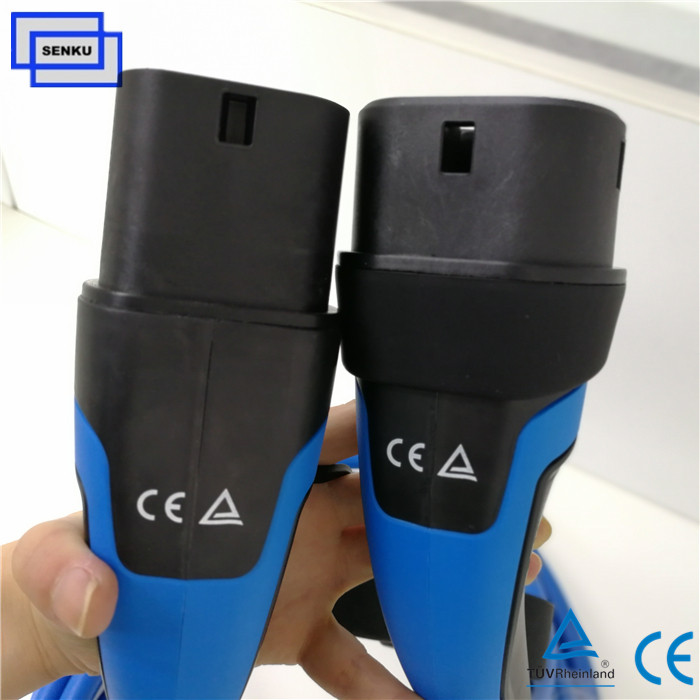

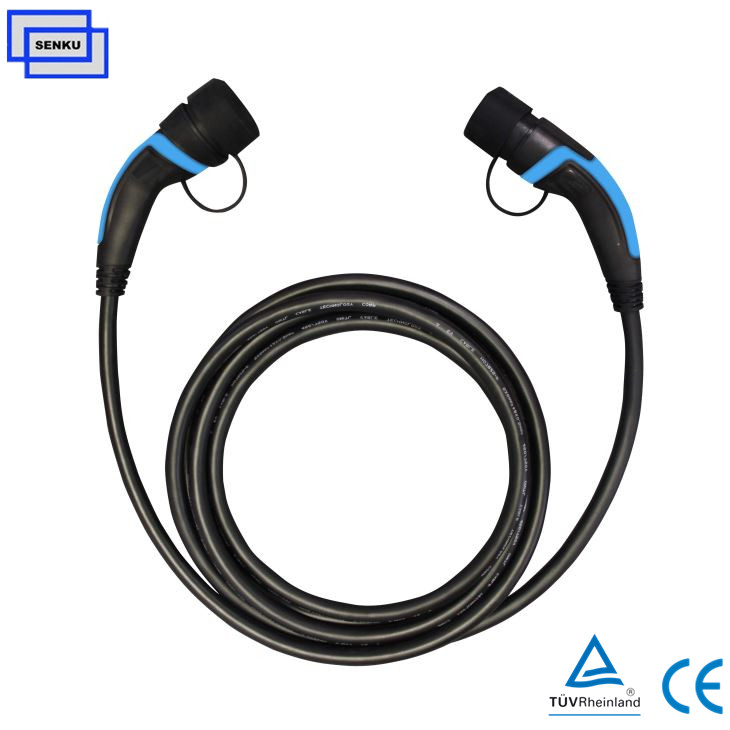

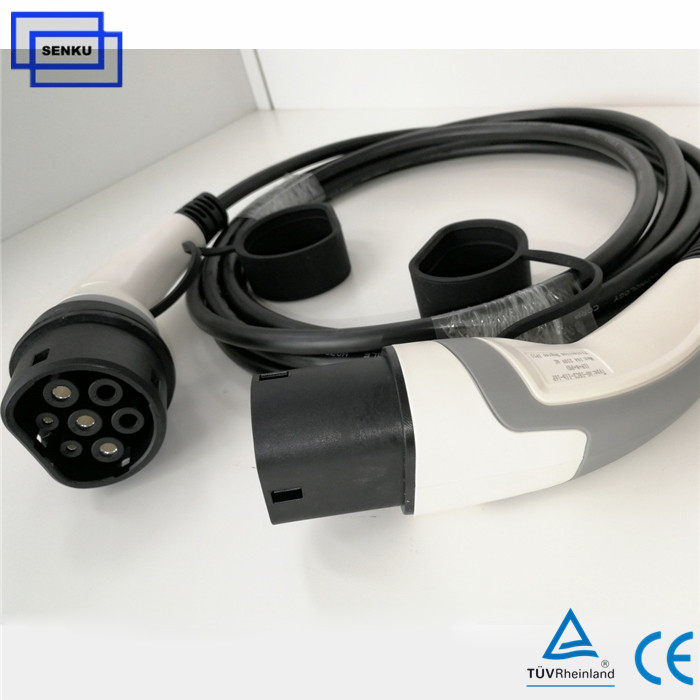

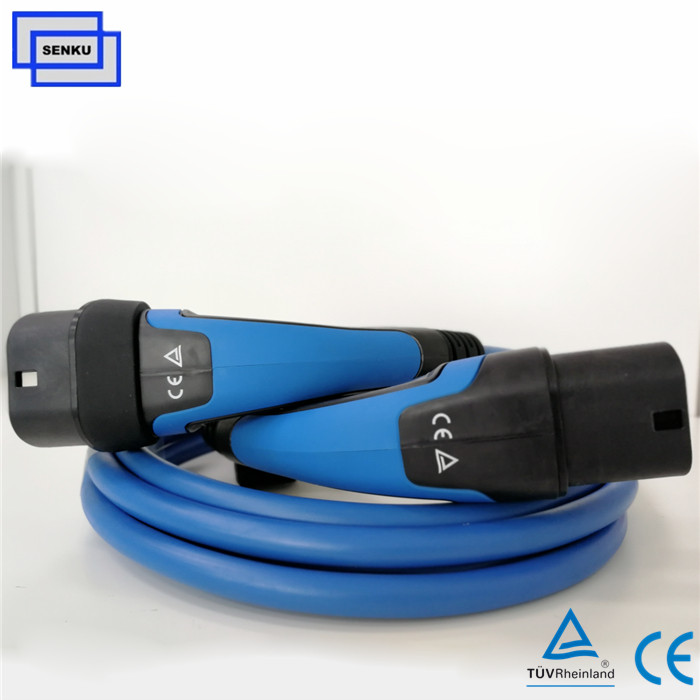

3 phase 16AType 2 to Type 2 Mode3 Cable Charger
- Rated current: 16A
- Rated voltage: 480V AC
- Operation Temp.:-30℃ ~ + 50℃
- IP protection class: IP 55
- Product description: The type2 connector is meet the IEC 62196-2 standard and TUV CE certificated. You can use this mode3 ev charging cable charging in home or pucblic mode3 socket type ev charging station. it suitable fo
Product introduction
Features
1- High quality with TUV CE certification.
The type2 to type2 mode3 ev charging cable meet the IEC 62196-2 2016 2 IIe standard, Type2 onnectors and charging cable ll TUV CE certificated.
2- Beautiful Appearance
Senku machinery Type2 charging connector with nice design charging plugs, totally no screw design, easy to handle.
3- Easy to use.
The 16A 3phase type2 mode2 ev charging cable can charging almost all type2 electric cars.
4-Longer Service Life.
The Type2 ac portable type2 mode3 ev charging cable with XLPO for cable insulation rolonging the againg resistance ife span, TPU sheath improved he bending life and wear esistance of cable.
5-Customized Service Support
Charging connector with a Variety color for option, and customized color support.
Brand logo Customized service support.
Electric Performance |
TYPE2 to TYPE2 16A Three Phase |
Rated current |
16A |
Rated voltage |
480V AC |
Charging Plug |
IEC 62196 Standard Type2 Male and Female |
Insulation resistance |
>1000MΩ (DC500V) |
Terminal temperature rise. |
<50K |
Withstand Voltage |
2500V |
Mechanical life |
no-load plug in / plug out > 10000 times; Can afford 1m drop test and 2T vehicle run over pressure |
Material |
Case Material: Thermoplasti, Flame retardant grade UL94-0; Pin: Cooper alloy , Sliver plating |
Plug Color for option |
Black/ Green/Orange/Blue/White or Customized |
Operation Temp. |
-30℃ ~ + 50℃ |
IP protection class |
IP55 (Working Condition) |
Standard |
TUV CE; IEC62196-2 2016 2IIe |
