> Mode3 Ev Charging Cable

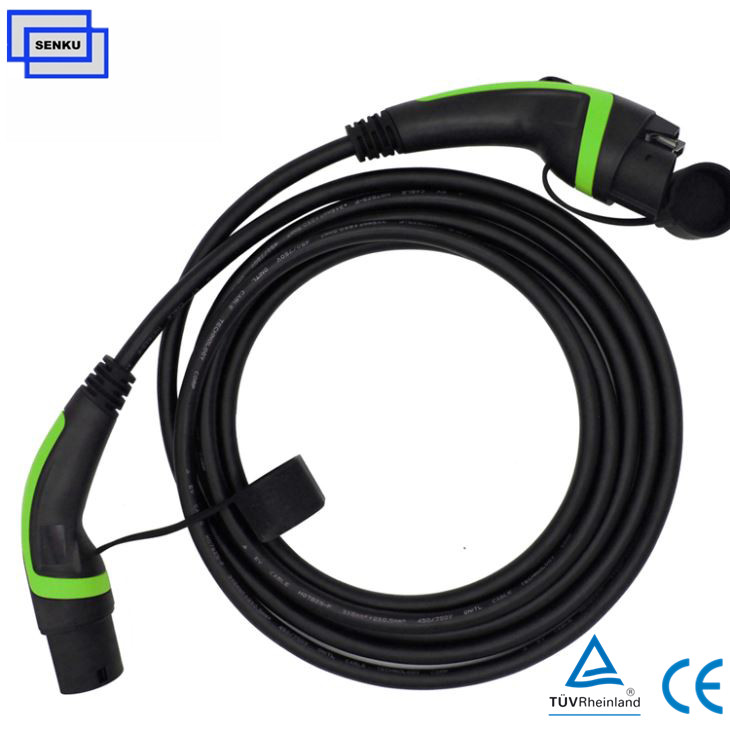

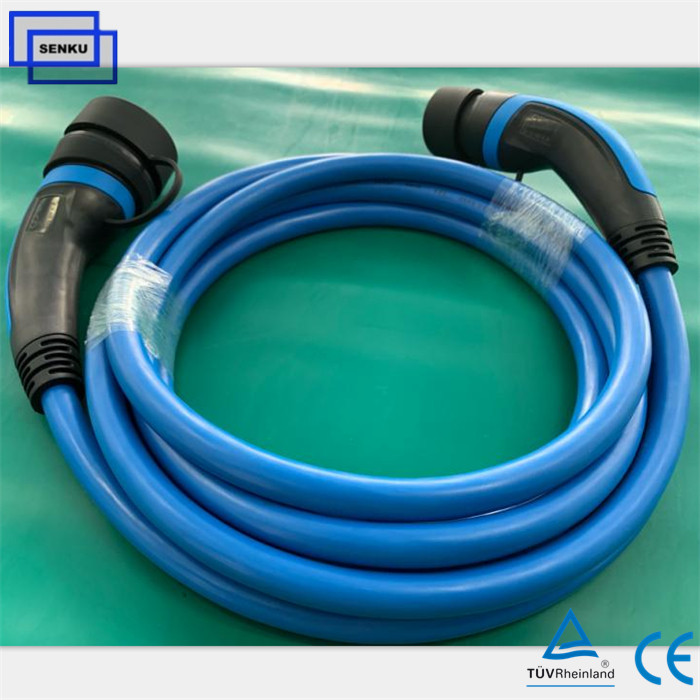

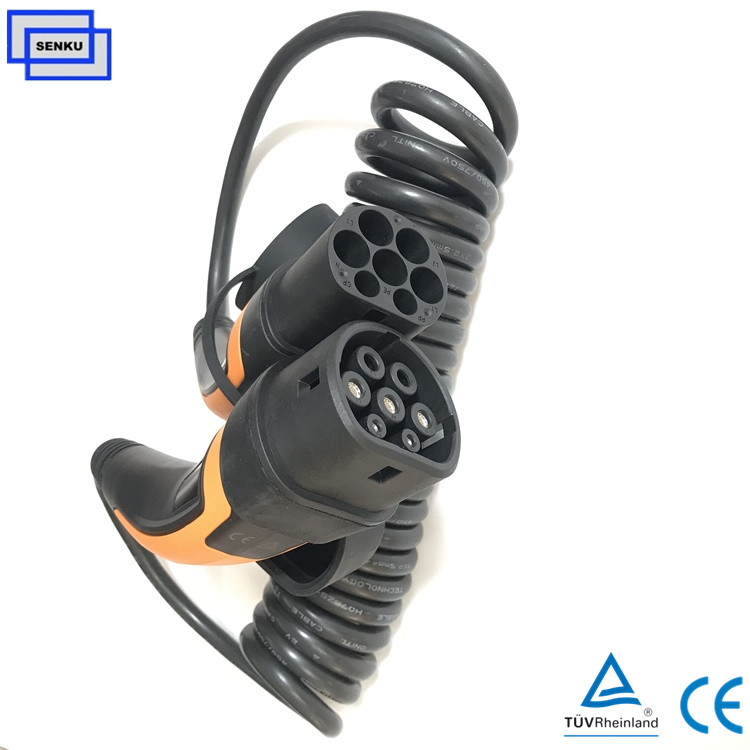

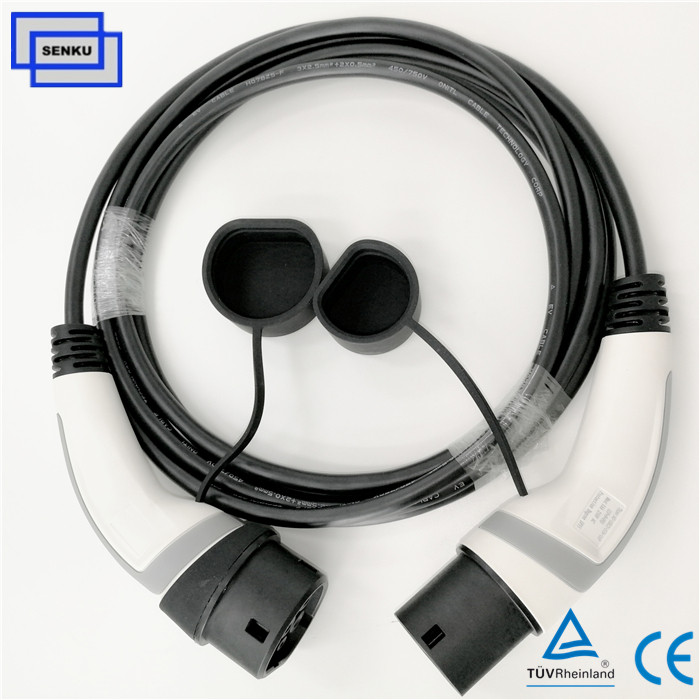

3 phase 32A Type 2 to Type 2 Mode3 Cable Charger
- Rated current: 32A
- Rated voltage: 480V AC
- Operation Temp.:-30℃ ~ + 50℃
- IP protection class: IP 55
- Product description: The mode3 ev charging cable is meet the IEC 62196-2 standard and TUV CE certificated. You can use this mode3 ev charging cable charging in home or pucblic mode3 socket type ev charging station. it sui
Product introduction
Features:
1- High quality with TUV CE certification.
The type2 mode3 charger socket use ev charging cable meet the IEC 62196-2 2016 2 IIe standard, Type2 onnectors and charging cable all TUV CE certificated.
2- Beautiful Appearance
Senku machinery Type2 charging connector with nice design charging plugs, totally no screw design, easy to handle.
3- Easy to use.
The socket type2 socket mode3 charger use ev charging cable can charging almost all type2 electric cars.
4-Longer Service Life.
XLPO for cable insulation rolonging the againg resistance ife span, TPU sheath improved he bending life and wear esistance of cable.
5-Customized Service Support
Charging connector with a Variety color for option, and customized color support.
Brand logo Customized service support.
|
Electric Performance |
TYPE2 to TYPE2 32A Three Phase |
|
Rated current |
32A |
|
Rated voltage |
480V AC |
|
Charging Plug |
IEC 62196 Standard Type2 Male and Female |
|
Insulation resistance |
>1000MΩ (DC500V) |
|
Terminal temperature rise. |
<50K |
|
Withstand Voltage |
2500V |
|
Mechanical life |
no-load plug in / plug out > 10000 times; Can afford 1m drop test and 2T vehicle run over pressure |
|
Material |
Case Material: Thermoplasti, Flame retardant grade UL94-0; Pin: Cooper alloy , Sliver plating |
|
Plug Color for option |
Black/ Green/Orange/Blue/White or Customized |
|
Operation Temp. |
-30℃ ~ + 50℃ |
|
IP protection class |
IP55 (Working Condition) |
|
Standard |
TUV CE; IEC62196-2 2016 2IIe |
Tag: mode3 ev charging cbale, manufacturers, companies
