> AC / DC On Board Charger

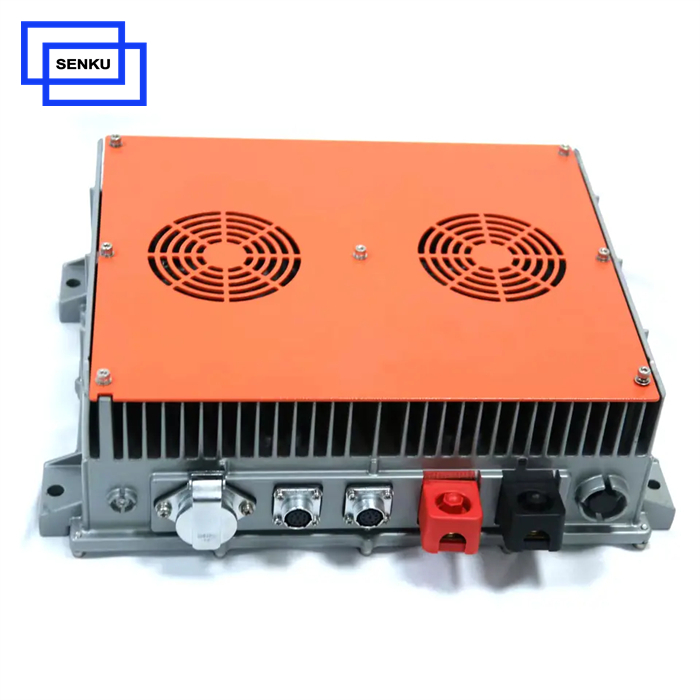

6KW 108V 132V AC to DC On Board Charger

1 Phase Input: 220V AC /30A
3 Phase Input: 380V AC /10A
Rated Power: 6KW
Output: 0～135V DC 54A
Product description: The 132V OBC 6KW Charger application is very extensive, including personal electric vehicles such as cars, trucks, and motorcycles, as well as public transportation vehicles such as electric buses and
Inquiry

Product introduction

Part No	Input Voltage Range	Rated Output Power	Rated Output Range	Output Voltage Range	Output Current Range
SK-L108V6000	3 Phase 380V AC	6KW	108V DC	0～135VDC	0～54A

132V OBC 6KW Charger senku

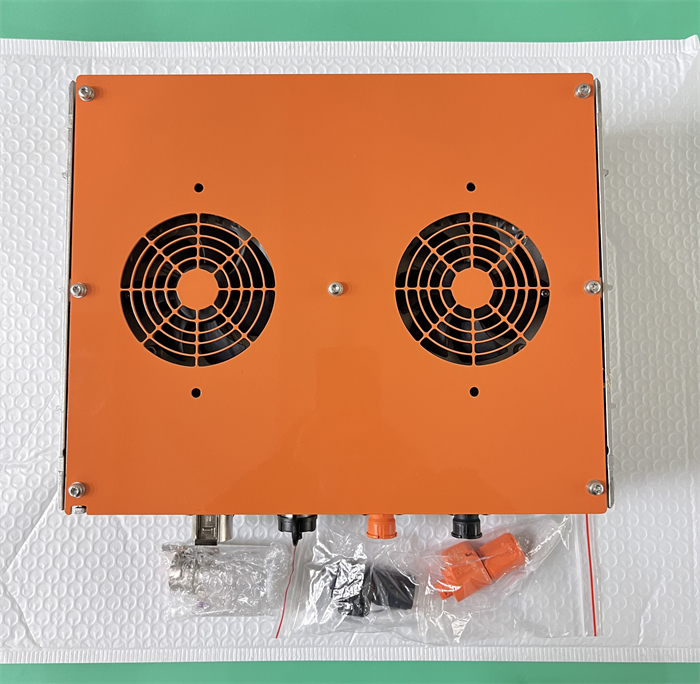

SK-L series 132V OBC 6KW CCharger is an efficient power electronic product used for converting AC to DC charging. it has excellent cost-effectiveness through advanced components and compact system design.

This 132V OBC 6KW CCharger is easy to integrate into existing infrastructure; The parallel charging mode can flexibly increase the charging power.

Basic Data

Specification	Model	SK-LXXXV6000 (SK-L108V6000)
AC Input	Phases/ Lines	1-phase Or 3-Phase
	Input Voltage /Current	3 Phase 380V AC ≤30A Or 1 Phase 220V AC ≤10A
	Frequency	45Hz-65Hz
DC Output	Output Power	6KW @ 380VAC
	Output Voltage	0～135VDC (Rated 108V)
	Output Current	0～54A
Others	Operating noise	≤60dB
	CAN BUS	Support (Baud Rate 125Kbps、250Kbps、500Kbps optional)
	Cooling Method	Fan Cooling

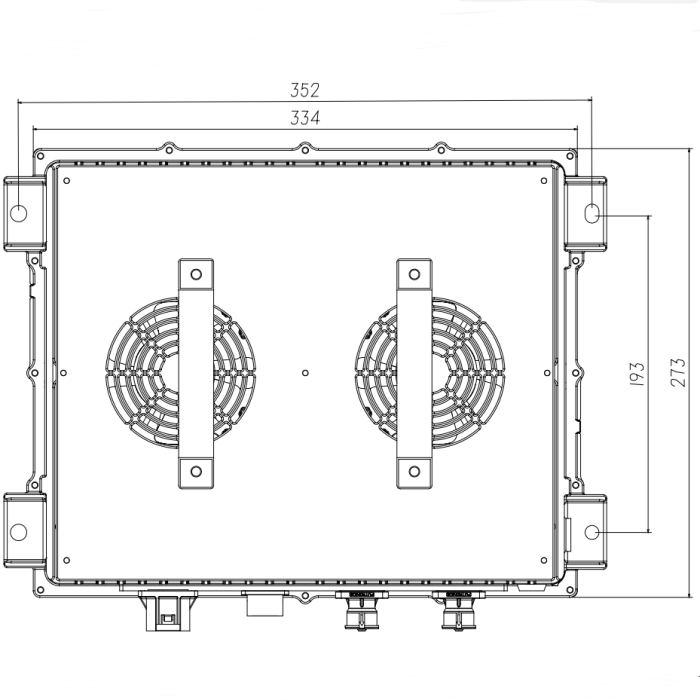

	Dimension	352273112mm
	IP Level	IP 67

More specification of this 1132V OBC 6KW CCharger, please contact our sales.

Youtube video Link for this 132V OBC 6KW CCharger

https://youtu.be/nBErvMa4E14

3.3 kw charger senku obc charger

3.3kw on board charger 500V 600V 700V

Lithium Lifepo4 Lead-acid Battery 3.3 kw charger 132V

Application of 132V OBC 6KW CCharger

The application of electric vehicle on-board chargers is very extensive, including personal electric vehicles such as cars, trucks, and motorcycles, as well as public transportation vehicles such as electric buses and trains. The industrial applications of electric vehicle on-board chargers include charging electric forklifts, golf carts, and other industrial vehicles. Overall, electric vehicle on-board chargers are a key component of the constantly evolving electric vehicle industry and will continue to play an important role in future transportation.
