> AC / DC On Board Charger

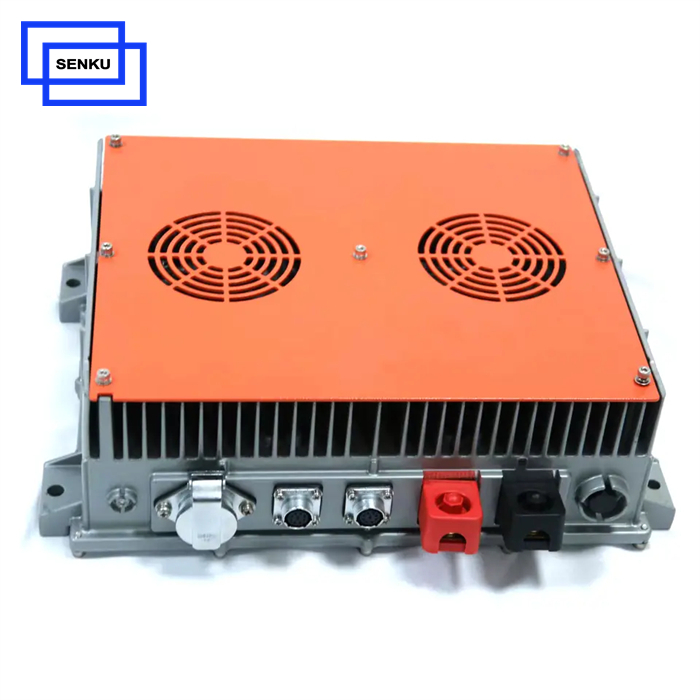

6KW 80V AC to DC On Board Charger

1 Phase Input: 220V AC /30A
3 Phase Input: 380V AC /10A
Rated Power: 6KW
Output: 0～105V DC 75A
Product description: The 6KW 84V Lithium Battery Charger application is very extensive, including personal electric vehicles such as cars, trucks, and motorcycles, as well as public transportation vehicles such as electri
Inquiry

Product introduction

Part No	Input Voltage Range	Rated Output Power	Rated Output Voltage	Output Voltage Range	Output Current Range
SK-L080V6000	3 Phase 380V AC	6KW	80V DC	0～105VDC	0～75A

6KW 84V Lithium Battery Charger senku

SK-L series 6KW 84V Lithium Battery Charger is an efficient power electronic product used for converting AC to DC charging. it has excellent cost-effectiveness through advanced components and compact system design.

This 6KW 84V Lithium Battery Charger is easy to integrate into existing infrastructure; The parallel charging mode can flexibly increase the charging power.

Basic Data

Specification	Model	SK-LXXXV6000 (SK-L080V6000)
AC Input	Phases/ Lines	1-phase Or 3-Phase
	Input Voltage /Current	3 Phase 380V AC ≤30A Or 1 Phase 220V AC ≤10A
	Frequency	45Hz-65Hz
DC Output	Output Power	6.6KW @ 220VAC
	Output Voltage	0～105VDC (Rated 80V)
	Output Current	0～75A
Others	Operating noise	≤60dB
	CAN BUS	Support (Baud Rate 125Kbps、250Kbps、500Kbps optional)
	Cooling Method	Fan Cooling
	Dimension	352273112mm

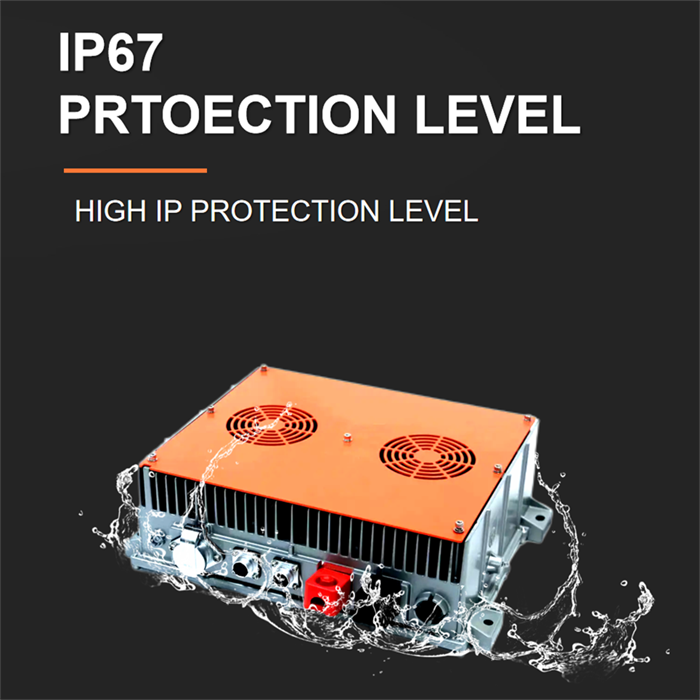

	IP Level	IP 67

More specification of this 6KW 84V Lithium Battery Charger, please contact our sales.

3.3 kw charger senku obc charger

3.3kw on board charger 500V 600V 700V

Lithium Lifepo4 Lead-acid Battery 3.3 kw charger 132V

Application of 6KW 84V Lithium Battery Charger

The application of electric vehicle on-board chargers is very extensive, including personal electric vehicles such as cars, trucks, and motorcycles, as well as public transportation vehicles such as electric buses and trains. The industrial applications of electric vehicle on-board chargers include charging electric forklifts, golf carts, and other industrial vehicles. Overall, electric vehicle on-board chargers are a key component of the constantly evolving electric vehicle industry and will continue to play an important role in future transportation.

3.3 kw charger 48V
