> AC / DC On Board Charger

1.2KW 48V AC to DC On-Board Chargers

Input Voltage: 90～265VAC /8A
Rated Power: 1.2KW
Output voltage: 0～68VDC
Output current: 0～30A
Product description: The application of the 1.2KW ev charger on board is extensive and diverse. They are widely used in personal electric vehicles, commercial fleets, and public transportation systems. They are also commo
Inquiry

Product introduction

Part No	Input Voltage Range	Rated Output Power	Rated Output Range	Output Voltage Range	Output Current Range
SK-L048V1200	90～265VAC	1.2KW	48V DC	0～68VDC	0～30A

High Lights of 1.2KW EV Charger on board

√ IP67 Level
√ Fan cooling
√CAN communication
√ Constant power and constant voltage state automatic conversion, effective saving time
√ Compact and lightweight design for ease of installation.

√ Input over-voltage/under-voltage protection

√ Output over-voltage/under-voltage protection

√ Output over-current protection

√ Output reverse connection protection

√ Over temperature protection

Basic Data

Specification	Model	SK-LXXXV1200 (SK-L048V1200)
AC Input	Phases/ Lines	1-phase;Single Phase
	Input Voltage /Current	95V - 265V AC /≤8A
	Frequency	45Hz-65Hz
DC Output	Output Power	1.2KW @ 220VAC
	Output Voltage	0～68VDC (Rated 48V)
	Output Current	0～60A
Others	Operating noise	≤60dB
	CAN BUS	Support (Baud Rate 125Kbps、250Kbps、500Kbps optional)
	Cooling Method	Fan Cooling
	Dimension	328260112
	IP Level	IP 67 (not including fans)

More specification of this 1.2KW 48V EV Charger On Board, please contact our sales.

Application of 1.2KW 48V EV Charger On Board

The application of the 1.2KW 48V EV Charger On Board is extensive and diverse. They are widely used in personal electric vehicles, commercial fleets, and public transportation systems. They are also commonly used in emergency services, where fast charging is crucial for maintaining critical operations. In addition, car chargers are an indispensable part of household electric vehicle charging stations, allowing electric vehicle owners to easily and conveniently charge their vehicles at night.

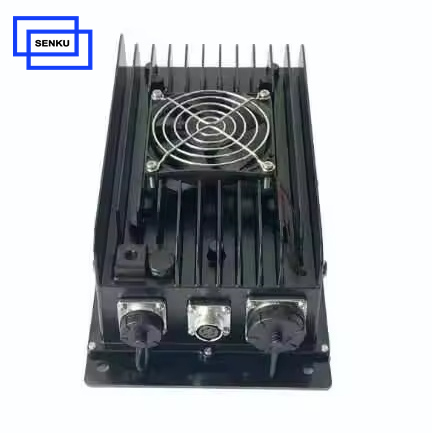

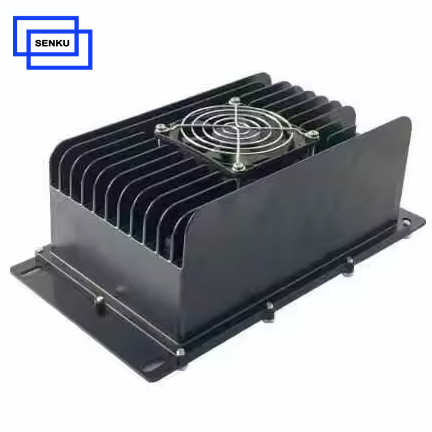

senku 1.2KW 48V EV Charger On Board
