> AC / DC On Board Charger

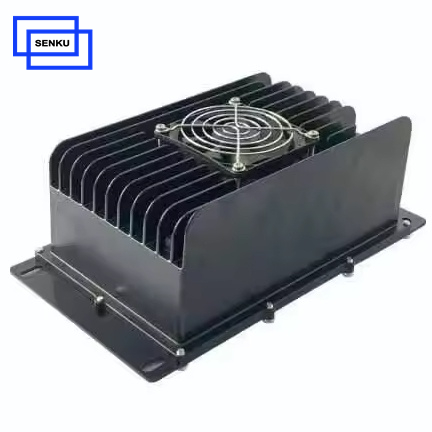

1.2KW 72V AC to DC On-Board Chargers
- Input Voltage: 90～265VAC /8A
- Rated Power: 1.2KW
- Output voltage: 0～95VDC
- Output current: 0～20A
- Product description: The 1.2KW 72v on board charger has been designed and optimized to maintain strong performance in harsh tropical conditions. The battery charger integrates an AC to DC converter inside the cabinet, all
Product introduction
| Part No | Input Voltage Range |
Rated Output Power |
Rated Output Voltage | Output Voltage Range | Output Current Range |
| SK-L072V1200 | 90～265VAC | 1.2KW | 72V DC | 0～95VDC |
0～20A |
Introduction of 1.2KW 72V On Board Charger
The 1.2KW 72v on board charger has been designed and optimized to maintain strong performance in harsh tropical conditions. The battery charger integrates an AC to DC converter inside the cabinet, allowing the vehicle to be charged directly through the AC grid input.The battery charger output side is connected to the electric vehicle battery pack and operates in accordance with CAN information (current, voltage, and charging requirements) from the electric vehicle BMS.
(Tip: The 1.2KW 72v on board charger can also work without CAN)
Basic Data of 1.2KW 72V On Board Charger
| Specification | Model | SK-LXXXV1200 (SK-L072V1200) |
| AC Input | Phases/ Lines | 1-phase;Single Phase |
| Input Voltage /Current | 95V - 265V AC /≤8A | |
| Frequency | 45Hz-65Hz | |
|
DC Output |
Output Power |
1.2KW @ 220VAC |
|
Output Voltage |
0～95VDC (Rated 72V) |
|
|
Output Current |
0～20A |
|
|
Others |
Operating noise | ≤60dB |
|
CAN BUS |
Support (Baud Rate 125Kbps、250Kbps、500Kbps optional) | |
| Cooling Method | Fan Cooling | |
| Dimension |
277*165*99mm |
|
| IP Level | IP 67 |
More specification of this 1.2KW 72V On Board Charger, please contact our sales.
1.2KW 72V On Board Chargers are the key to maintaining power supply for electric vehicles. They obtain AC power from driver's house and convert it into DC to charge the battery.
Application of the 1.2KW 72V On Board Charger
Car chargers can be used for various electric vehicles (including plug-in hybrid vehicles), ships, or devices that require AC to DC charging.
Personal electric vehicle: used to charge electric vehicles, trucks, and motorcycles.
Public transportation: used to charge electric buses and trains.
Industrial applications: used to charge electric forklifts, golf carts, and other industrial vehicles
