> AC / DC On Board Charger

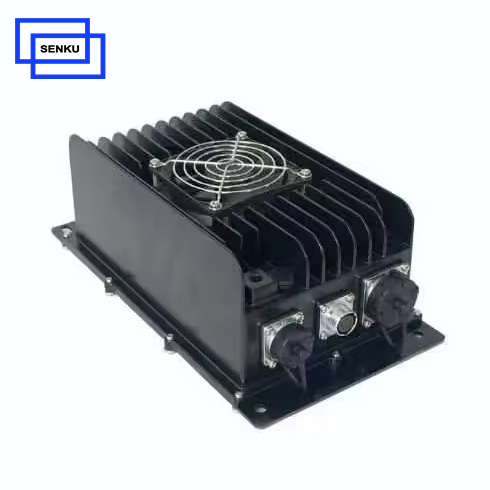

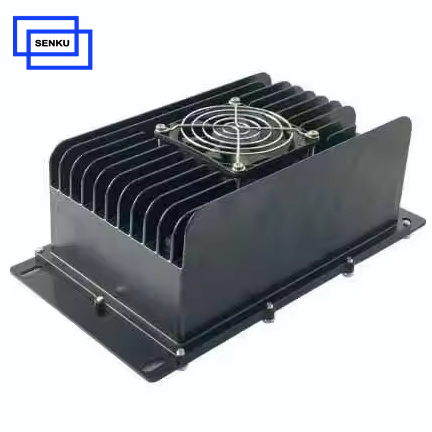

1.2KW 108V AC to DC On-Board Chargers

Input Voltage: 90～265VAC /8A
Rated Power: 1.2KW
Output voltage: 0～130VDC
Output current: 0～13A
Product description: The 1.2KW ac on board charger application is very extensive, including cars, trucks, and motorcycles, as well as public transportation vehicles such as electric buses and trains. The industrial applic
Inquiry

Product introduction

Part No	Input Voltage Range	Rated Output Power	Rated Output Voltage	Output Voltage Range	Output Current Range
SK-L108V1020	90～265VAC	1.2KW	108V DC	0～130VDC	0～13A

SK-L series 1.2KW ac on board charge is an efficient power electronic product used for converting AC to DC charging. it has excellent cost-effectiveness through advanced components and compact system design. This 1.2KW ac on board charger is easy to integrate into existing infrastructure; The parallel charging mode can flexibly increase the charging power.

Basic Data

Specification	Model	SK-LXXXV1200 (SK-L108V1200)
AC Input	Phases/ Lines	1-phase;Single Phase
	Input Voltage /Current	95V - 265V AC /≤8A
	Frequency	45Hz-65Hz
DC Output	Output Power	1.2KW @ 220VAC
	Output Voltage	0～130VDC (Rated 108V)
	Output Current	0～13A
Others	Operating noise	≤60dB
	CAN BUS	Support (Baud Rate 125Kbps、250Kbps、500Kbps optional)
	Cooling Method	Fan Cooling
	Dimension	27716599mm
	IP Level	IP 67

More specification of this 1.2KW ac on board charge, please contact our sales.

1.2KW ac on board charge senku obc charger

3.3kw on board charger 500V 600V 700V

Lithium Lifepo4 Lead-acid Battery 3.3 kw charger 132V

Application of 1.2KW AC On Board Charge

The application of electric vehicle on-board chargers is very extensive, including personal electric vehicles such as cars, trucks, and motorcycles, as well as public transportation vehicles such as electric buses and trains. The industrial applications of electric vehicle on-board chargers include charging electric forklifts, golf carts, and other industrial vehicles. Overall, electric vehicle on-board chargers are a key component of the constantly evolving electric vehicle industry and will continue to play an important role in future transportation.
