> AC / DC On Board Charger

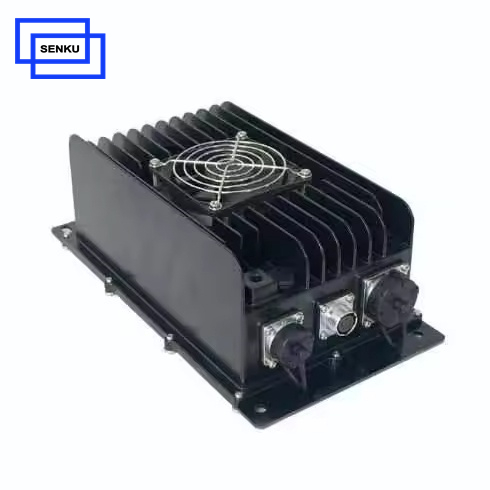

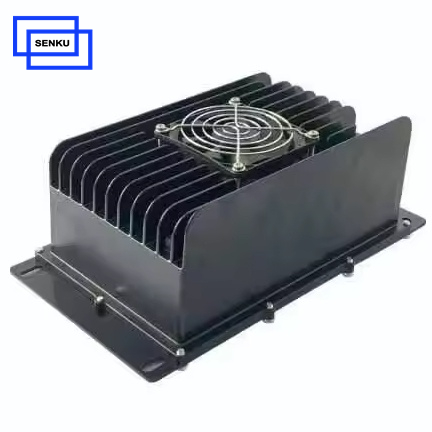

2KW Series AC to DC EV OBC Charger

Input Voltage: 90～265VAC /10A
Rated Power: 2KW
Output voltage: Subject to Battery Voltage
IP Level: IP 67
Product description: 2KW On Board Charger s are widely usedin electric cars, trucks, and motorcycles, as well as public transportation vehicles such as electric buses and trains. The industrial applications of 2KW On Boar
Inquiry

Product introduction

Model list of 2KW SK-LXXXV2000 Series On Board Charger

Rated Output	Output Voltage Range	Output Current Range	Charger Model	*Dimension (LWH)*
24V DC 50A	0～36V DC	0～60A	SK-L024V2000	27716599mm
60V DC 35A	0～80V DC	0～35A	SK-L060V2000	27716599mm
80V DC 25A	0～105V DC	0～25A	SK-L080V2000	27716599mm
108V DC 18A	0～135V DC	0～18A	SK-L108V2000	27716599mm
144V DC 13A	0～180V DC	0～13A	SK-L144V2000	27716599mm
360V DC 6A	0～450V DC	0～6A	SK-L360V2000	27716599mm

More specification of this 2KW On Board Charger, please contact our sales.

Application of 2KW On Board Charger

On-board charger (OBC) is a kind of power electronic equipment in electric cars, which converts AC power from external power source (such as residential socket or AC charging station) into DC power to charge vehicle battery pack.

The 2KW on board charger applications of an electric vehicle onboard charger are widespread and include personal electric vehicles like cars, trucks, and motorcycles, as well as public transportation like electric buses and trains. Industrial applications for electric vehicle onboard chargers include charging electric forklifts, golf carts, and other industrial vehicles. Overall, electric vehicle onboard chargers are a critical component in the growing electric vehicle industry and will continue to play a significant role in the future of transportation.
