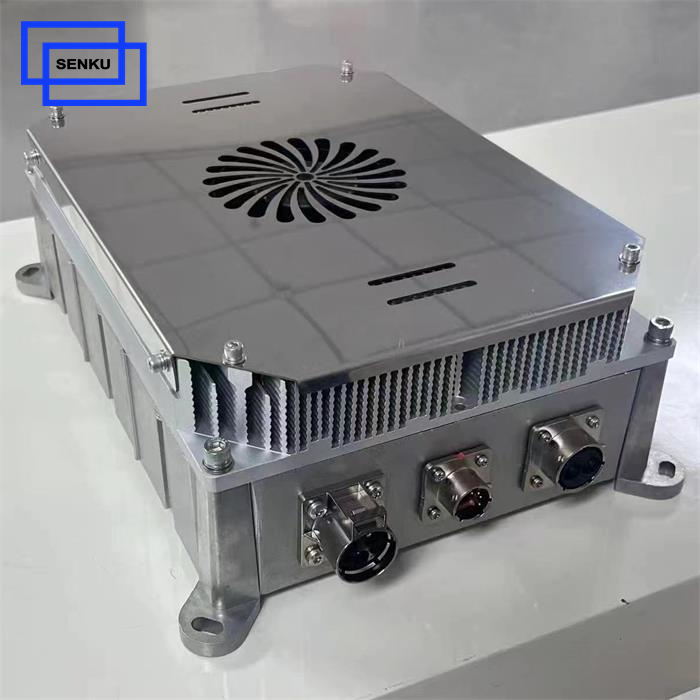

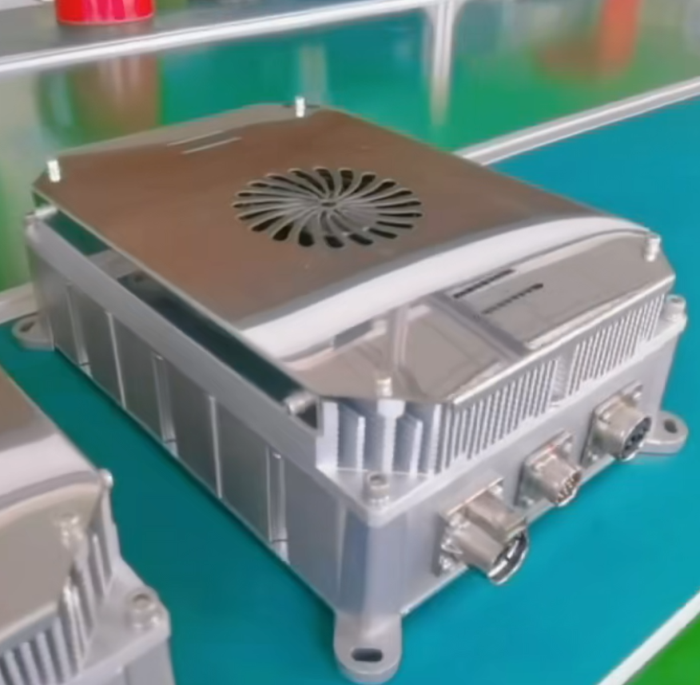

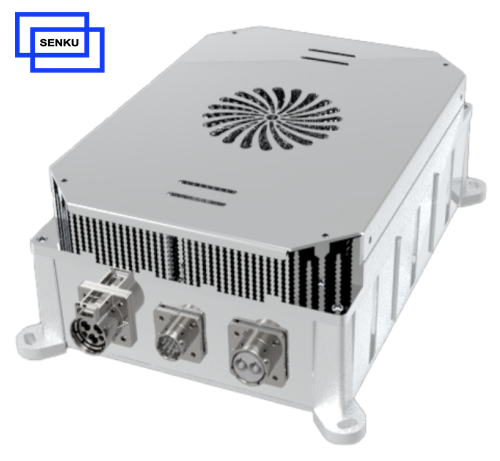

> AC / DC On Board Charger

Input Voltage: 95V-265V AC /32A
Rated Power: 6.6KW
Output voltage: 0～700V DC
Output current: 0～12A
Product description: 6.6KW electric vehicles on board charger, with high-quality structure and stable performance. It is typically designed to withstand harsh weather conditions, with a protection level of IP67, and can
Inquiry

Part No	Input Voltage Range	Rated Output Power	Rated Output Voltage	Output Voltage Range	Output Current Range
SK-L540V6600	90～265VAC	6.6KW	540V DC	0～700VDC	0～12A

√ AC to DC Conversion: converts AC power from a charging station into DC power that can be used to charge the vehicle's batteries.

√ Excellent cost-effectiveness ratio: By combining cutting-edge components into a compact design.

√ Constant power and constant voltage state automatic conversion, effective saving time

√ Compact and lightweight design for ease of installation.

√ Fan cooling

√CAN communication

√ IP67 protection

Specification	Model	SK-LXXXV6600 (SK-L540V6600)
AC Input	Phases/ Lines	1-phase;Single Phase
	Input Voltage /Current	95V - 265V AC /≤32A
	Frequency	45Hz-65Hz
DC Output	Output Power	6.6KW @ 220VAC
	Output Voltage	0～540VDC (Rated 360V)
	Output Current	0～12A
Others	Operating noise	≤60dB
	CAN BUS	Support (Baud Rate 125Kbps、250Kbps、500Kbps optional)
	Cooling Method	Fan Cooling
	Dimension	302211113mm
	IP Level	IP 67
