> AC / DC On Board Charger

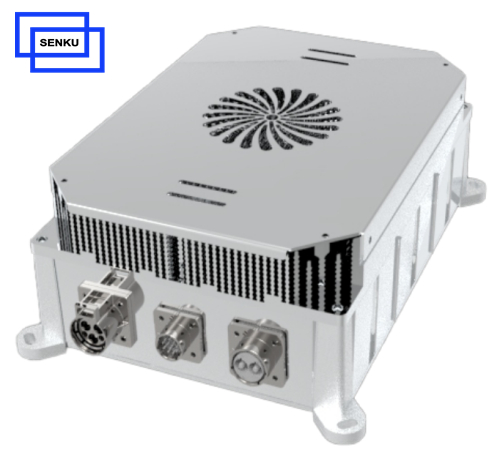

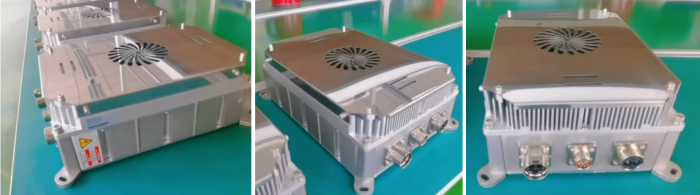

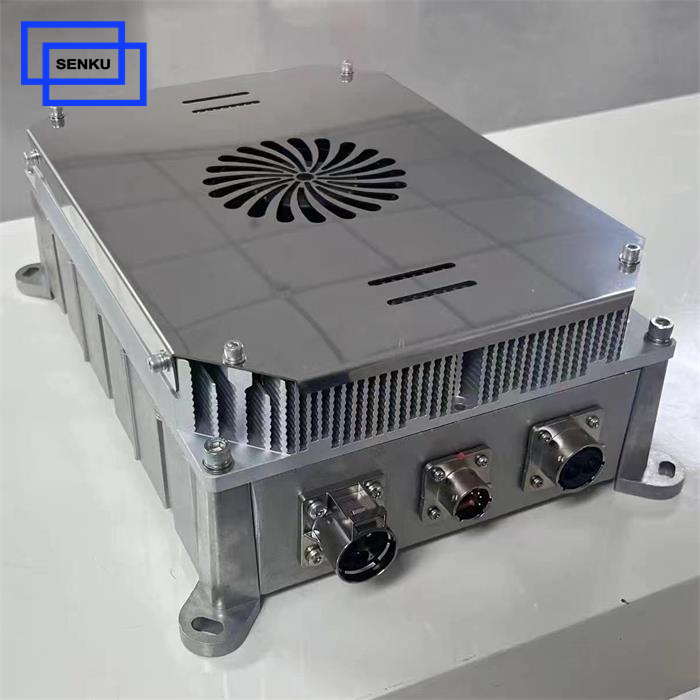

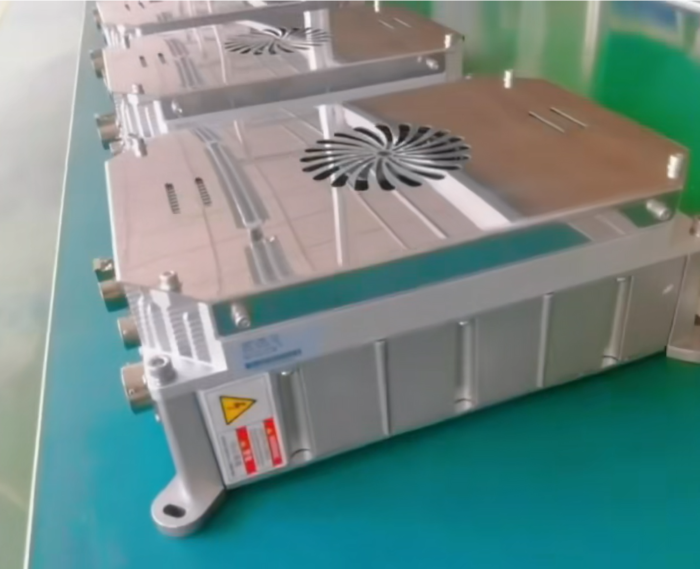

NEW 6.6KW Series EV OBC Charger
- Input Voltage: 90～265VAC /32A
- Rated Power: 6.6KW
- Output voltage: Subject to Battery Voltage
- IP Level: IP 67
- Product description: 6.6 kw on board chargers are widely used in electric cars, trucks, and motorcycles, as well as public transportation vehicles such as electric buses and trains. The industrial applications of 6.6 kw o
Product introduction
Model list of 6.6KW SK-LXXXV6600 Series 6.6KW On Board Charger
Rated Output
Output Voltage Range
Output Current Range
Charger Model
Dimension (L*W*H)
80V DC 90A
0～105V DC
0～80A
SK-L080V6600
302*211*113mm
108V DC 60A
0～135V DC
0～60A
SK-L108V6600
302*211*113mm
144V DC 44A
0～180V DC
0～44A
SK-L144V6600
302*211*113mm
360V DC 18A
0～500V DC
0～18A
SK-L360V6600
302*211*113mm
540V DC 12A
0～700V DC
0～12A
SK-L540V6600
302*211*113mm
700V DC 12A
0～850V DC
0～9A
SK-L700V6600
302*211*113mm
More specification of this 6.6KW On Board Charger, please contact our sales.
Youtube video Link for this 6.6KW On Board Charger
Application of 6.6 KW 6.6KW On Board Charger
On-board charger (OBC) is a kind of power electronic equipment in electric cars, which converts AC power from external power source (such as residential socket or AC charging station) into DC power to charge vehicle battery pack.
The 6.6KW OBC Charger applications of an electric vehicle onboard charger are widespread and include personal electric vehicles like cars, trucks, and motorcycles, as well as public transportation like electric buses and trains. Industrial applications for electric vehicle onboard chargers include charging electric forklifts, golf carts, and other industrial vehicles. Overall, electric vehicle onboard chargers are a critical component in the growing electric vehicle industry and will continue to play a significant role in the future of transportation.
More onboard chargers for reference
