> AC / DC On Board Charger

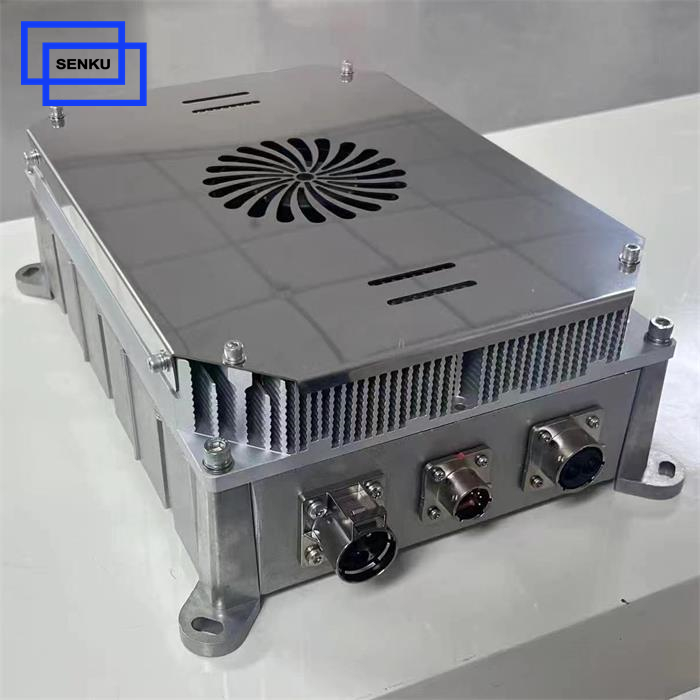

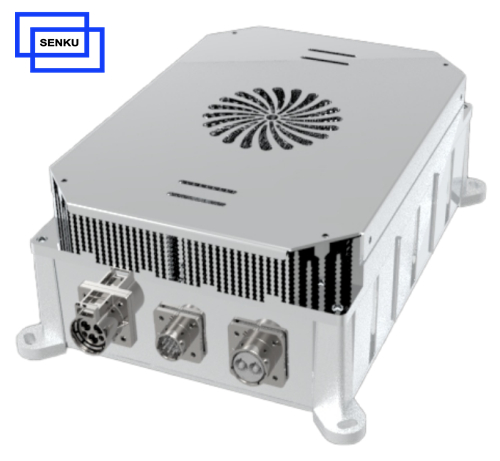

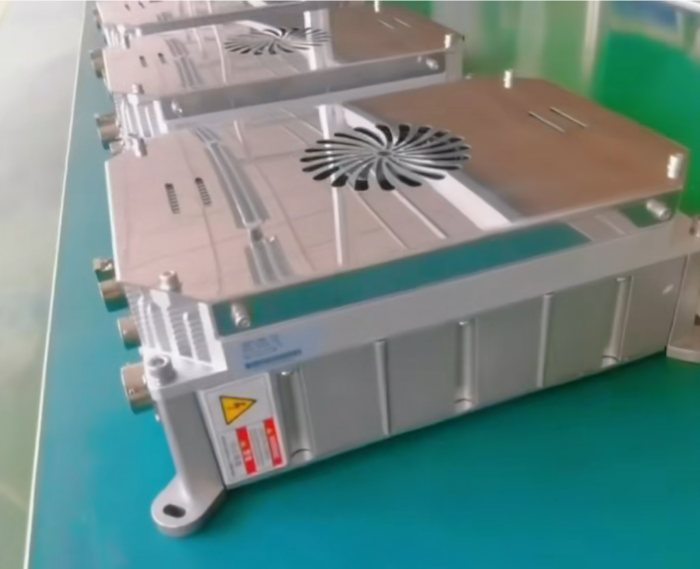

6.6KW 700V 850V On Board Charger

Input Voltage: 90～265VAC /32A
Rated Power: 6.6KW
Output voltage: 0～850V DC
Output current: 0～9A
Product description: 6.6kw ev on board charger applications of an electric vehicle onboard charger are widespread and include personal electric vehicles like cars, trucks, and motorcycles, as well as public transportation
Inquiry

Product introduction

Part No	Input Voltage Range	Rated Output Power	Rated Output Range	Output Voltage Range	Output Current Range
SK-L700V6600	90～265VAC	6.6KW	700V DC	0～850VDC	0～9A

electric buses boat and trains 700V 850V 6.6kw ev on board charger

Basic Data of 6.6kw ev on board charger

Specification	Model	SK-LXXXV3300 (SK-L700V6600)
AC Input	Phases/ Lines	1-phase;Single Phase
	Input Voltage /Current	95V - 265V AC /≤3A2
	Frequency	45Hz-65Hz
DC Output	Output Power	6.6KW @ 220VAC
	Output Voltage	0～850VDC (Rated 700V)
	Output Current	0～9A
Others	Operating noise	≤60dB
	CAN BUS	Support (Baud Rate 125Kbps、250Kbps、500Kbps optional)
	Cooling Method	Fan Cooling
	Dimension	302211113mm
	IP Level	IP 67

More specification of this 6.6kw ev on board charger, please contact our sales.

Youtube video Link for this 6.6kw ev on board charger

https://youtu.be/QR1dOSEmzIM

Application of 6.6kw ev on board charger

On-board charger (OBC) is a kind of power electronic equipment in electric cars, which converts AC power from external power source (such as residential socket or AC charging station) into DC power to charge vehicle battery pack.

The 6.6kw ev on board charger applications of an electric vehicle onboard charger are widespread and include personal electric vehicles like cars, trucks, and motorcycles, as well as public transportation like electric buses and trains. Industrial applications for electric vehicle onboard chargers include charging electric forklifts, golf carts, and other industrial vehicles. Overall, electric vehicle onboard chargers are a critical component in the growing electric vehicle industry and will continue to play a significant role in the future of transportation.

302*211*113mm
