> EV Charging Station Power Module

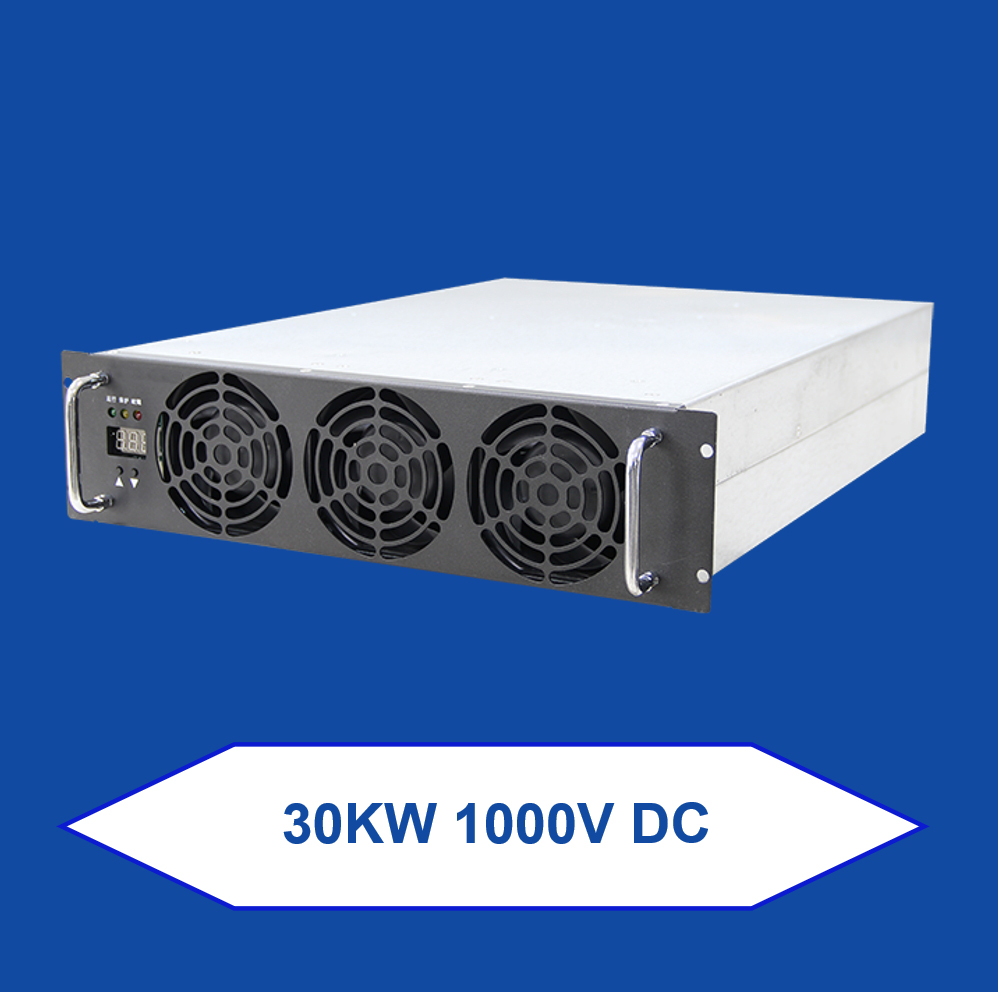

30KW AC to DC Charger Power Module

Input Rating3phase, 285~475VAC, rated voltage 380V AC
Output Current: 2~120A
Output Volatge: 150-1000V DC
Total Power：30KW
Product description: This 30kw AC to DC Charger Power Module is special design for the electric vehicle fast charging DC charger use; This 30KW rectifier with 200~1000V DC wide range output, can charge various different e
Inquiry

Product introduction

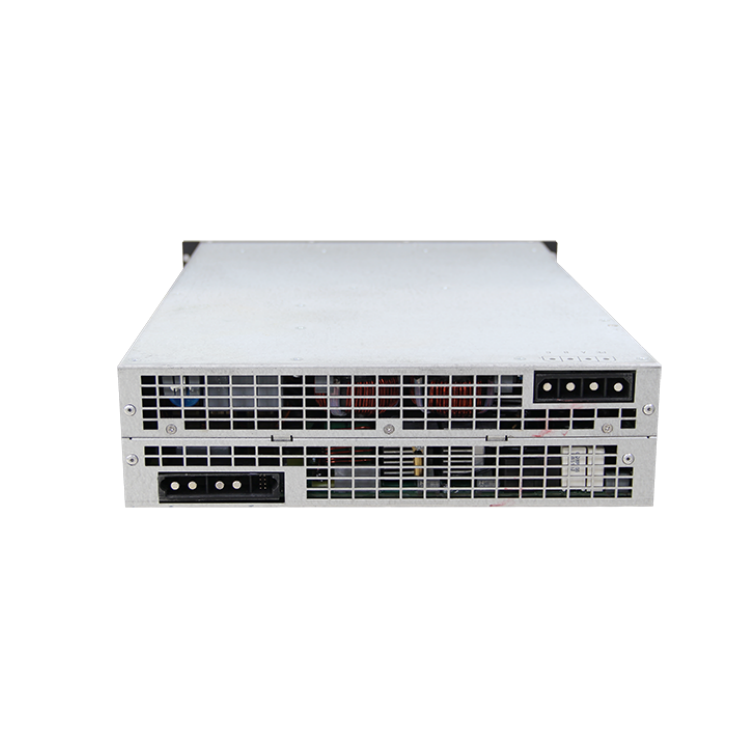

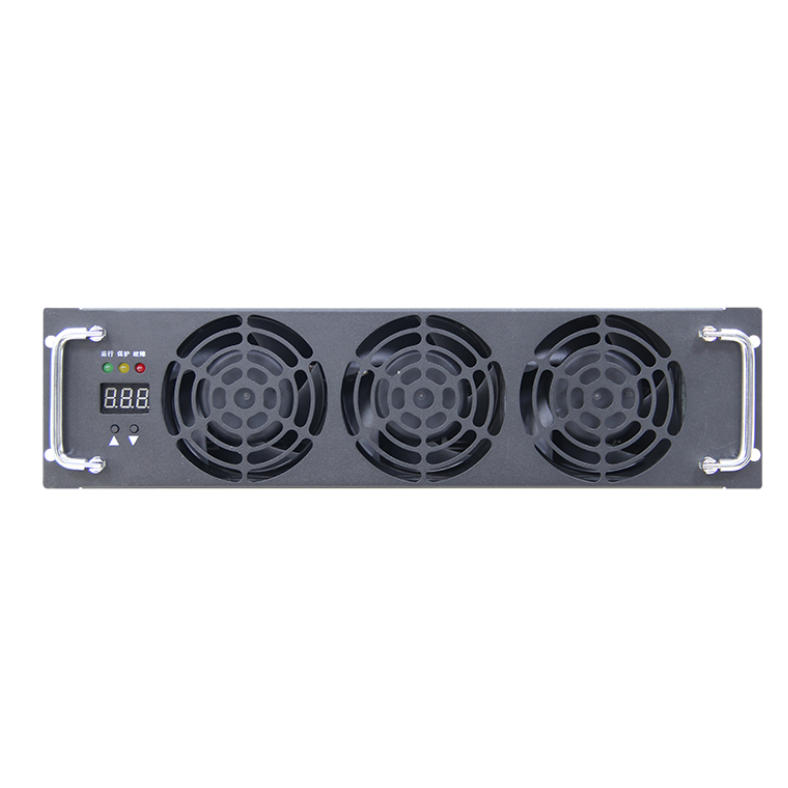

30KW AC to DC Charger Power Module

This 30kw AC to DC Charger Power Module is special design for the electric vehicle fast charging DC charger use; This 30KW rectifier with 200~1000V DC wide range output, can charge various different electric vehicles.

Model	SENKU-30KW 1000V AC TTO DC POWER MODULE (SK-30K1000)
Input features
Operating Voltage（AC）	285~475VAC，rated voltage380V AC
Input Frequency（HZ）	45~55 Hz
Power Factor	Full load≥0.99
THD	Full load≤5%
Output Feature
Output Voltage Range（DC）	150~1000 V DC
Output constant power voltage range	250~500VDC，500~1000VDC
Max output current（A）	120A
Output current limit range	Max limit current is120A ，limit current point can be set between 2~120A
Voltage Stabilization Accuracy	≤±0.5%
Current Stabilization Accuracy	≤±1%（load current is in the range of 20%~100%）
Peak efficiency	≥95.5%
Communication Protocol	CAN
Protections
Input over-voltage protection, Input over-voltage recovery, Input under-voltage protection, Input under-voltage recovery, Fan fault, Phase absence protection, Output short-circuit protection , Output over-current protection, Output over-voltage protection
Certification	CE

30KW DC Charger Module Features

 Input voltage range（AC）:285~475V
 Output adjustable voltage range（DC）:150~1000V
 Operating temperature range:-30~+75℃
 Max efficiency:≥95.5%
 High power factor: Full load≥0.99
 THD: full load≤5%
 Standby power consumption:<12W
 Output constant function：Output 1000-250VDC constant 30KW
 Digital technology，Current Sharing Imbalance for modules parallel＜±5%
 CAN bus communication

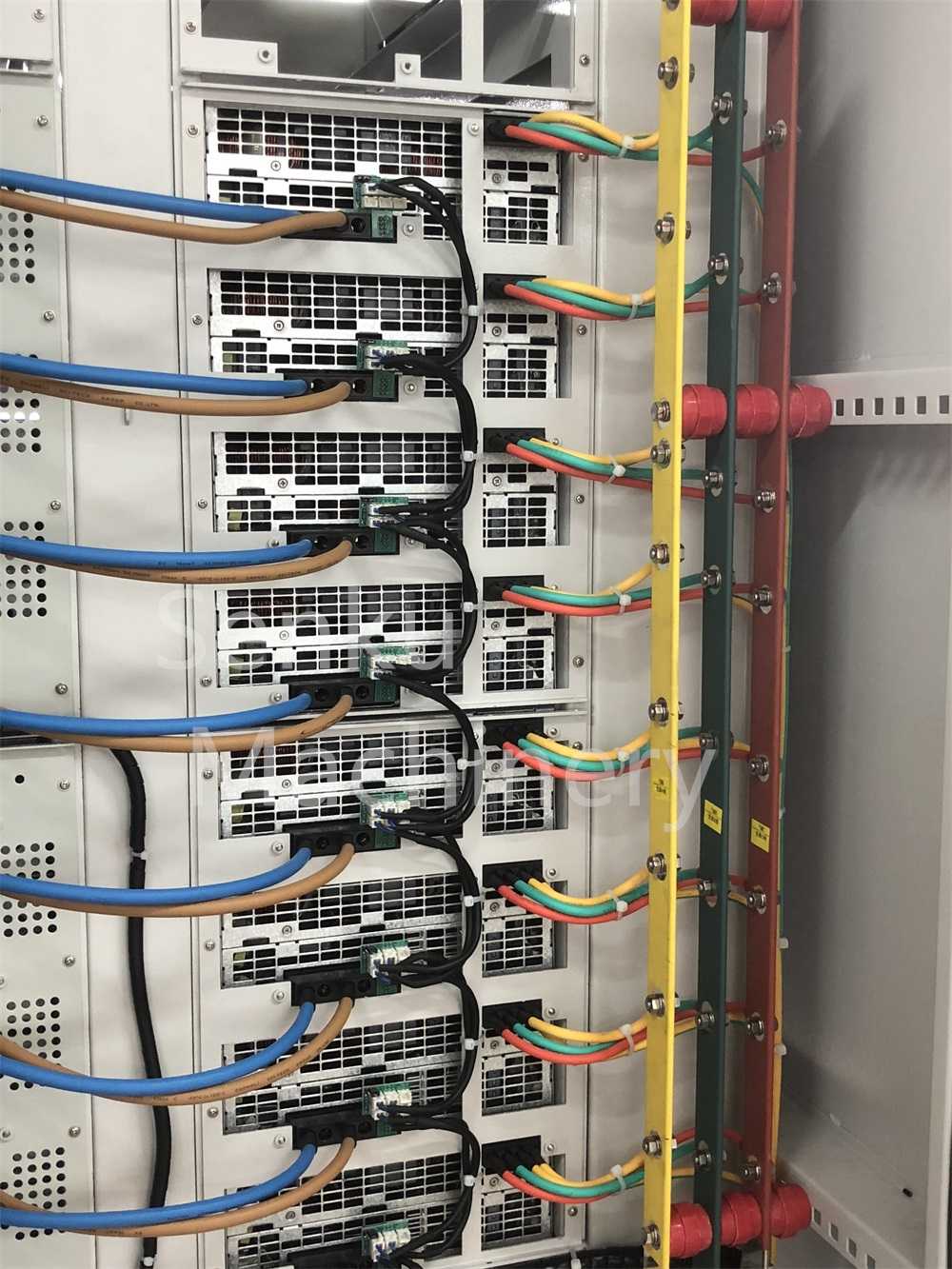

 Quick plug and install
 Short circuit without damage10
 Intelligent fan speed control

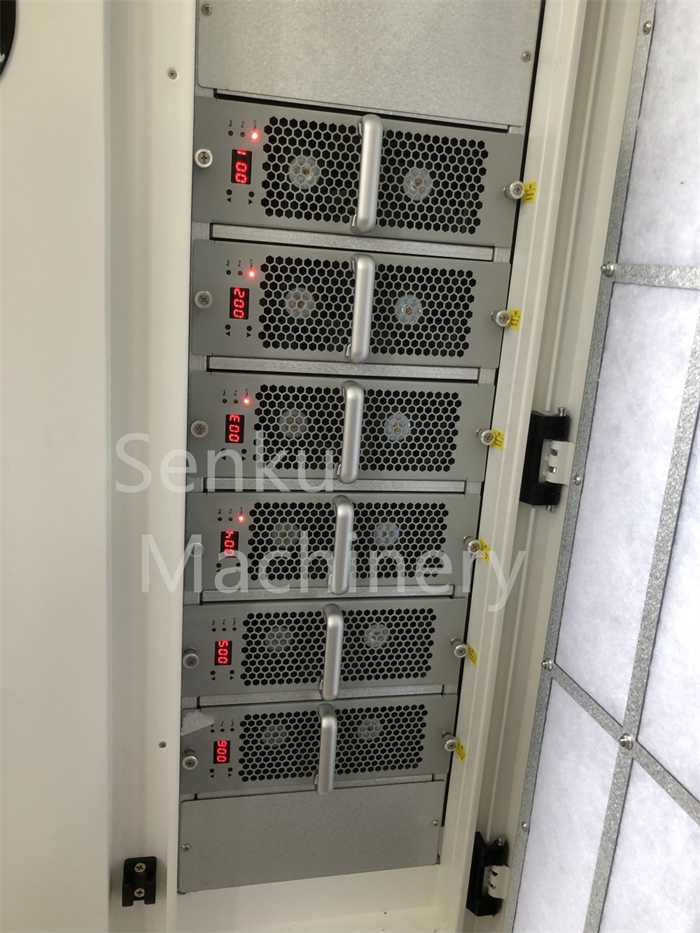

 Support parallel voltage regulation and current regulation function
 With perfect protection function
 Input over, under voltage protection, input over current protection, phase loss protection
 Output overvoltage protection, current limit protection
 Output anti-backflow
 Ambient temperature detection and protection
 Group current sharing function
