> EV Charging Station Power Module

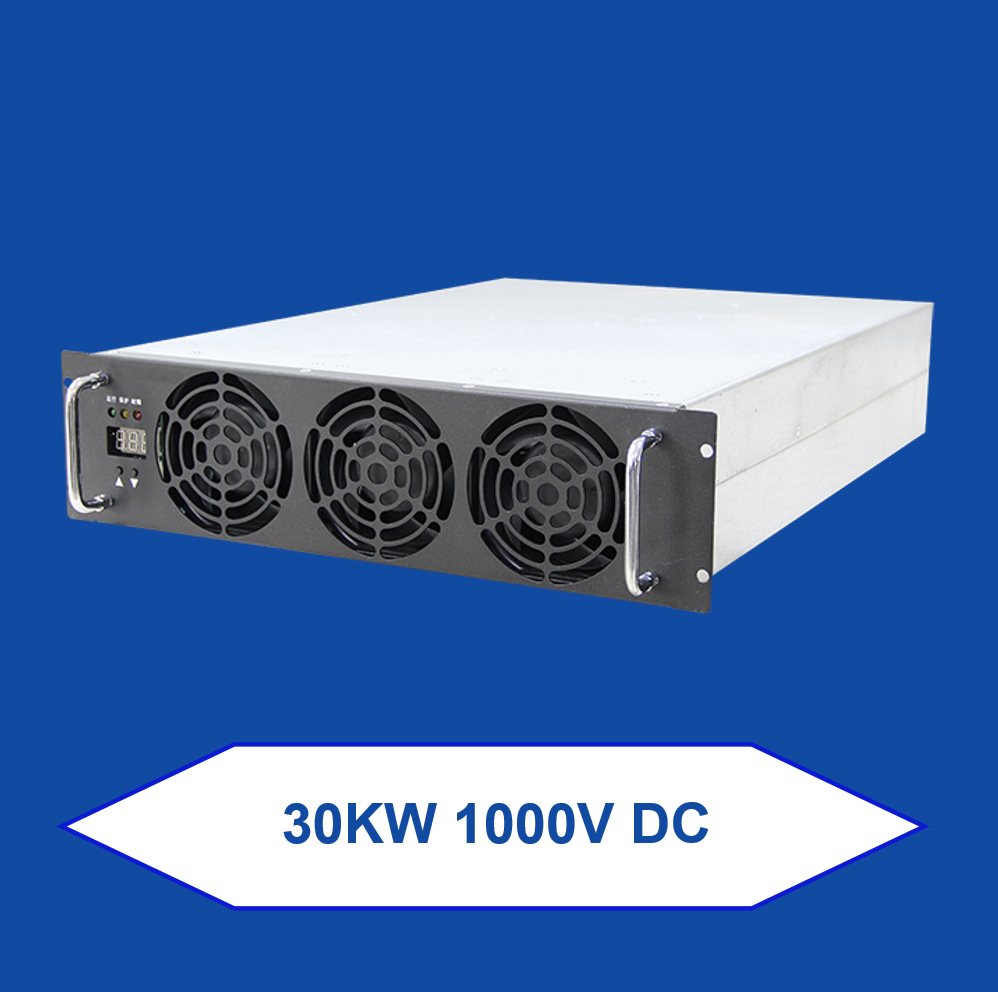

EV Charger AC to DC 30KW Power Module

Input Rating：3phase 285~475V，rated voltage380V AC
Output Current: 2~120A
Output Volatge: 150-1000V DC
Total Power：30KW
Product description: This 30kw power module is an efficient, high power density AC/DC module specially developed for the DC Charging EV Charger of electric vehicles. This product is a three-phase four wire system (three-p
Inquiry

Product introduction

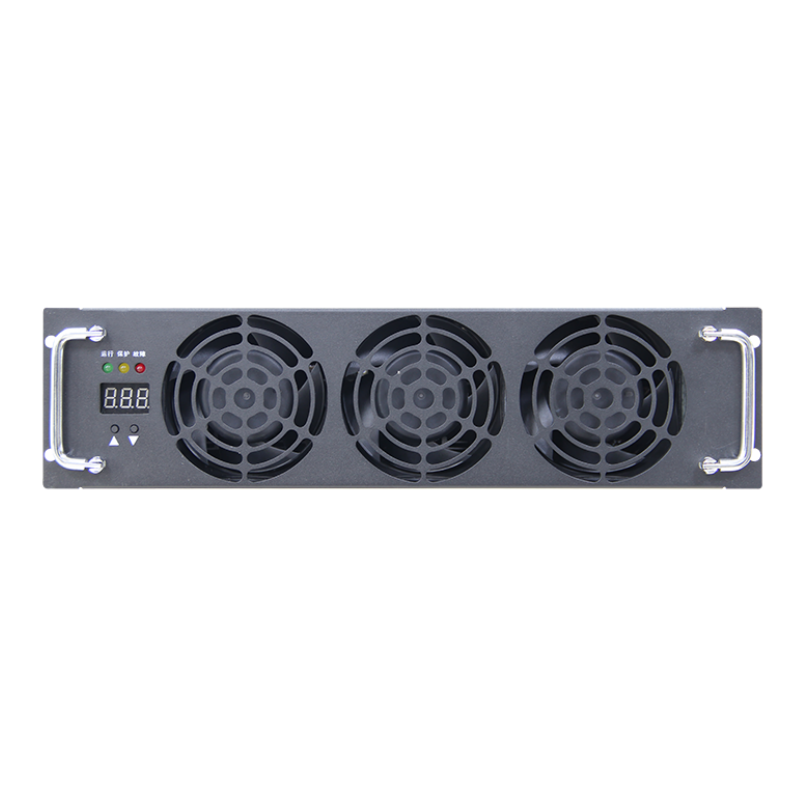

EV Charger AC to DC 30KW Power Module

This 30kw power module is an efficient, high power density AC/DC module specially developed for the DC Charging EV Charger of electric vehicles. This product is a three-phase four wire system (three-phase+PE) input, which supports a wide input range of 285VAC-475VAC; The maximum output power is 30KW (constant power output range 250-1000VDC). The 30KW charging module communicates with the main monitoring of the EV Charger through the CAN bus.

Model	SENKU-30KW 1000V AC TTO DC POWER MODULE (SK-30K1000)
Input features
Operating Voltage（AC）	285~475V，rated voltage380V AC
Input Frequency（HZ）	45~55 Hz
Power Factor	Full load≥0.99
THD	Full load≤5%
Output Feature
Output Voltage Range（DC）	150~1000 V DC
Output constant power voltage range	250~500VDC，500~1000VDC
Max output current（A）	120A
Output current limit range	Max limit current is120A ，limit current point can be set between 2~120A
Voltage Stabilization Accuracy	≤±0.5%
Current Stabilization Accuracy	≤±1%（load current is in the range of 20%~100%）
Peak efficiency	≥95.5%
Communication Protocol	CAN
Protections
Input over-voltage protection, Input over-voltage recovery, Input under-voltage protection, Input under-voltage recovery, Fan fault, Phase absence protection, Output short-circuit protection , Output over-current protection, Output over-voltage protection
Certification	CE
