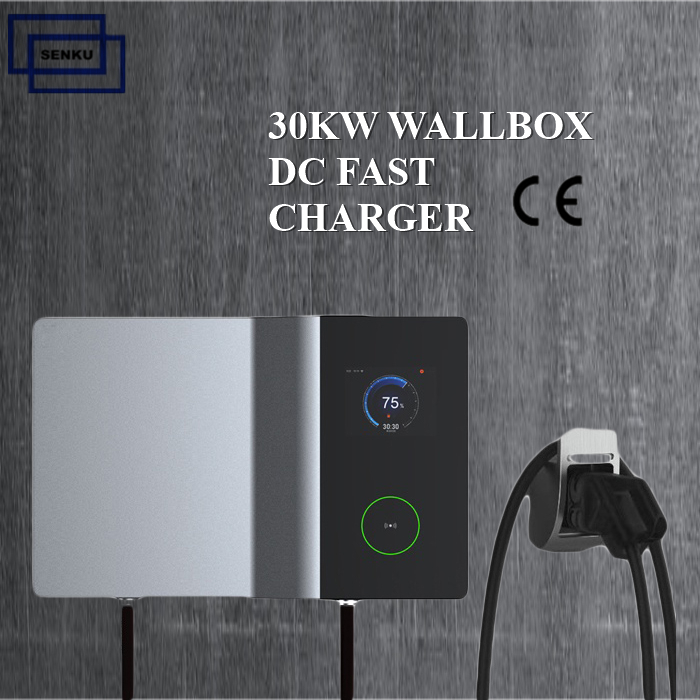

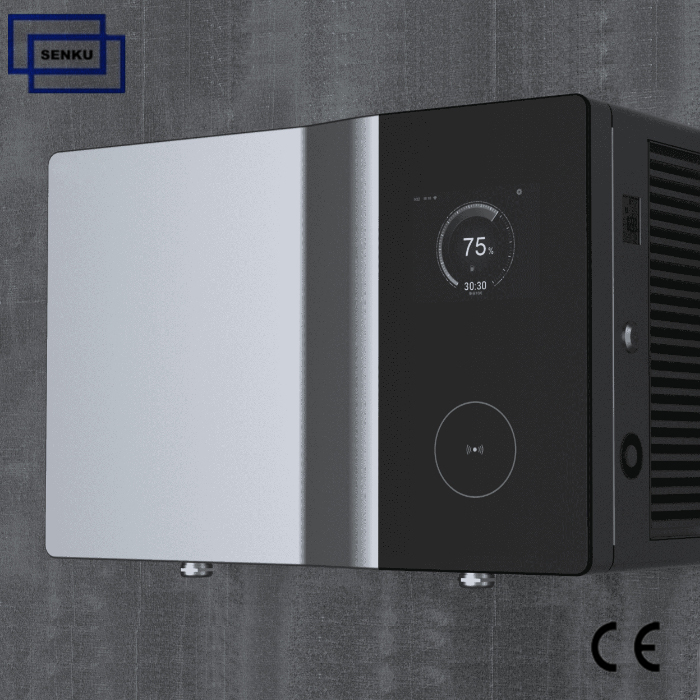

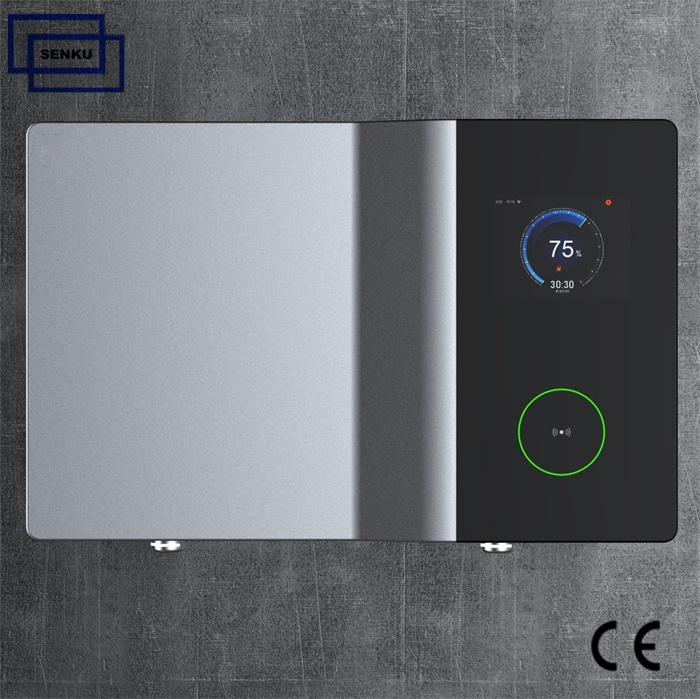

Public 30KW DC Wallbox Ev Charging Station

Specification

Model

S30K500C-V2

AC Nominal Input

Phases/ Lines

3-phase  (without neutral supported)

Input Voltage

380/400Vac±10%

Frequency

50Hz-60Hz

DC Nominal Output

DC Voltage Accuracy

<±0.5

Output Voltage/Current

30KW 50~550V DC@0~63A

Output Efficiency

>94% (Rated input and output)

Electrical

Specification

LED Indicator

Yes

LCD Touch Screen

Colorful 7" Touch screen

Emergency Stop Button

Yes (Red Color)

RFID Function

Yes (Authorized RFID cards can charged only)

RFID Card Quantity

2pcs Mifare card

Smart Phone APP

Yes (Support use the smart phone to charge and make payment)

Energy Meter

DC energy meter (meet Germany Calibration act standard)

Structure Design

Housing Material

Metal case

Installation Method

Wall-mount / Floor-stand

Application scenes

Commercial / Public charging

Charging Outlet

CCS2

Charging Outlet Quantity

1

Cable Length

4M cable

Communication

Network Method

Wifi; Ethernet; 4G

Communication Protocol

PLC

OCPP 1.6 JSON ( Charger with ocpp board inside)

Environmental

Index

Operating Temperature

-30~+50°C

Working Humidity

5%~95% without condensation

Working Altitude

<2000M

Protection Grade

IP54 / IK10

Application Site

Indoor/Outdoor

Cooling Method

Fan cooling

Security Protection

Multi le Protection

Over current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Over temperature,Ground fault, Isolation fault Protection

MTBF

100,000 hours

Certificate Compliance

CE

Warranty

1 years

Dimension

Dimension & Weight

680*440*240 mm & 40KG

(weight without  charging module)

Optional Parts

Install

Floor-stand Pile
