> V2X Charger

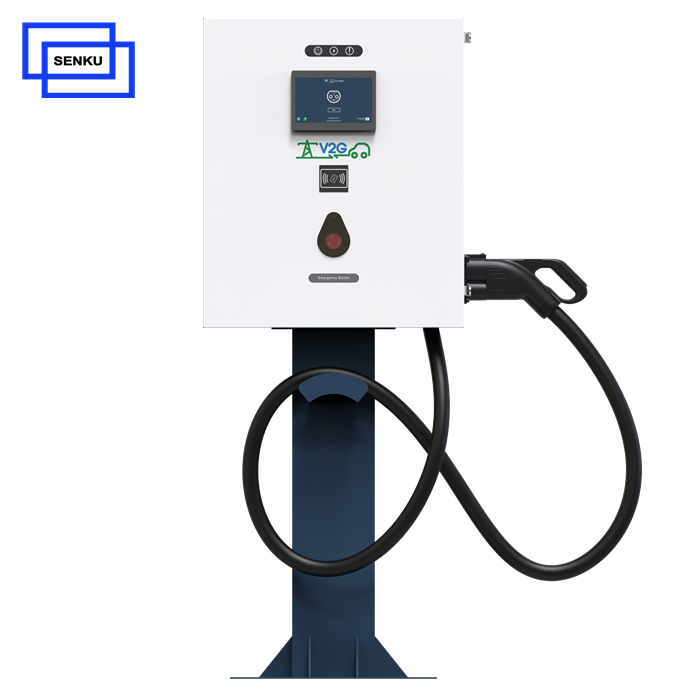

V2G Bidirectional 15KW 22KW Vehicle To Grid EV Charger

Rated Voltage: 400V AC±15%, 3phase,
Output voltage:200-1000V DC
Output Power:15KW /22KW
IP Level: 54
Product description:
Inquiry

Product introduction

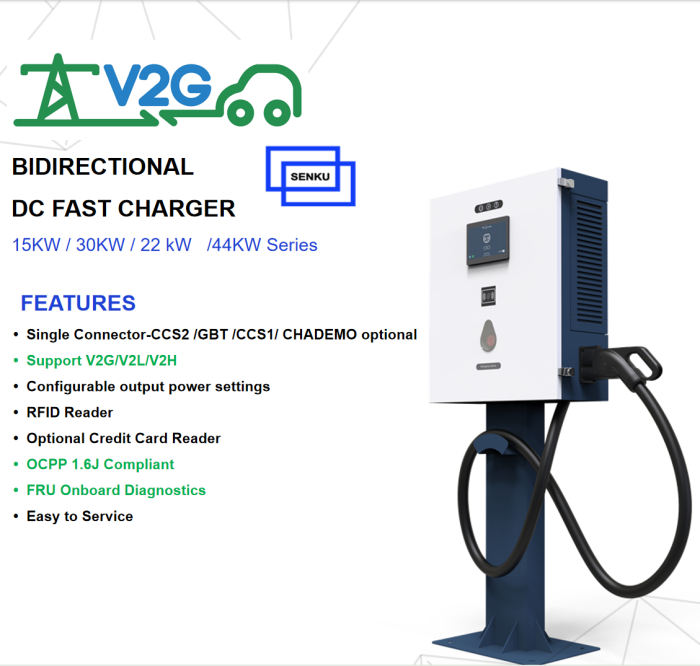

15KW 22KW CCS CHADEMO GBT Vehicle To Grid V2G EV Charger - manufacturers, suppliers

Specification	Product	15KW 22KW CCS CHADEMO GBT Vehicle To Grid V2G EV Charger
Charging Mode	Rated Power	15KW	22KW
	AC input voltage	260 Vac~530 Vac, rated 380 Vac; 45Hz~65Hz	260 Vac~530 Vac, rated 380 Vac; 45Hz~65Hz
	AC input Current	0 ~ 28A	0 ~ 43A
	Power factor	≥0.99 (full load output)	≥0.99 (full load output)
	DC output voltage	150V dc-750V dc	150Vdc - 1000Vdc
	DC output current	0 ~ 50A	0 ~ 73.3A
	Output efficiency	>95%	>95%
	DC input voltage	300Vdc-750Vdc; 15kW constant power output	300Vdc-1000Vdc; 22kW constant power output
	DC input current	50A Maximum	73.3A Maximum
Discharging Mode	AC output voltage	15kW constant power output at 260Vac~485Vac; 320Vac~485Vac	22kW constant power output at 260Vac~530Vac; 320Vac~530Vac
	AC output current	15KW / 20A	22kW / 33.3A
	Frequency	50Hz/60Hz	50Hz/60Hz
	Output power factor	Can be set, setting range is 0.8~1, -0.8~-1	Can be set, setting range is 0.8~1, -0.8~-1
	Output efficiency	>95%	>95%
Others	Protection	Input over/under voltage protection, Output overvoltage protection, Overcurrent and short circuit protection, Over temperature protection, Emergency stop protection, SPD protection etc...
	IP level	IP54/ IK10
	Charging Cable	4m / 5m Or Customized
	Output Connectors	CS2 / CCS1 /CHADEMO / GBT / NACS optional

Introduction

A V2G charging station, short for Vehicle-to-Grid, is a bidirectional AC/DC system that leverages the energy storage capabilities of electric vehicles (EVs) to interact with the power grid. This system enables the transfer of electrical energy to EVs for charging and allows vehicles to send stored energy back to the grid when needed.

Key Features

- Two-Way Energy Flow

V2G technology facilitates bidirectional energy transfer between EV batteries and the power grid. This feature allows vehicles to supply energy back to the grid during peak demand, supporting grid stability.

- Advanced Monitoring and Safety Functions:

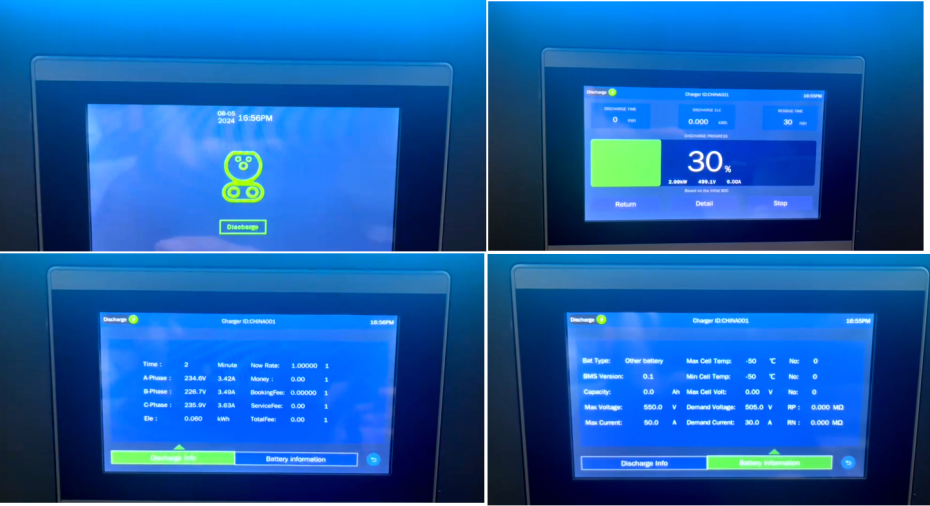

This V2G Bidirectional 15KW 22KW Vehicle To Grid EV Charger includes features such as real-time billing, fault detection, error logging, charging history, emergency stop functionality, and DC insulation monitoring. It also offers comprehensive safety measures, including protections against battery reverse polarity, over-current, short circuits, and voltage anomalies (over-voltage and under-voltage).

15KW 22KW CCS CHADEMO GBT Vehicle To Grid V2G EV Charger - manufacturers, suppliers

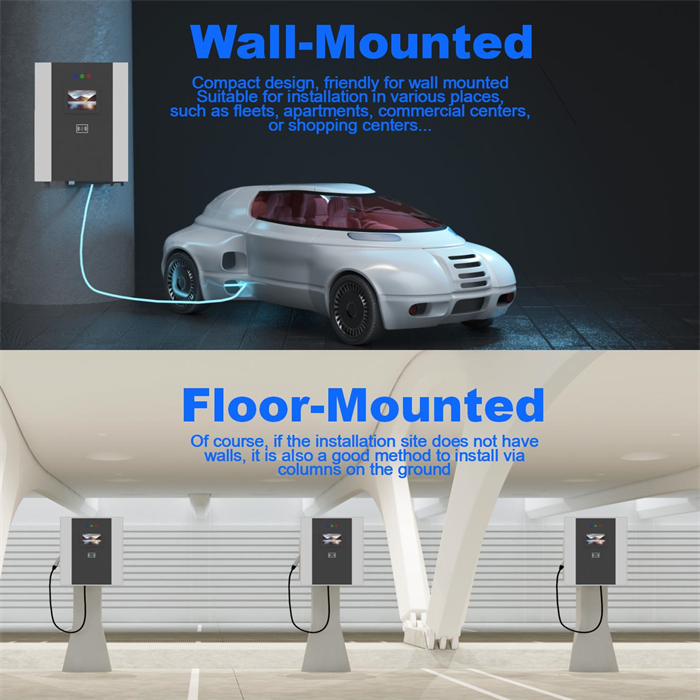

- Flexible Installation Options

The V2G Bidirectional 15KW 22KW Vehicle To Grid EV Charger is available in two configurations:

* Wall-mounted version: Dimensions 630mm x 260mm x 750mm

* Ground-mounted version (with a column): Dimensions 630mm x 260mm x 1600mm

----------------------Expand knowledge---------------------

What is V2G, and How Does It Differ From Other V2X Technologies?

V2G technology transforms EVs with bidirectional charging capabilities into mobile energy storage systems. When connected to a V2G charging unit, these vehicles can supply electricity to the grid during peak demand or store renewable energy for later use, thereby contributing to grid stability.

V2G stands apart from technologies like V2H (Vehicle-to-Home) and V2L (Vehicle-to-Load). While V2H supplies backup power to homes during outages, and V2L powers smaller devices and tools directly from the vehicle's battery, these technologies do not interact with the power grid. V2L, in particular, is straightforward and widely adopted for powering appliances and equipment.

V2G's ability to deliver clean, large-scale energy makes it a standout solution among other V2X technologies.

Benefits of V2G Technology

V2G offers significant advantages beyond its environmental impact:

1. Enhanced Energy Efficiency:

By integrating EV batteries into the grid, V2G supports the growing demand for electricity while reducing reliance on fossil fuels. It also helps maximize the use of renewable energy sources, leading to a more sustainable energy ecosystem.

2. Cost Savings for EV Owners:

EV owners can offset the cost of vehicle ownership by selling surplus electricity back to the grid. This not only generates additional income but also promotes the shift toward greener energy infrastructure.

3. Economic Advantages for Public Utilities:

Utilities benefit from V2G as it provides a cost-effective way to manage energy demand surges and optimize renewable energy utilization, ensuring affordable and reliable electricity for consumers.

For more information about V2G, please check!
