> EV Charging Station Power Module

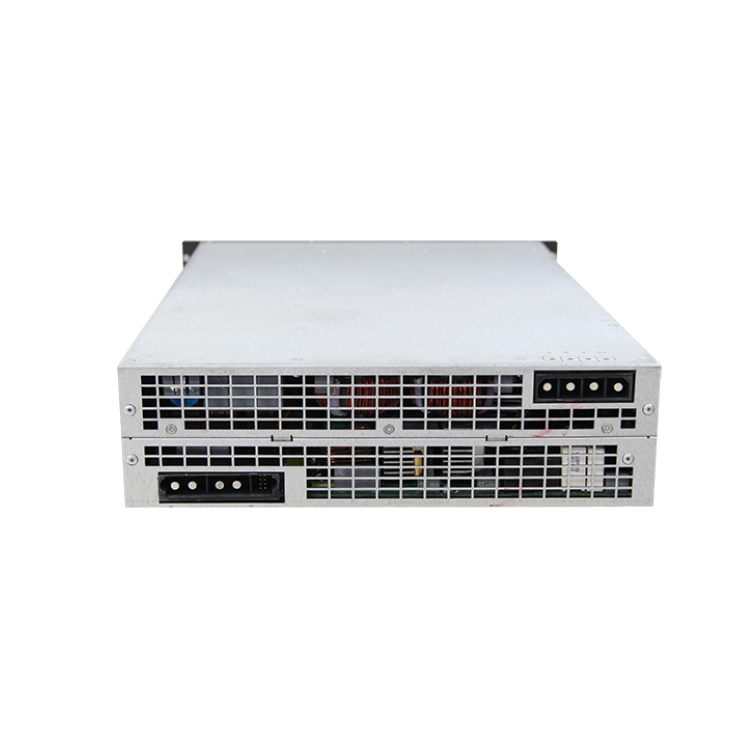

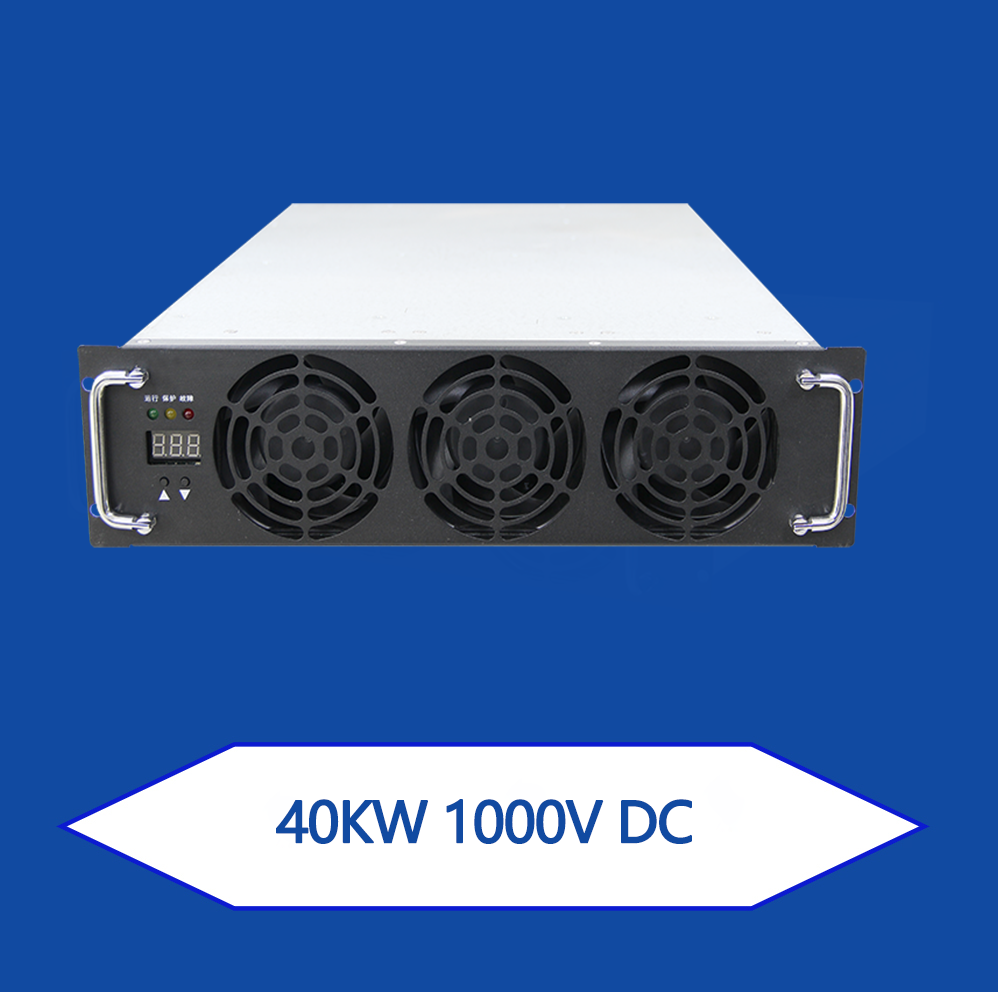

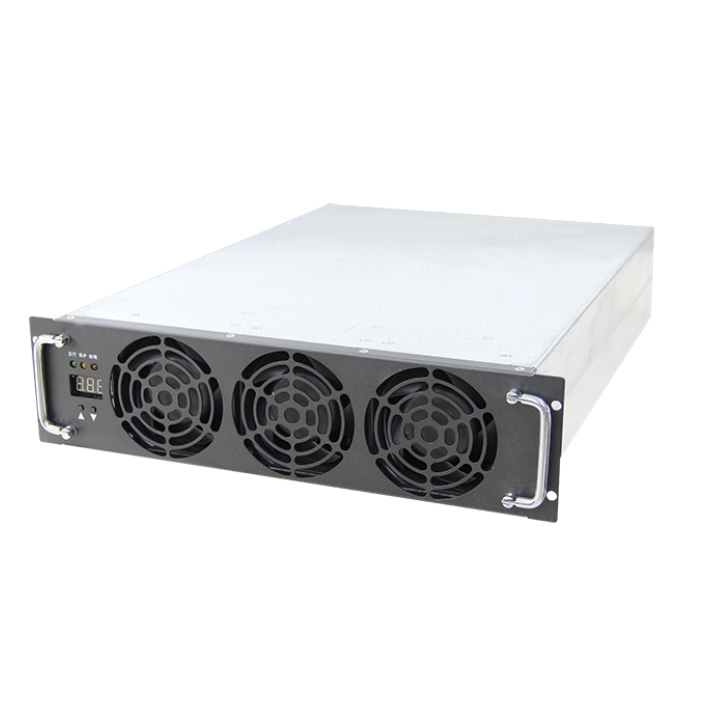

40KW EV Car Charger AC DC Power Module

Input Voltage: 285~475V，rated voltage380V AC
Output Current: 2~143A
Output Volatge: 150-1000V DC
Total Power: 40KW
Product description: This 40KW EV Car Charger AC DC Power Module is a new published AC to DC converter product. The output power 40KW has greatly saved the installation space. With this 40KW AC DC Power Module, the EV Car
Inquiry

Product introduction

Electric Vehicle Charging Stations 40KW AC DC Rectifier

This 40KW EV Car Charger AC DC Power Module is a new published AC to DC converter product. The output power 40KW has greatly saved the installation space. With this 40KW AC DC Power Module, the EV Car Charger manufacturer can produce chargers with smaller volume but higher power; At the same time, the 40KW module will also reduce the manufacturing cost of the DC fast EV Chargers.

Model	SENKU-40KW 1000V AC DC RECTIFIER (SK-40K1000)
Input Feature
Operating Voltage（AC）	285~475V，rated voltage380V
Input Frequency（HZ）	45~55
Power Factor	Full load≥0.99
THD	Full load≤5%
Standby Power Consumption	＜13W
Output Feature
Output Voltage Range（DC）	150~1000
Max output current（A）	143
Output constant power range	280~500VDC，500~1000VDC
Communication Protocol	CAN
Safety
Certification	CE
