> EV Charging Station Power Module

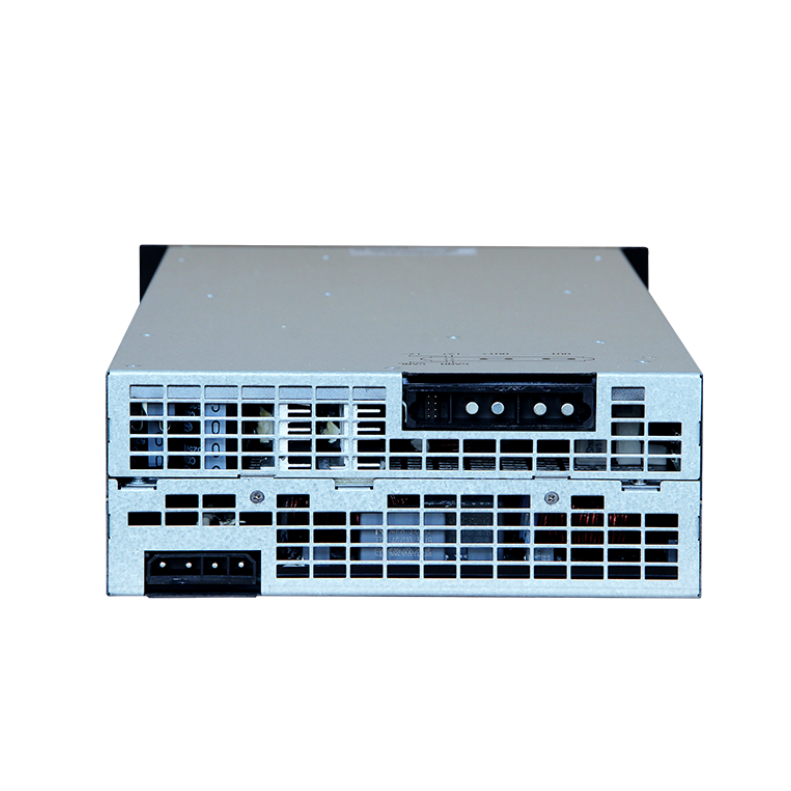

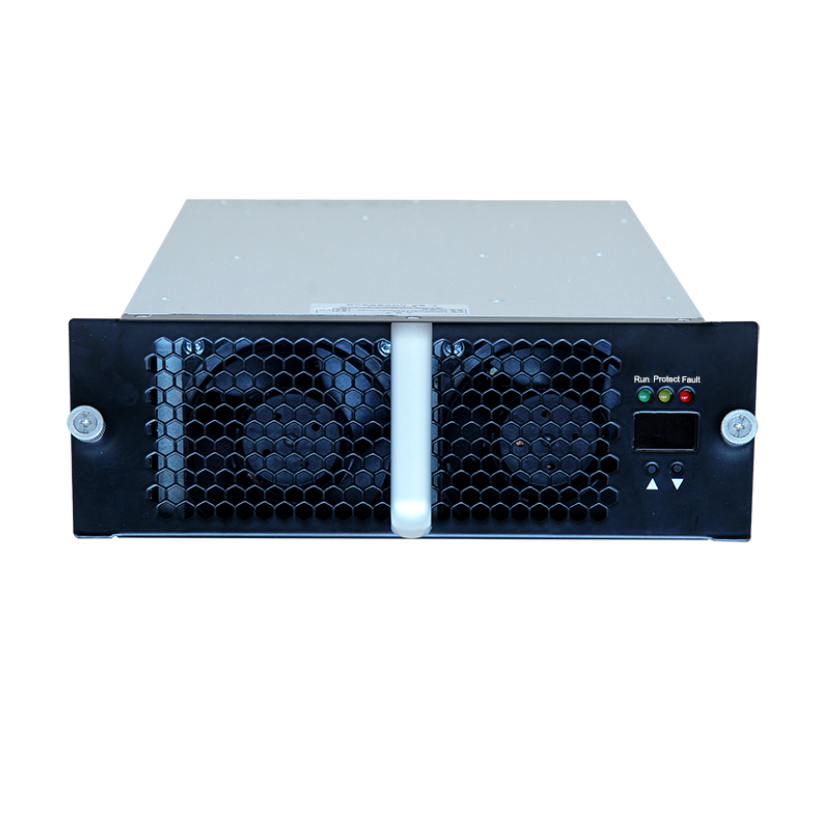

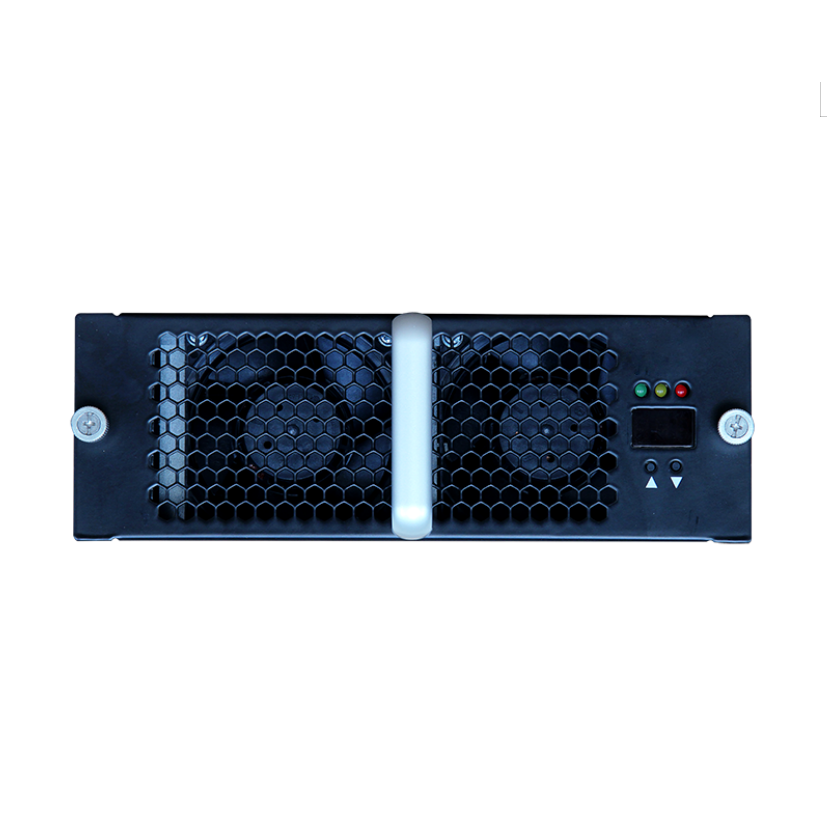

22KW Bidirection AC DC Converter

Total Power：22KW
Efficiency (max):≥96％
Standard: EN61851-1，EN61851-23
MTBF:≥>300,000 h
Product description: This 22KW power module is a bi-directional AC DC converter, which is used to connect batteries or DC buses to the AC power grid, and is specially designed for bi-directional applications of V2G and VP
Inquiry

Product introduction

22KW Bidirection AC DC Converter Features:

• Bi-directional converter for AC2DC
• Internal high-frequency transformer isolation
• Wide voltage range at power supply side, applicable to multiple battery racks
• Smooth transition when the current changes direction

Model	SENKU 22KW Bidirection AC to DC Converter (SK-22KBiACDC)
AC to DC Mode
Input volt/current	400/480Vac, 3L+PE; 0-43A
Input voltage	260 Vac ～530 Vac; 45Hz-65Hz
Power Factor	0.99
Output Voltage	150Vdc～1000Vdc
THD	≤5%
Efficiency	≥96%
DC to AC Mode
Input voltage	From 300 to 1000Vdc, ouput power is 22kW From 300 to 150Vdc, output power is 11kW
Max Input current	73.3A
AC Output	From 320 to 530Vac, ouput power is 22kW; 33.3A From 320 to 260Vac , output power is 11kW
Power Factor	User Setting scale, 0.8～1, -0.8～-1
Efficiency (max)	≥96％
Others
Communication	Duo CAN BUS
Operating Temp	-40~+75°C, power derating form 45°C
Humidity /Altitude	≤95% RH non-condensing / <2000M
Dimension & Weight	84mm (H) × 300mm (W) × 395mm (D), ≤17 kg
Comply	Comply with UL2202, EN61851-1，EN61851-23
