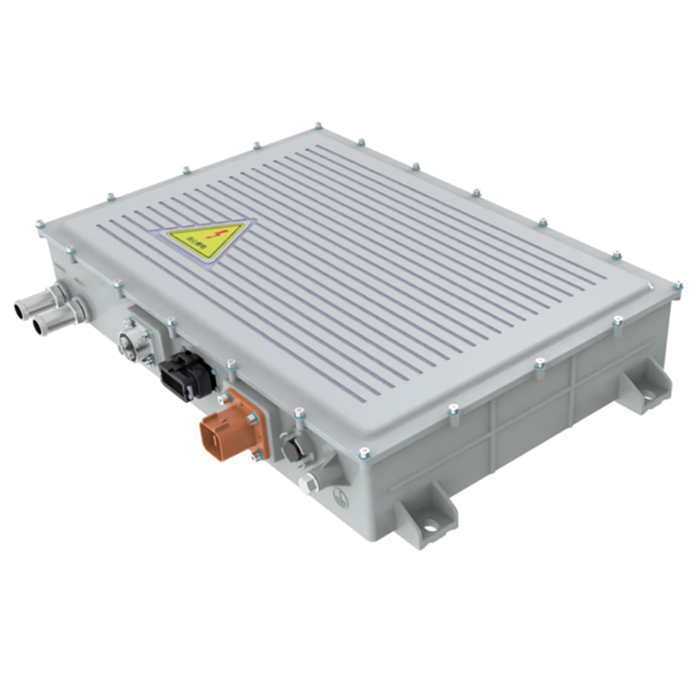

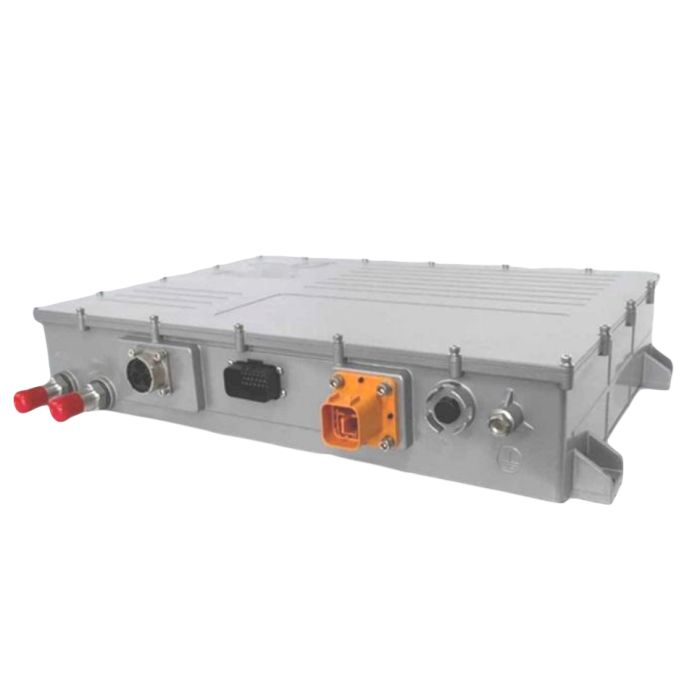

3Phase 20KW 144V 180V AC to DC EV On Board Charger

Input : 3phase 152～456VAC /≤32A
Rated Power: 20KW
Output voltage: 0～180V DC
Output current: 0～132A
Product description: The 22KW On Board Chargers is a high-power density and high-efficiency charger designed and developed specifically for new energy vehicle models such as lithium-ion pure electric logistics vehicles, b
Inquiry

Product introduction

Part No	Input Voltage Range	Rated Output Power	Rated Output Voltage	Output Voltage Range	Output Current Range
SK-L144V20000	3 Phase 152~456V AC	20 KW	144V DC	0～180VDC	0～132A

Basic Data of 22KW On Board Chargers

Specification	Model	SK-LXXXV20000 (SK-L144V20000)
AC Input	Phases/ Lines	3 Phase
	Input Voltage /Current	3 Phase 152~456VAC (Rated 380V) /≤32A
	Frequency	45Hz-65Hz
DC Output	Output Power	20KW @ 380V AC (6.6KW only when 220VAC Single Phase Input)
	Output Voltage	0～180VDC (Rated 144V)
	Output Current	0～132A
Others	Operating noise	≤60dB
	CAN BUS	Support (Baud Rate 125Kbps、250Kbps、500Kbps optional)
	Cooling Method	Liquid Cooling

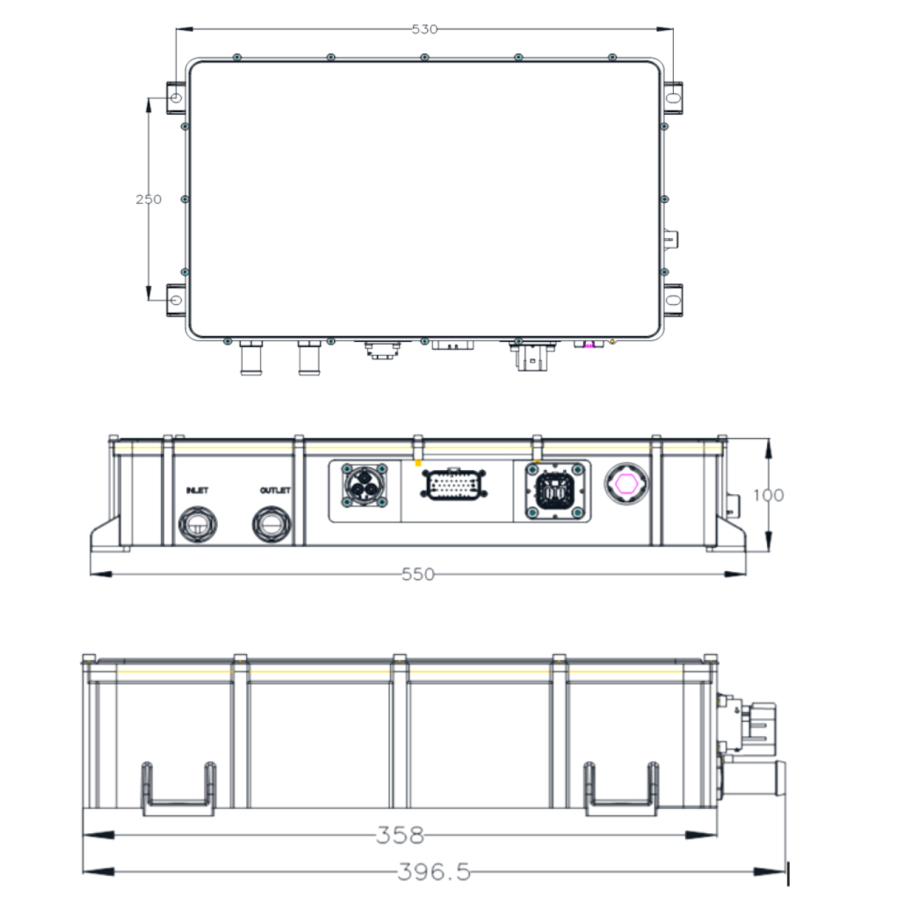

	Dimension	550396.5100mm
	IP Level	IP 67

More specification of this 22KW On Board Chargers, please contact our sales.

Application of 22KW On Board Chargers

On-board charger (OBC) is a kind of power electronic equipment in electric cars, which converts AC power from external power source (such as residential socket or AC charging station) into DC power to charge vehicle battery pack.

The 22KW On Board Chargers applications of an electric vehicle onboard charger are widespread and include personal electric vehicles like cars, trucks, and motorcycles, as well as public transportation like electric buses and trains. Industrial applications for electric vehicle onboard chargers include charging electric forklifts, golf carts, and other industrial vehicles. Overall, electric vehicle onboard chargers are a critical component in the growing electric vehicle industry and will continue to play a significant role in the future of transportation.
