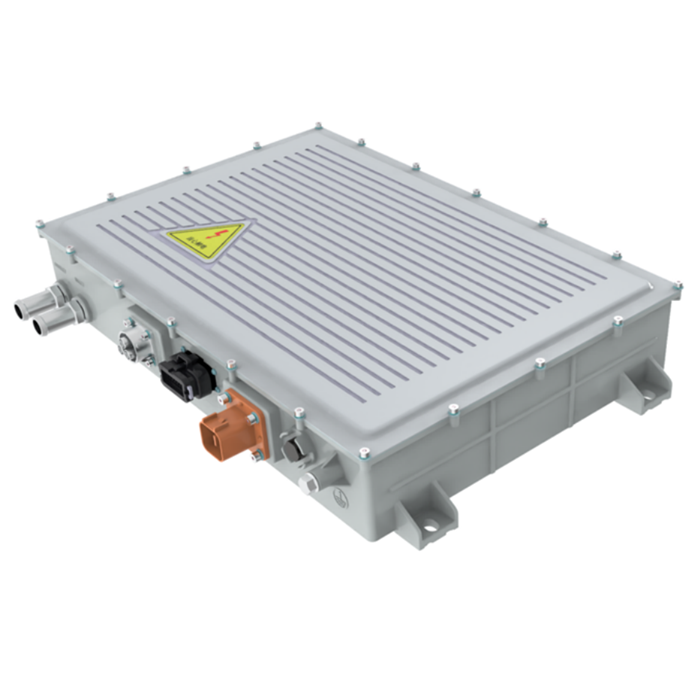

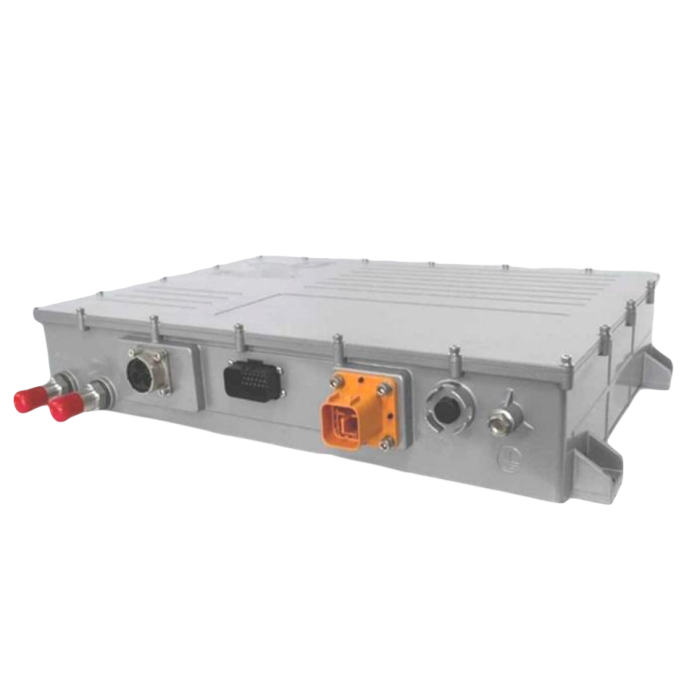

3Phase 20KW 108V 132V AC to DC On Board Charger

Input : 3phase 152～456VAC /≤32A
Rated Power: 20KW
Output voltage: 0～135VDC
Output current: 0～180A
Product description: The OBC 22KW Charger is a high-power density and high-efficiency charger designed and developed specifically for new energy vehicle models such as lithium-ion pure electric logistics vehicles, buses,
Inquiry

Product introduction

Part No	Input Voltage Range	Rated Output Power	Rated Output Voltage	Output Voltage Range	Output Current Range
SK-L132V20000	3 Phase 152~456VAC	20 KW	108V DC	0～135VDC	0～180A

OBC 22KW Chargers 132V

SK-L series OBC 22KW Chargers is an efficient power electronic product used for converting AC to DC charging. it has excellent cost-effectiveness through advanced components and compact system design.

This OBC 22KW Chargers is easy to integrate into existing infrastructure; The parallel charging mode can flexibly increase the charging power.

Basic Data

Specification	Model	SK-LXXXV20000 (SK-L108V20000)
AC Input	Phases/ Lines	3 Phase
	Input Voltage /Current	152~456VAC (Rated 380V) /≤32A
	Frequency	45Hz-65Hz
DC Output	Output Power	20 KW @ 380V AC (6.6KW only when 220VAC Single Phase Input)
	Output Voltage	0～135VDC (Rated 108V)
	Output Current	0～180A
Others	Operating noise	≤60dB
	CAN BUS	Support (Baud Rate 125Kbps、250Kbps、500Kbps optional)
	Cooling Method	Liquid Cooling

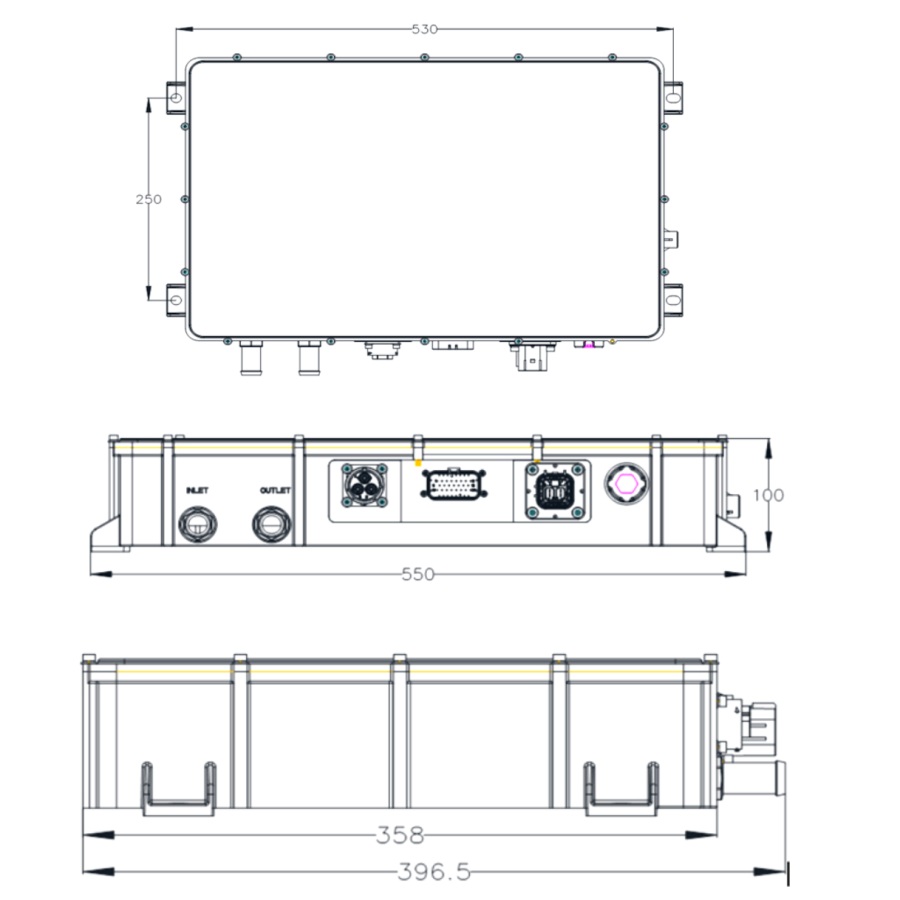

	Dimension	550396.5100mm
	IP Level	IP 67

More specification of this OBC 22KW Chargers, please contact our sales.

OBC 22KW Chargers 108v senku obc charger

3.3kw on board charger 500V 600V 700V

Lithium Lifepo4 Lead-acid Battery 3.3 kw charger 132V

2KW 96V 108V 132V AC to DC On Board Charge

Application of electric vehicle OBC 22KW Chargers

The application of electric vehicle on-board chargers is very extensive, including personal electric vehicles such as cars, trucks, and motorcycles, as well as public transportation vehicles such as electric buses and trains. The industrial applications of electric vehicle on-board chargers include charging electric forklifts, golf carts, and other industrial vehicles. Overall, electric vehicle on-board chargers are a key component of the constantly evolving electric vehicle industry and will continue to play an important role in future transportation.
