> AC / DC On Board Charger

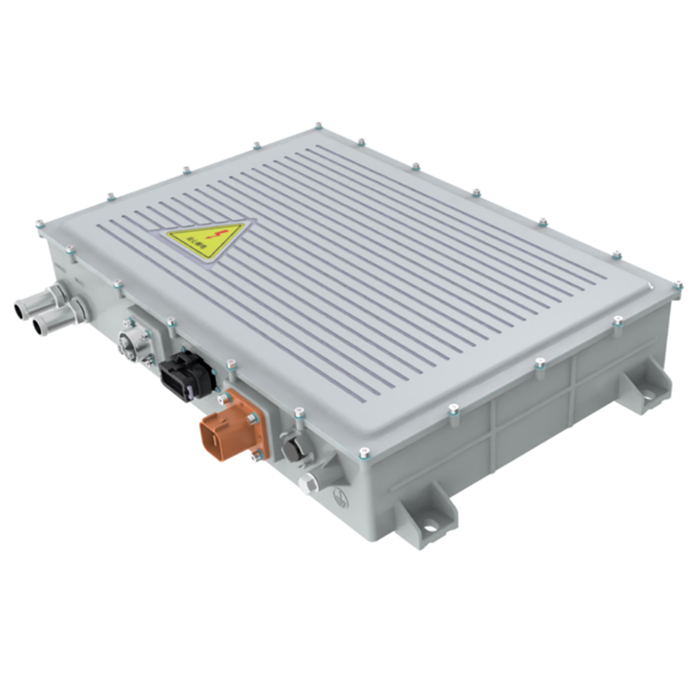

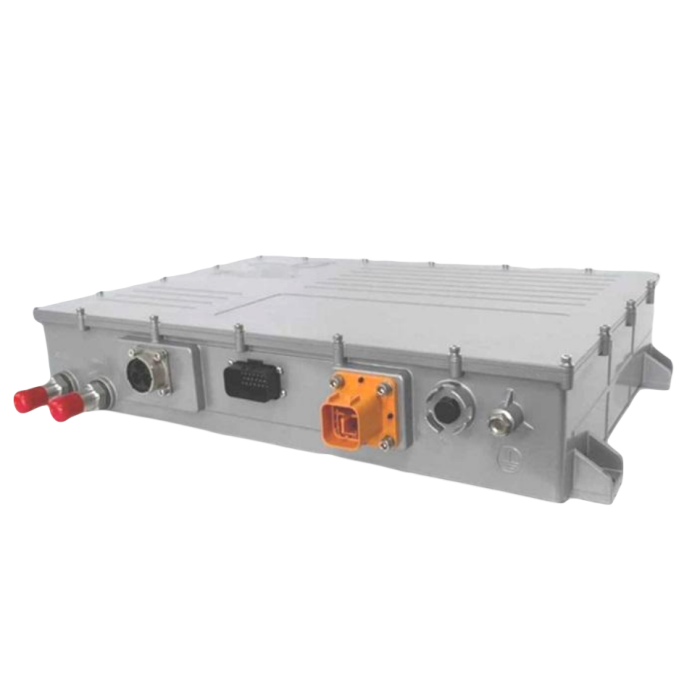

3Phase 20KW 320V 360V 450V AC to DC On Board Charger
- Input : 3phase 152～456VAC /≤32A
- Rated Power: 20KW
- Output voltage: 0～450V DC
- Output current: 0～54A
- Product description: The SK-LXXX20000 series 20KW 360V On-Board Charger is a high-power density and high-efficiency charger designed and developed specifically for new energy vehicle models such as lithium-ion pure electr
Product introduction
Part No
Input Voltage Range
Rated Output Power
Rated Output Voltage
Output Voltage Range
Output Current Range
SK-L360V20000
3 Phase 152~456VAC
20 KW
360V DC
0～450VDC
0～54A
Features of 360V 20KW On Board Chargers
√ AC to DC Conversion: converts AC power from a charging station into DC power that can be used to charge the vehicle's batteries.
√ Excellent cost-effectiveness ratio: By combining cutting-edge components into a compact design.
√ Constant power and constant voltage state automatic conversion, effective saving time
√ Compact and lightweight design for ease of installation.
√ Liquid Cooling
√CAN communication
√ IP67 protection
Basic Data of 360V 20KW On Board Chargers
| Specification | Model | SK-LXXXV20000 (SK-L360V20000) |
| AC Input | Phases/ Lines | 3 Phase |
| Input Voltage /Current |
152~456VAC (Rated 380V) /≤32A |
|
| Frequency | 45Hz-65Hz | |
|
DC Output |
Output Power |
20 KW @ 380V AC (6.6KW only when 220V AC Single Phase Input) |
|
Output Voltage |
0～450VDC (Rated 360V) |
|
|
Output Current |
0～54A |
|
|
Others |
Operating noise | ≤60dB |
|
CAN BUS |
Support (Baud Rate 125Kbps、250Kbps、500Kbps optional) | |
| Cooling Method |
Liquid Cooling |
|

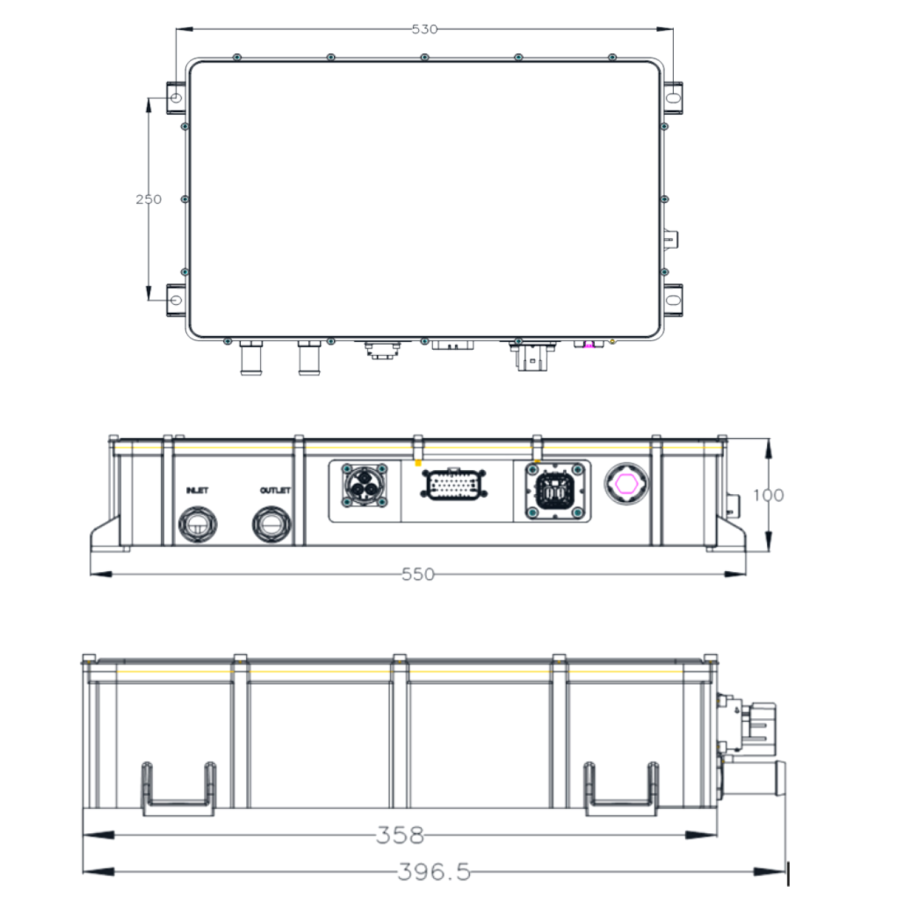

| Dimension | 550*396.5*100mm | |
| IP Level | IP 67 |
More specification of this 360V 20KW On Board Chargers, please contact our sales.
