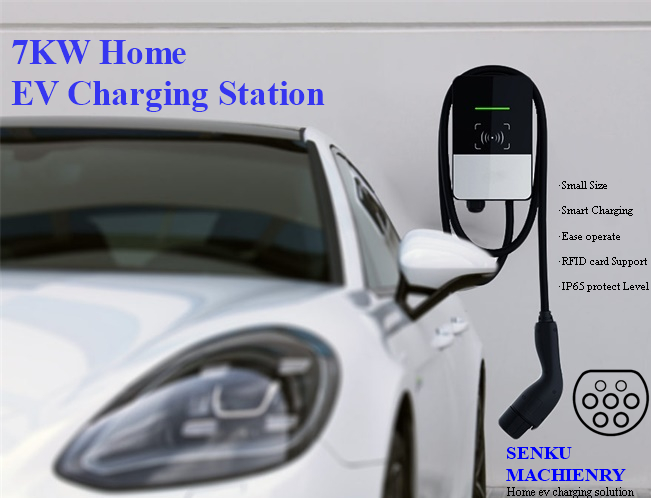

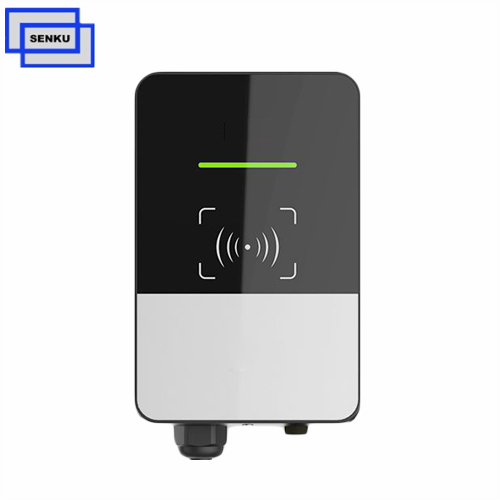

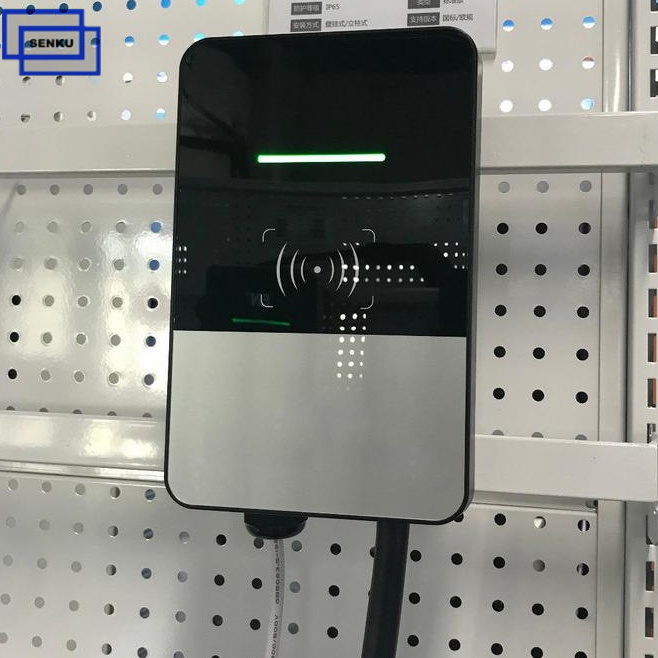

IEC 62196 Type2 7KW Home Wallbox AC EV charger
- Input Rating：1phase 230V±10%; 50Hz
- Rated Current: 32A
- Total Power：7KW
- MTBF：100,000 hours
- Product description: The 7KW small charging station with half size of A4 paper, it saves the space. The charger easy to operate, it is the ideal solution for your home or company charging.
Product introduction
Features
1- Small Size

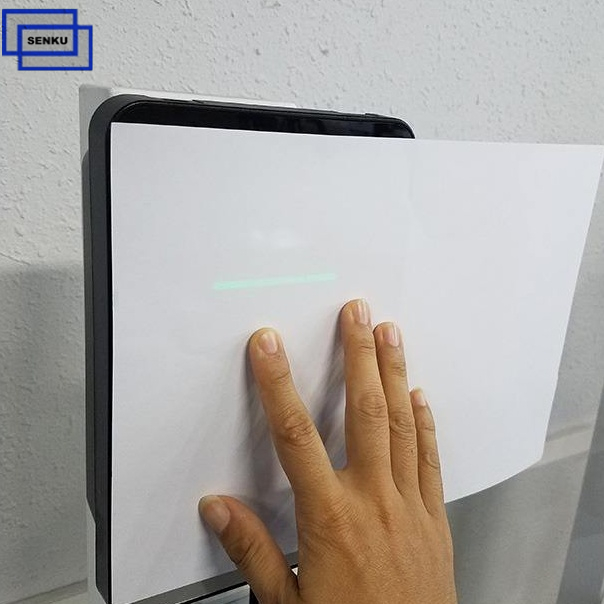

The charger with half size of A4 paper, it saves the space. Easy to operate, it is the ideal solution for your home or company charging.
2-Safty
a)With IP65 high protection level.The charger can install both indoor and outdoor.

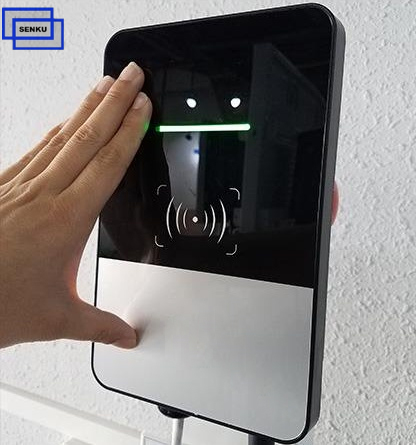

b)With RFID card for ID authentication to prevent theft of electricity.
|
Specification |
Model |
AC7000-AE-05 |
|
AC Nominal Input |
Phases/ Lines |
1 phase + neutral+ PE |
|
Voltage |
230VAC±10% |
|
|
Frequency |
50Hz |
|
|
AC Nominal Output |
Voltage |
230VAC±10% |
|
Current |
32A |
|
|
Power |
7KW |
|
|
Structure Design |
Housing Material |
Plastic PC940 |
|
Front Panel |
Plastic PC940 |
|
|
Installation Method |

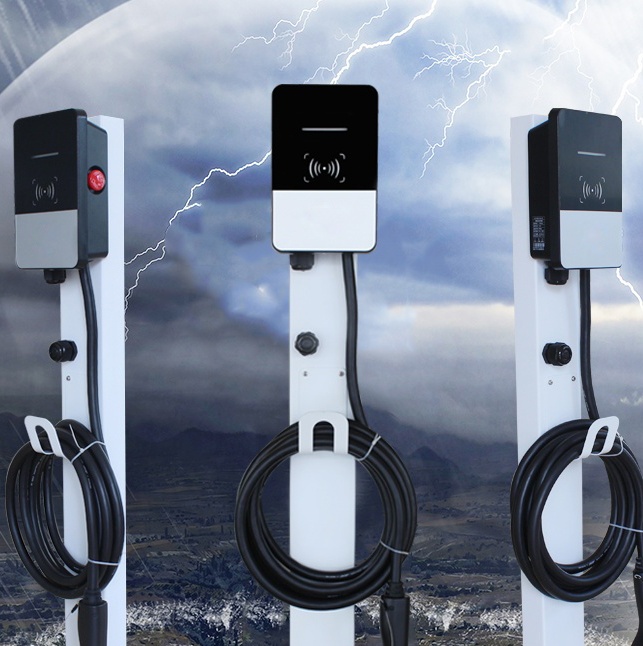

Wall / Floor-stand |
|
|
Wall-mount Bracket |
Not necessary |
|
|
Charging Outlet |
1 charging Plug (Type 2) |
|
|
Cable Length |
Standard 4m |
|
|
LED Indicator |
Green/Yellow/Red |
|
|
LCD Screen |
NO |
|
|
Touch Buttons |
NO |
|
|
Emergency Stop Button |
Yes |
|
|
RFID Function |
Yes |
|
|
RFIDCard |
2pcs Mifare card |
|
|
Energy Meter |
PCBA integrated Meter |
|
|
RCD |
PCBA integrated RCD TypeA |
|
|
Environmental Index |
Operating Temperature |
-30~+50°C |
|
Working Humidity |
5%~95% without condensation |
|
|
Working Altitude |
<2000M |
|
|
Protection Grade |
IP65 |
|
|
Application Site |
Indoor / Outdoor |
|
|
Cooling Method |
Natural cooling |
|
|
Security Protection |
Multile Protection |
Over/Under voltage protection, Overload protection, Short circuit protection, Current leakage protection, Grounding protection, Surge protection, Over/Under temperature protection protection, Grounding protection, Surge protection, Over/Under temperature protection |
|
MTBF |
100,000 hours |
|
|
Safety Standard |
IEC 61851-1: 2017, IEC 62196-2: 2016 |
|
|
Warranty |
1 years |
|
|
Package Information |
Dimension & Weight |
233*150*69.5MM & 3.6KG |
|
|
Install Parts |
Floor Stand Install Pile |
