> Commercial AC Charger

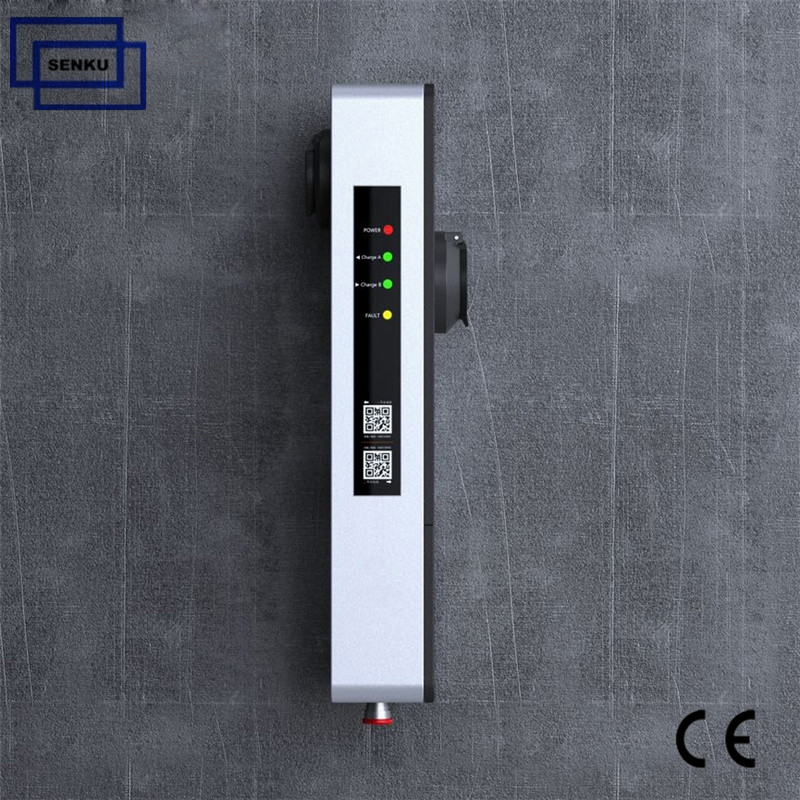

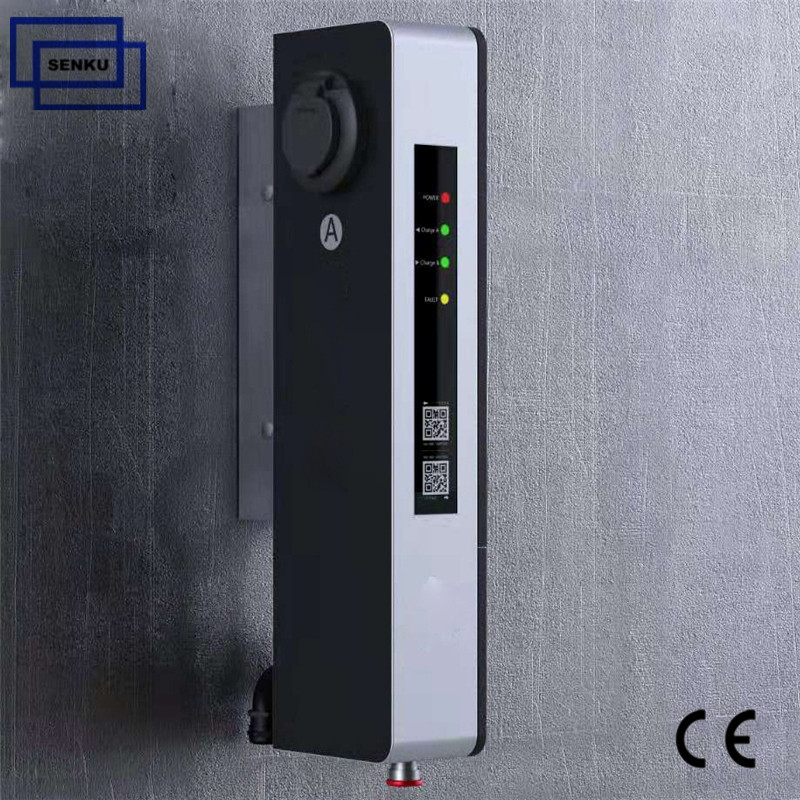

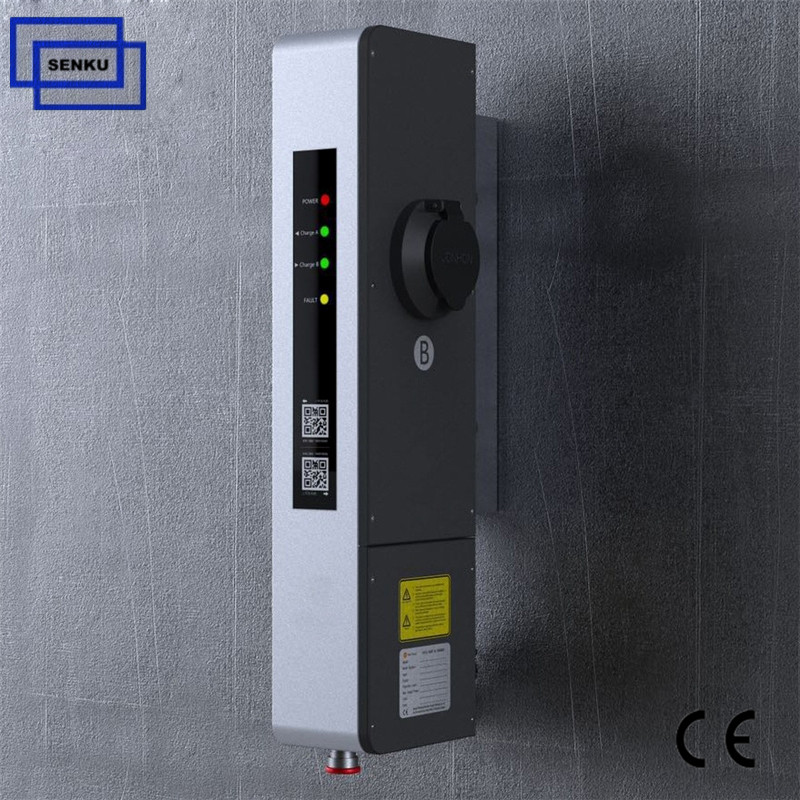

Type2 OCPP1.6 Smart 2*7KW 32A charger

Rated Current: 32A
Rated Power: 14kw (2*7KW)
Phase: 1 Phase
ocpp:OCPP 1.6
Product description: The 14kw ev charger with dual 7kw socket. It can charging 2 evs at the same time, equal to 2 pcs 7kw charger. and the charger with ocpp1.6 protocol, it can be easy connected to the customer's back-end
Inquiry

Product introduction

Features:

1- Appearance

The 14kw dual socket EV Charger appearance is design accoding to the feedback form the EU customer. It can meet the EU market requiremnt.

2-Smart

The 14kw dual socket ev charger with OCPP 1.6 protocol inside. So it can directly connected to customer manage back-end with 4G or Ethernet.

Then the customer can remote start and stop, management the charger. And it also support control by customer APP.

3- Safty

The whole charger was CE certificated. So you do not need to worry abot safty problems.

4-Application

The 14kw dual socket ev charger suotable for commercial use. It can be install both indoor and outdoor. It is the best choice for Ev operateors.

Specification	Model	SDH-AC0140XG57-B (Socket Type)
AC Nominal Input	Phases/ Lines	1 phase + netural+ PE
	Voltage	110V-230VAC±10%
	Frequency	50Hz-60Hz
AC Nominal Output	Voltage	110V- 230VAC±10%
	Current	32A
	Power	7KW
Structure Design	Housing Material	Galvanized steel
	Front Panel	Galvanized steel
	Installation Method	Wall mounted / Floor-stand
	Wall-mount Bracket	Not necessary
	Charging Outlet	2 charging Socket (Type 2)
	Cable Length	0M cable
	LED Indicator	Green/yellow/red color for different status
	LCD Screen	-
	SD card storage	Standard (8GB)
	Emergency Stop Button	Yes
	RFID Function	Yes
	RFIDCard	2pcs Mifare card
	Energy Meter	MID certified Energy Meter
	RCD	TypeB for option (external)
Communication	Gateway Network	Wifi / Ethernet/3G/4G
Communication	Communication Protocol	OCPP 1.6 (JSON) (with the help of ocpp gateway)
Environmental Index	Operating Temperature	-30~+50°C
	Working Humidity	5%~95% without condensation
	Working Altitude	<2000M
	Protection Grade	IP54
	Application Site	Indoor / Outdoor
	Cooling Method	Natural cooling
Security Protection	Multi le Protection	Over/Under voltage protection, Overload protection, Short circuit protection, Current leakage protection, Grounding protection, Surge protection, Over/Under temperature protection protection, Grounding protection, Surge protection, Over/Under temperature protection
	MTBF	100,000 hours
	Safety Standard	IEC 61851-1: 2017, IEC 62196-2: 2016
	Warranty	1 years
Package Information	Dimension & Weight	356221136MM & 3KG
Option Parts	Ground Install	Install Pile
Option Parts	Mode3 Charging Cable	Type2 to Type2 / Type2 to Type1 (Click the following picture to check details)
