> Home AC Charger
Type1 32A Wallbox Charger 8inch Screen
- Rated current: 32A
- Rated Voltage: 110V-230V AC
- Rated Power: MAX 7.2KW
- IP Level: IP 55
- Product description: The 32A ev wall box charger has the 8 inch large Touch Screen,easy to operate. It is designed to be installed in homes,hotel or restaurant,workplaces or fleets, college or hospital,central commercial
Product introduction
Type1 32A ev wall box charger
Features:
1- Easy operate
This ev wall box charger with 8inch large toch screen, Showing the real charging information.
And the charger with 3 color LDE circle light showing the real charging condition.

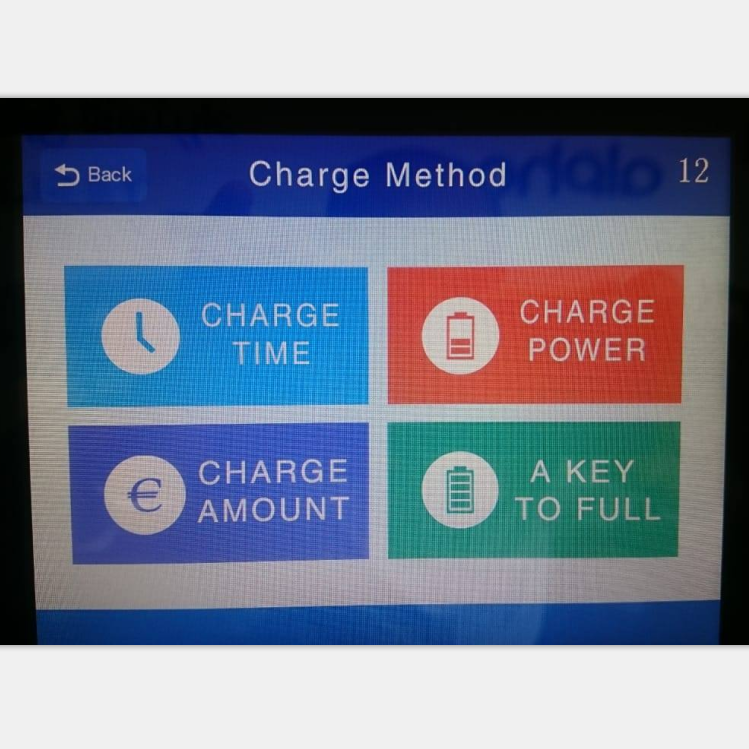

The ev wall box charger have four chargin model for option:

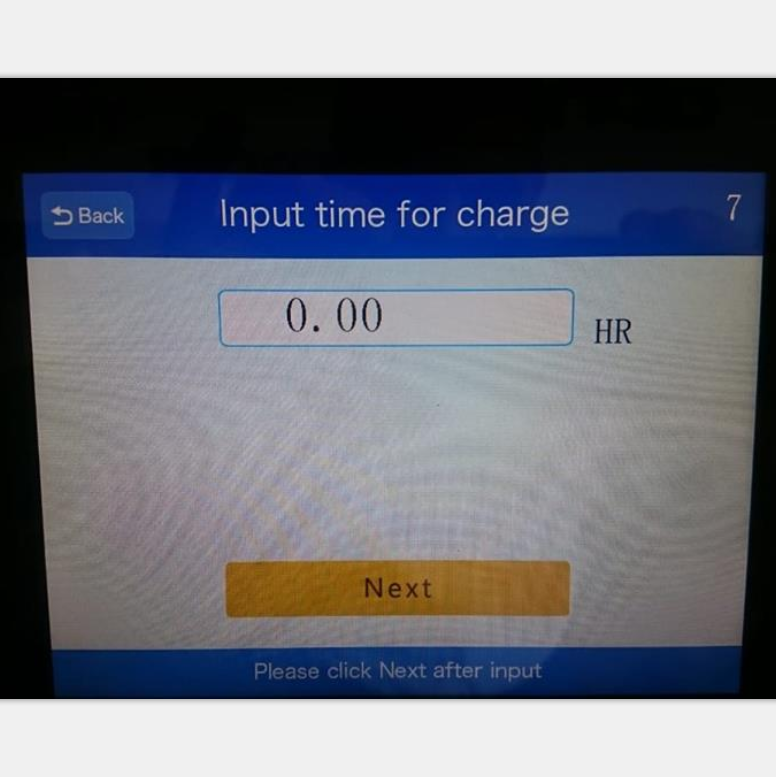

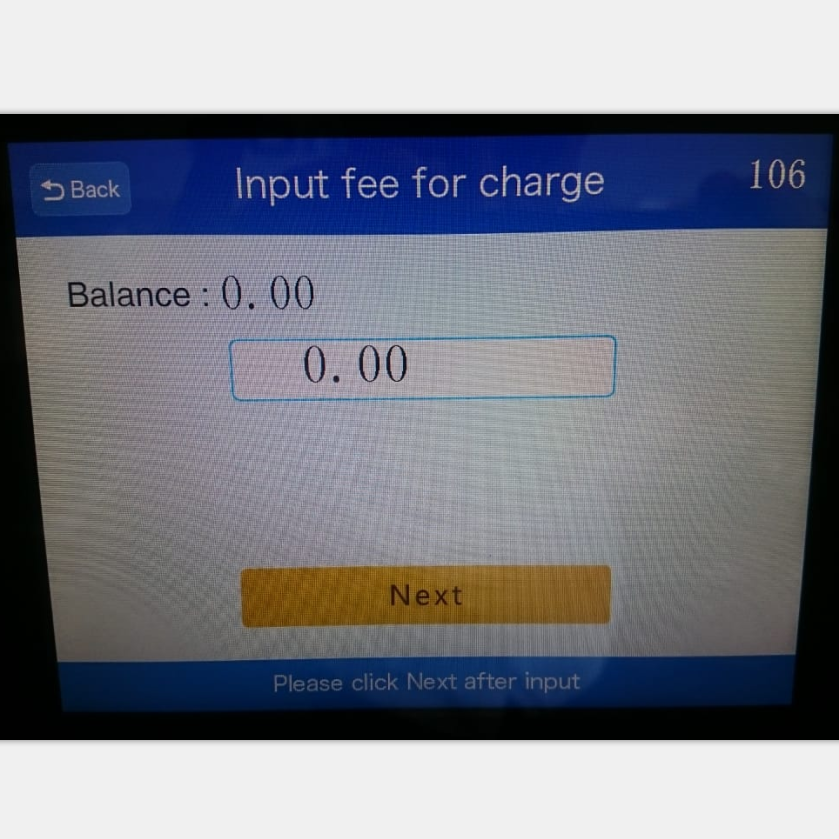

charging by time / charging by cost / charging by power / automatic to full
2-Saftly
The ev wall charger have got the TUV CE certificate, and it with 8 kind of protect (you can check them in the following table).
3- Widely application
The ev wall box charger with IP54 perotect level, it can install indoor and outdoor.
we have tested and prove the ev wall box charger can charging most evs on the road.

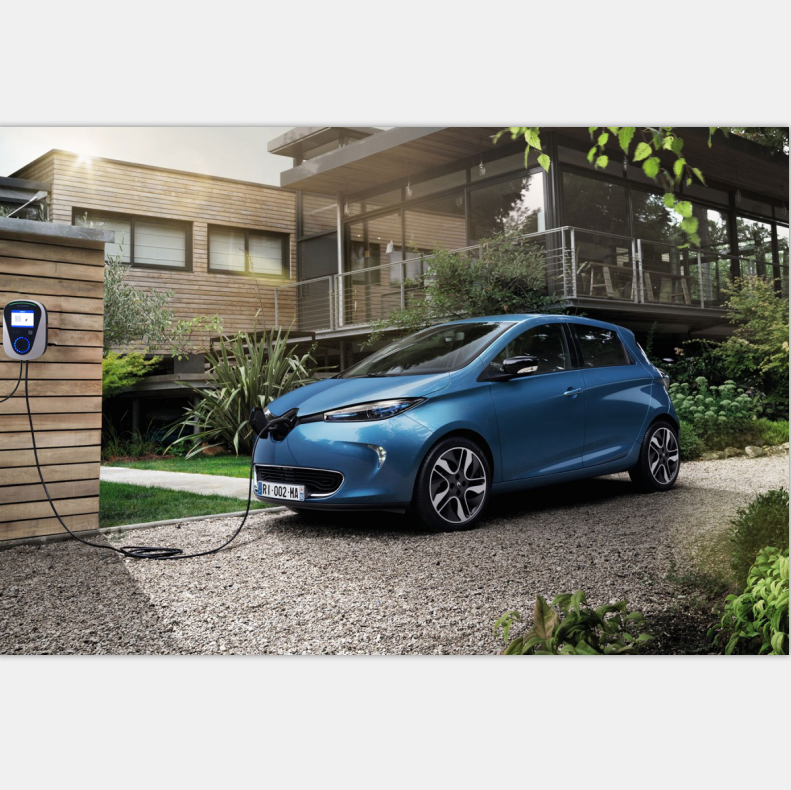

And the ev wall box charger can install in home for private use, and this charger also can install in public place, such as street, parking lot, fleet etc...
|
Electric Performance. |
|
|
Rated current |
32A |
|
Rated voltage |
110V-230V AC |
|
Output Power |
MAX7.2KW |
|
Charging Plug |
SAE J1772 Type1 Plug |
|
Charging cable length |
5m (Standard); or Customized |
|
Start Method |
Plug and play or use the RFID Card to start or stop |
|
EMI |
CISPR22/EN 55022 CLASS B |
|
EMS |
EN61000-4-5±2KV/ ±4KV perf. Criteria B |
|
Standards |
EN 61851-1 |
|
Working Humidity |
5%-95% without condensation |
|
Operation Temp. |
-30℃ ~ + 50℃ |
|
IP protection class |
IP 54 |
|
Protection |
Leakage detection and protection ; Over-voltage;Under-voltage protection;Over-load protection（self-checking recover）; Over-temperature rotection; Double Lightning protection (professional SPD + Lightning protection); Emergency stop button protection; Power failure data records; |
|
Certificate |
CE Certificate |
NOTE: ANY QUESTION PLEASE CONTACT US.
