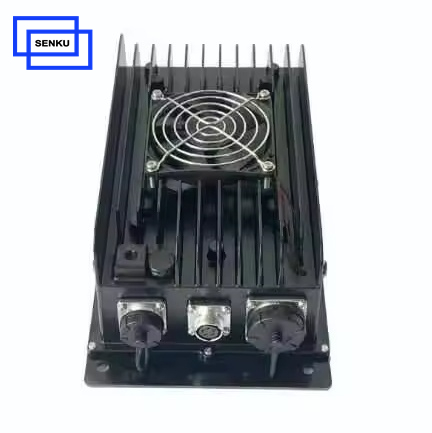

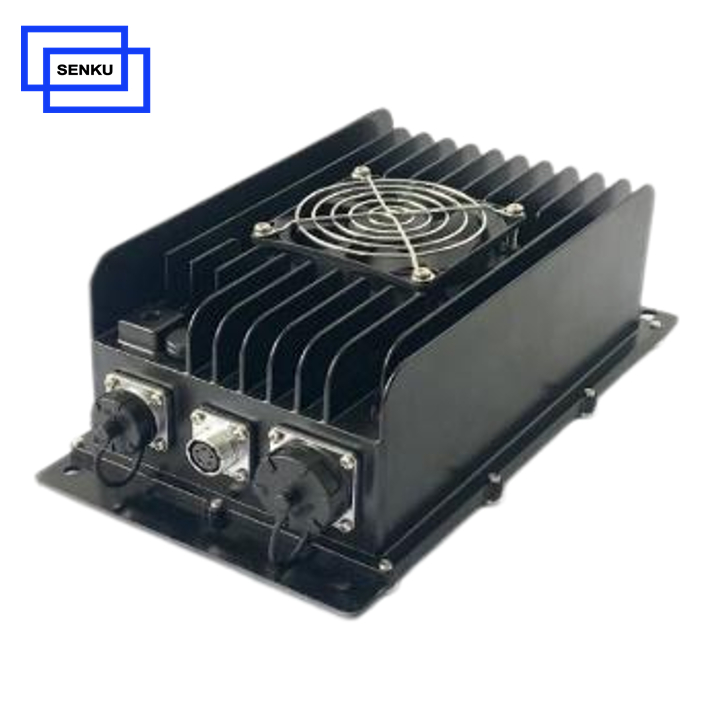

2KW 24V AC to DC On Board Charger

Input: 90～265VAC /19A
Rated Power: 2KW
Output voltage: 0～36VDC
Output current: 0～50A
Product description: The 2KW on-board chargers application is very extensive, such as cars, trucks, and motorcycles, as well as public transportation vehicles such as electric buses and trains. The industrial applications
Inquiry

Product introduction

Part No	Input Voltage Range	Rated Output Power	Rated Output Voltage	Output Voltage Range	Output Current Range
SK-L108V2000	90～265VAC	2KW	24V DC	0～36VDC	0～50A

SK-L series 2kw charger is an efficient power electronic product used for converting AC to DC charging. it has excellent cost-effectiveness through advanced components and compact system design.

This 2kw charger is easy to integrate into existing infrastructure; The parallel charging mode can flexibly increase the charging power.

Basic Data

Specification	Model	SK-LXXXV2000 (SK-L024V2000)
AC Input	Phases/ Lines	1-phase;Single Phase
	Input Voltage /Current	95V - 265V AC /≤10A
	Frequency	45Hz-65Hz
DC Output	Output Power	2 @ 220VAC
	Output Voltage	0～36VDC (Rated 24V)
	Output Current	0～50A
Others	Operating noise	≤60dB
	CAN BUS	Support (Baud Rate 125Kbps、250Kbps、500Kbps optional)
	Cooling Method	Fan Cooling

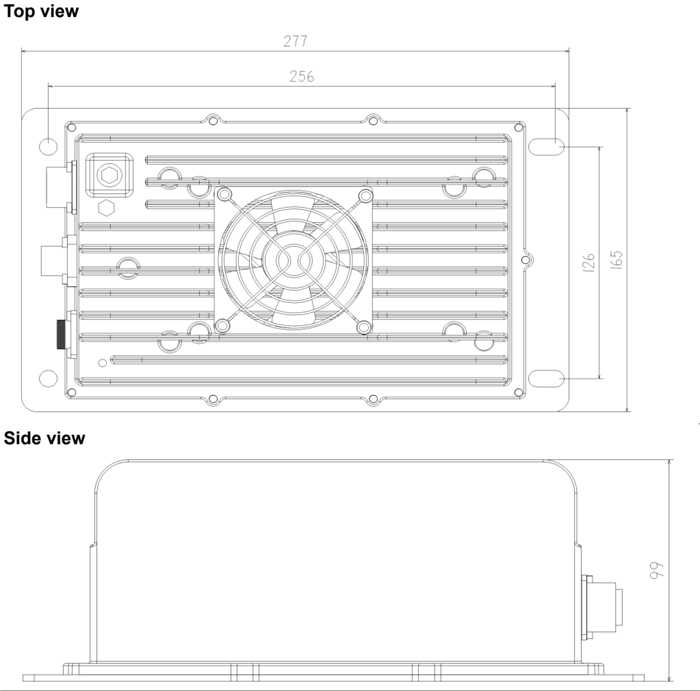

	Dimension	27716599mm
	IP Level	IP 67

More specification of this 2KW On-board Chargers, please contact our sales.

2KW On-board Chargers 48V senku obc charger

3.3kw on board charger 500V 600V 700V

Lithium Lifepo4 Lead-acid Battery 3.3 kw charger 132V

Application of 2KW On-board Chargers

The application of electric vehicle on-board chargers is very extensive, including personal electric vehicles such as cars, trucks, and motorcycles, as well as public transportation vehicles such as electric buses and trains. The industrial applications of electric vehicle on-board chargers include charging electric forklifts, golf carts, and other industrial vehicles. Overall, electric vehicle on-board chargers are a key component of the constantly evolving electric vehicle industry and will continue to play an important role in future transportation.
