Home  > Ev Charging Plugs
  • 600A Liquid Cooled CCS2 EV Charging Cable
  • 600A Liquid Cooled CCS2 EV Charging Cable
  • 600A Liquid Cooled CCS2 EV Charging Cable
  • 600A Liquid Cooled CCS2 EV Charging Cable

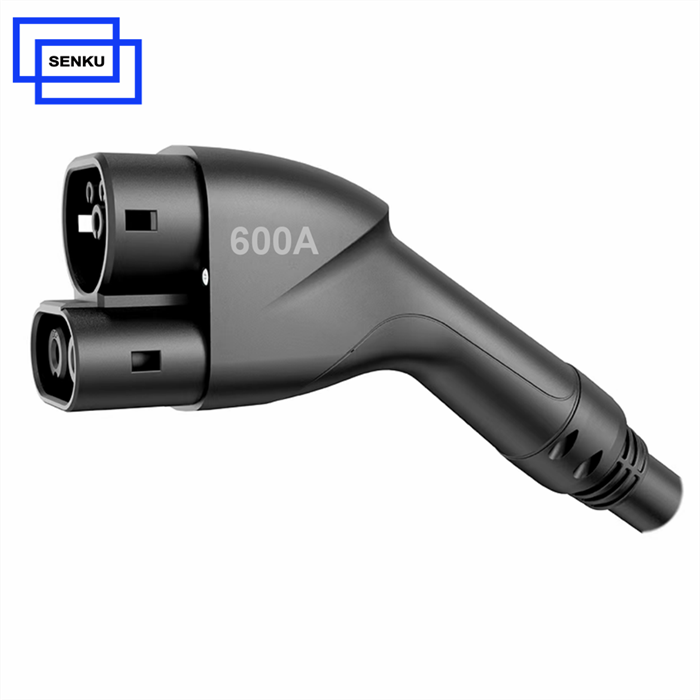

600A Liquid Cooled CCS2 EV Charging Cable

  • Rated Current: 600A
  • Rated Voltage: 1000V DC
  • Certificate: CE RHOS
  • IP Level: IP55
  • Product description: The 600A high-power liquid cooled CCS2 charging system is a dedicated circulation channel set up between the cable and the CCS2 charging connector. Cooling medium is added to the channel, and then the
  • Inquiry

Product introduction

600A 1000V Liquid Cooled CCS2 Cable and Cooling Unit

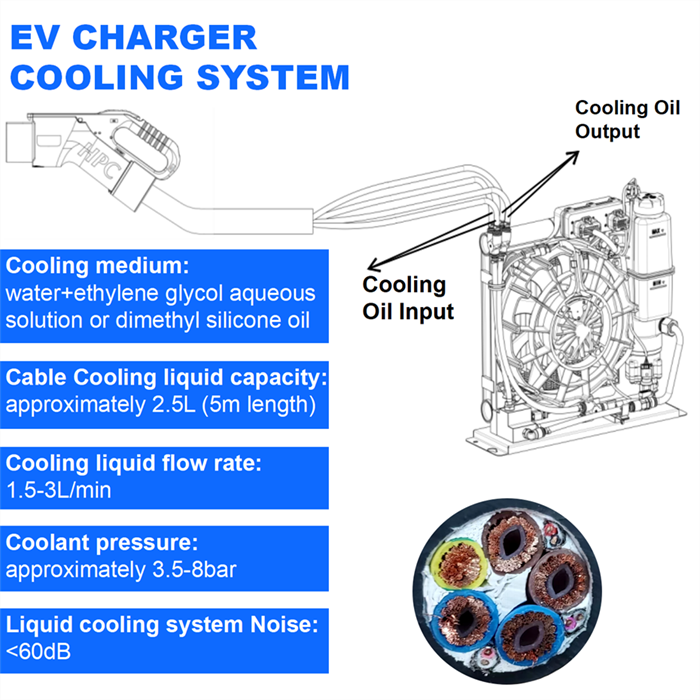

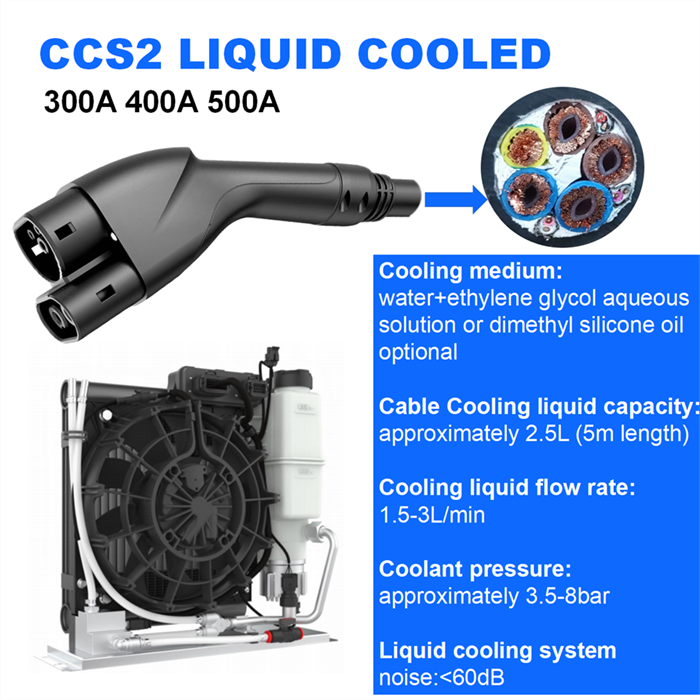

The 600A high-power liquid cooled CCS2 charging system is a dedicated circulation channel set up between the cable and the CCS2 charging connector. Cooling medium is added to the channel, and then the liquid is circulated through the power pump for cooling and heat dissipation.

SENKU CCS2 EV CHARGING

Electric Performance.
Rated current 600A
Operate voltage 1000V DC
Insulation resistance >2000MΩ (DC1000V)
Terminal temperature rise. <50K
Withstand Voltage 3000V
Contact Resistance 0.5 megohm
Mechanical life no-load plug in / plug out > 10000 times
Materia Thermoplastic, Flame retardant grade UL94-0;
Pin: Cooper alloy,sliver + thermoplastic on the top
Operation Temp. -30℃ ~ + 50℃
IP protection class IP 55
Standard IEC 62196-1 IEC 62196-3
Certifications CE
senku ccs type 2 charging cablesenku ccs charging cable






Tags: #liquid cooled ccs2, #manufacturers, #suppliers

PREVIOUS:400A CCS2 Charging Cable Manufacturers NEXT:400A Liquid Cooled CCS2 Car Charging Plug
