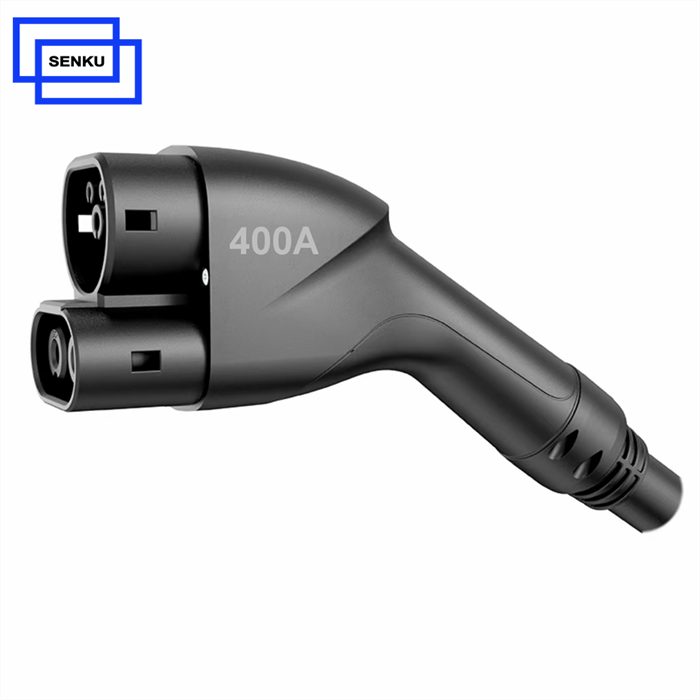

400A Liquid Cooled CCS2 Car Charging Plug
- Rated Current: 400A
- Rated Voltage: 1000V DC
- Certificate: TUV CE RHOS
- IP Level: IP55
- Product description: The CCS2 plug and cable of the electric vehicle charger used in the 400A liquid high-power electric vehicle charging system produced by SENKU have undergone performance tests such as high temperature
Product introduction
400A Combo CCS Type 2 Electric Car Charging Plug

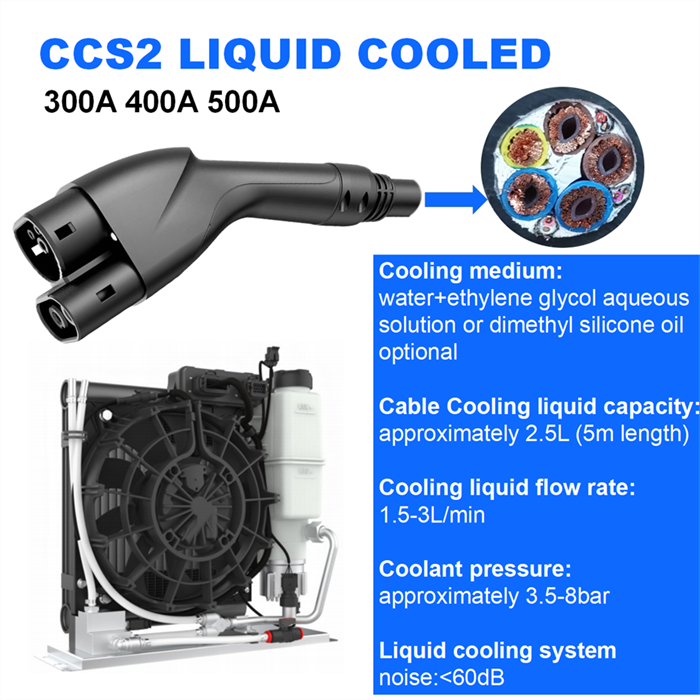

The 400A liquid cooling charging system mainly consists of a liquid cooling source, a liquid cooling cable, and a type 2 CCS plug for a liquid cooled electric vehicle charger.
We have conducted rigorous tests on the performance of the liquid cooling charging system, including high and low temperature resistance, corrosion resistance, explosion-proof, and weather resistance. Our product quality is guaranteed, and we are committed to creating a "cold, fast, and light" liquid cooling charging system. For more details, please contact the Senku sales team.
| Electric Performance | |
| Rated current | 400A |
| Operate voltage | 1000V DC |
| Insulation resistance | >2000MΩ (DC1000V) |
| Terminal temperature rise. | <50K |
| Withstand Voltage | 3000V |
| Contact Resistance | 0.5 megohm |
| Mechanical life | no-load plug in / plug out > 10000 times |
| Materia | Thermoplastic, Flame retardant grade UL94-0; |
| Pin: Cooper alloy,sliver + thermoplastic on the top | |
| Operation Temp. | -30℃ ~ + 50℃ |
| IP protection class | IP 55 |
| Standard | IEC 62196-1 IEC 62196-3 |
| Certifications | TUV CE |

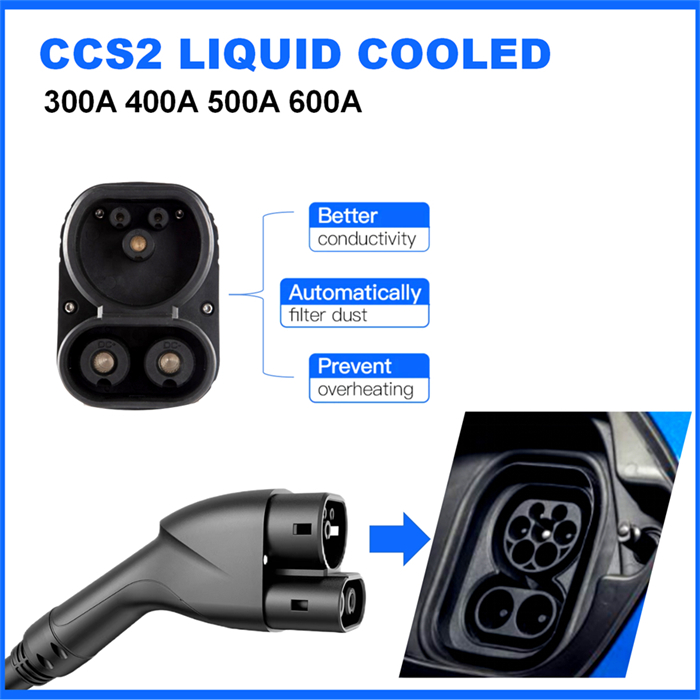

The CCS2 EV charging plug contains five contact pins: two small contacts and three large contacts.
The top two small contacts for signals, the middle pin is used for grounding, and the bottom two pins are used for power supply.
Proximity pilot (PP): pre-insertion signalling
Control pilot (CP): post-insertion signalling
Protective earth (PE): full-current protective earthing
Power supply positive (DC+)
The 400A EV charging cable shall be protected with bubble bags, then loaded into cartons, and then palletized; The carton pattern or packing mark can be done according to the customer's requirements
