> AC / DC On Board Charger

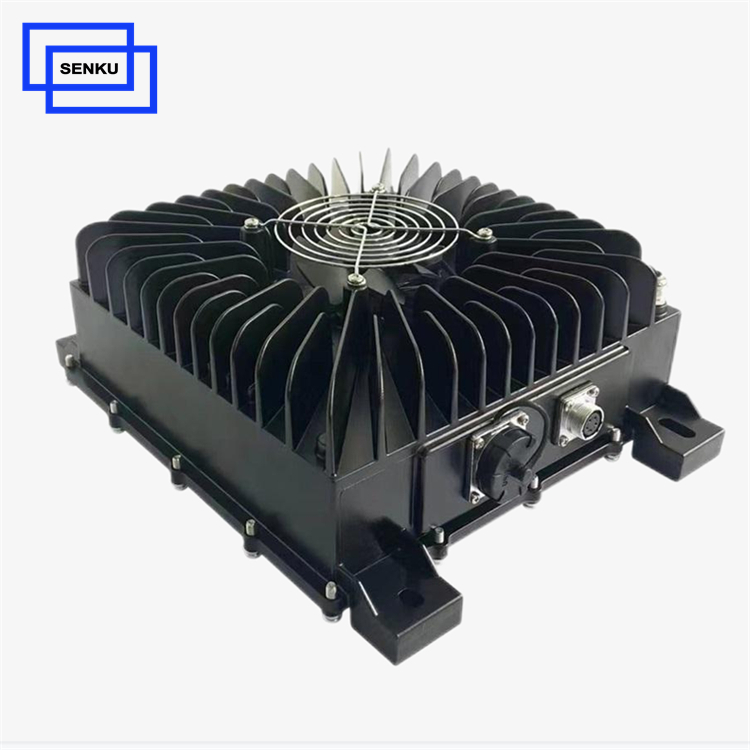

4KW Series AC to DC EV OBC Charger

Input: 90～265VAC /32A
Rated Power: 4KW
Output voltage: Subject to Battery Voltage

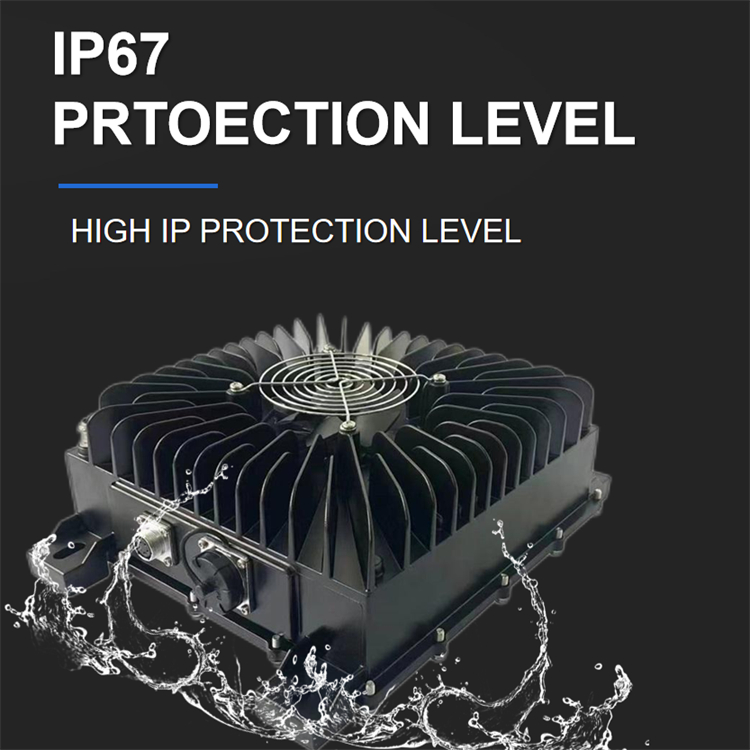

IP Level: IP 67
Product description: 4kw AC to DC charger OBC Chargers are widely used in electric cars, trucks, and motorcycles, as well as public transportation vehicles such as electric buses and trains. The industrial applications of
Inquiry

Product introduction

Model list of SK-LXXXV4000 4KW AC to DC Charger

Rated Output	Output Voltage Range	Output Current Range	Charger Model	*Dimension (LWH)*
60V DC 70A	0～80V DC	0～70A	SK-L060V4000	328260112mm
80V DC 50A	0～105V DC	0～50A	SK-L080V4000	328260112mm
108V DC 36A	0～135V DC	0～36A	SK-L108V4000	328260112mm
144V DC 26A	0～180V DC	0～26A	SK-L144V4000	328260112mm
360V DC12A	0～450V DC	0～12A	SK-L360V4000	328260112mm

More specification of this 4KW AC to DC Charger, please contact our sales.

Youtube video Link for this AC to DC Charger

https://youtu.be/Jwok52UWd74

Application of 4KW AC to DC Charger

On-board charger (OBC) is a kind of power electronic equipment in electric cars, which converts AC power from external power source (such as residential socket or AC charging station) into DC power to charge vehicle battery pack.

The 4KW AC to DC Charger applications of an electric vehicle onboard charger are widespread and include personal electric vehicles like cars, trucks, and motorcycles, as well as public transportation like electric buses and trains. Industrial applications for electric vehicle onboard chargers include charging electric forklifts, golf carts, and other industrial vehicles. Overall, electric vehicle onboard chargers are a critical component in the growing electric vehicle industry and will continue to play a significant role in the future of transportation.
