> AC / DC On Board Charger

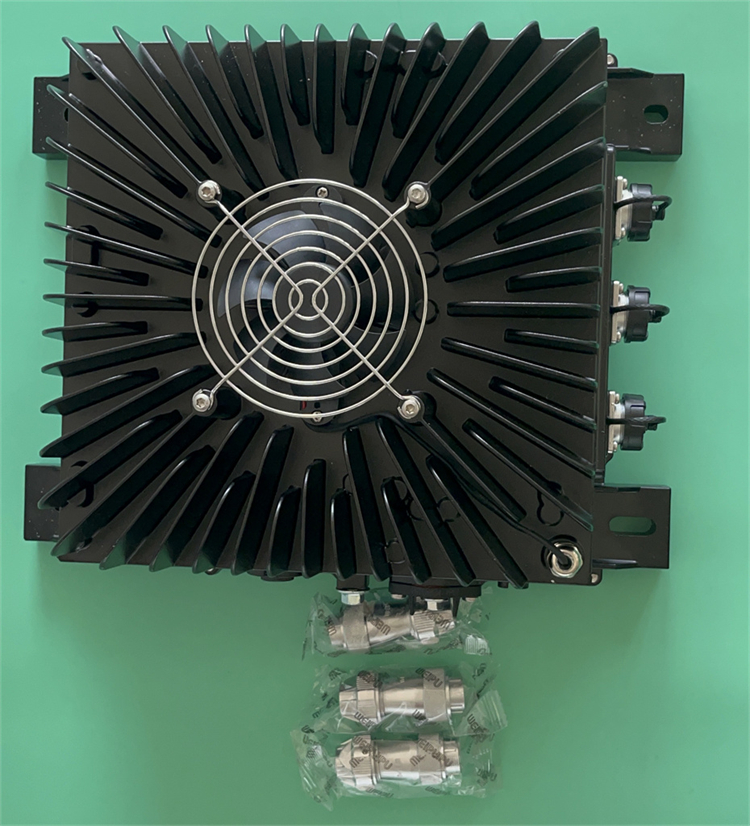

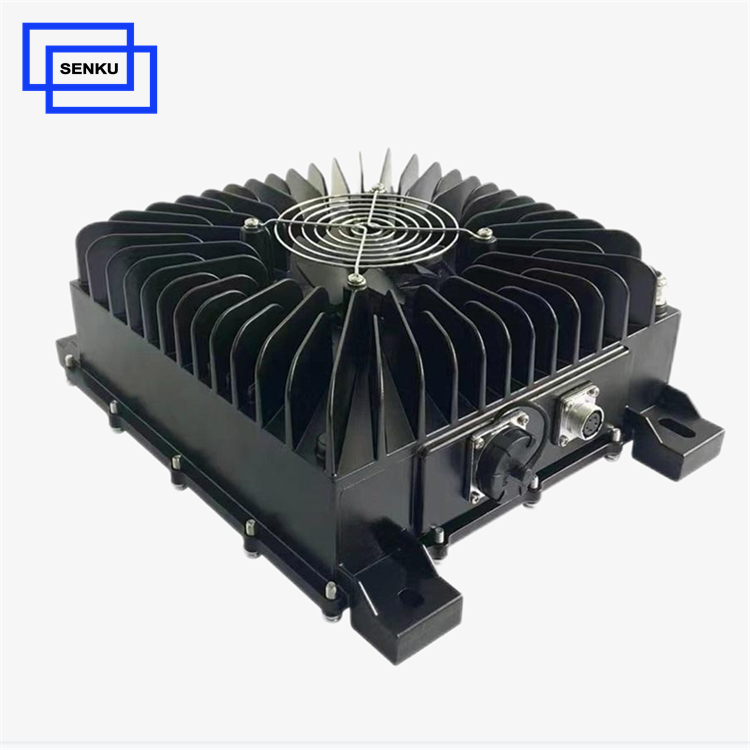

4KW 80V AC to DC On Board Charger
- Input: 90～265VAC / 18A
- Rated Power: 4KW
- Output voltage: 0～105V DC
- Output current: 0～50A
- Product description: The 4kw 72v lithium ion battery charger application are widespread and include electric vehicles like cars, trucks, and motorcycles, as well as public transportation like electric buses and trains. In
Product introduction
Part No
Input Voltage Range
Rated Output Power
Rated Output Voltage
Output Voltage Range
Output Current Range
SK-L080V4000
90～265VAC
4KW
80V DC
0～105VDC
0～50A
Basic Data of 4KW OBC charger
| Specification | Model | SK-LXXXV4000 (SK-L080V4000) |
| AC Input | Phases/ Lines | 1-phase;Single Phase |
| Input Voltage /Current | 95V - 265V AC /≤18A | |
| Frequency | 45Hz-65Hz | |
|
DC Output |
Output Power |
2KW @ 220VAC |
|
Output Voltage |
0～105VDC (Rated 80V) |
|
|
Output Current |
0～50A |
|
|
Others |
Operating noise | ≤60dB |
|
CAN BUS |
Support (Baud Rate 125Kbps、250Kbps、500Kbps optional) | |
| Cooling Method | Fan Cooling | |
| Dimension |
328*260*112mm |
|

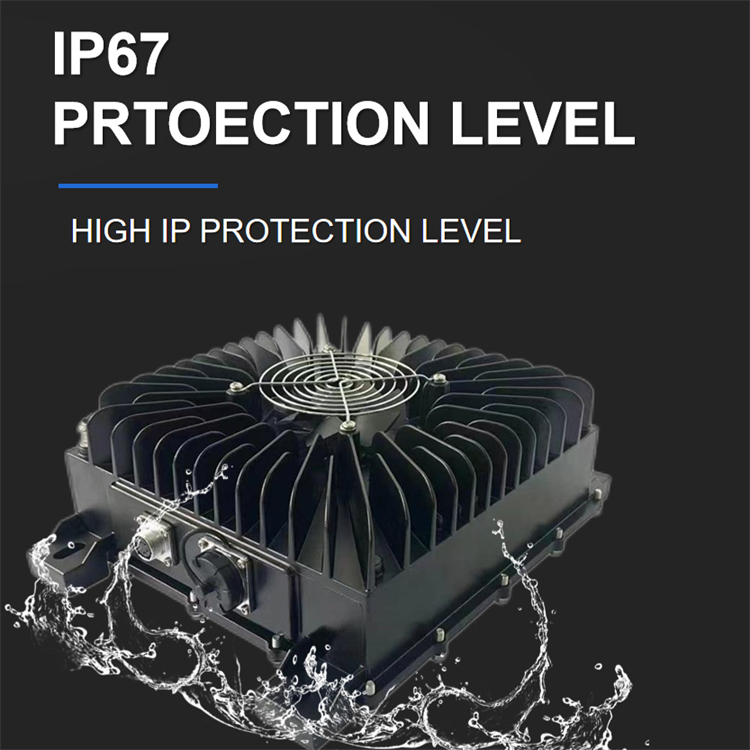

| IP Level | IP 67 |
More specification of this 4KW OBC charger, please contact our sales.
Application of 4KW OBC charger
On-board charger (OBC) is a kind of power electronic equipment in electric cars, which converts AC power from external power source (such as residential socket or AC charging station) into DC power to charge vehicle battery pack.
The 4KW OBC chargerapplications of an electric vehicle onboard charger are widespread and include personal electric vehicles like cars, trucks, and motorcycles, as well as public transportation like electric buses and trains. Industrial applications for electric vehicle onboard chargers include charging electric forklifts, golf carts, and other industrial vehicles. Overall, electric vehicle onboard chargers are a critical component in the growing electric vehicle industry and will continue to play a significant role in the future of transportation.
