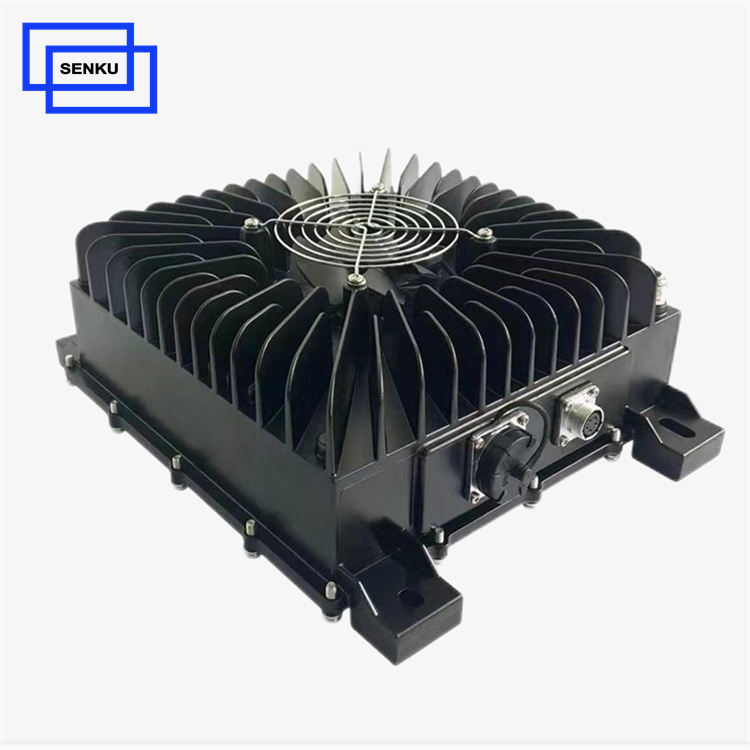

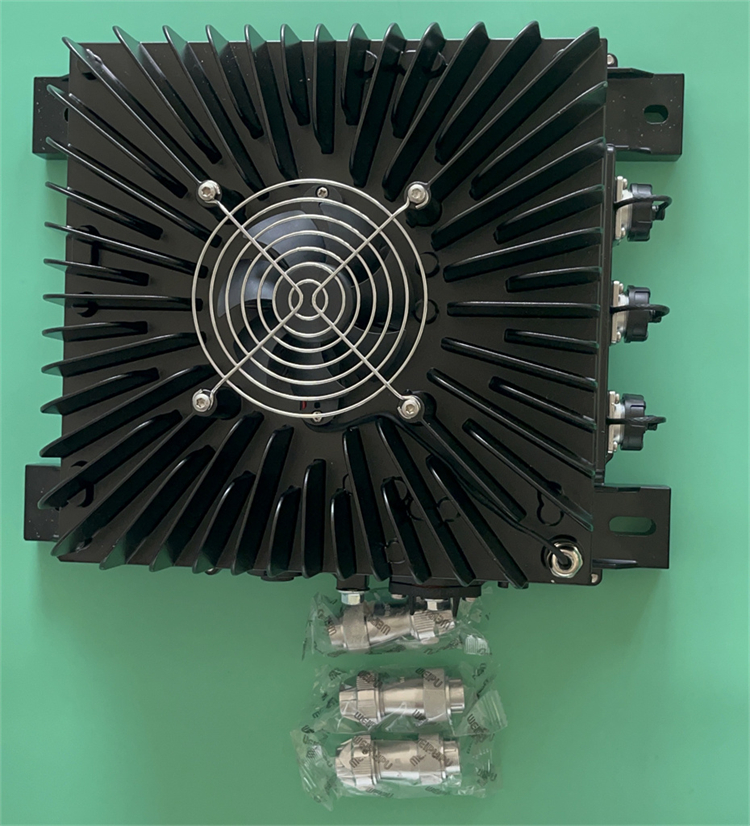

> AC / DC On Board Charger

Input: 90～265VAC / 18A
Rated Power: 4KW
Output voltage: 0～450V DC
Output current: 0～12A
Product description: The 4KW 360V On Board Charger applications are widespread and include cars, trucks, and motorcycles, as well as public transportation like electric buses and trains. Industrial applications for electr
Inquiry

Part No	Input Voltage Range	Rated Output Power	Rated Output Voltage	Output Voltage Range	Output Current Range
SK-L360V4000	90～265VAC	4KW	360V DC	0～450VDC	0～12A

√ AC to DC Conversion: converts AC power from a charging station into DC power that can be used to charge the vehicle's batteries.

√ Excellent cost-effectiveness ratio: By combining cutting-edge components into a compact design.

√ Constant power and constant voltage state automatic conversion, effective saving time

√ Compact and lightweight design for ease of installation.

√ Fan cooling

√CAN communication

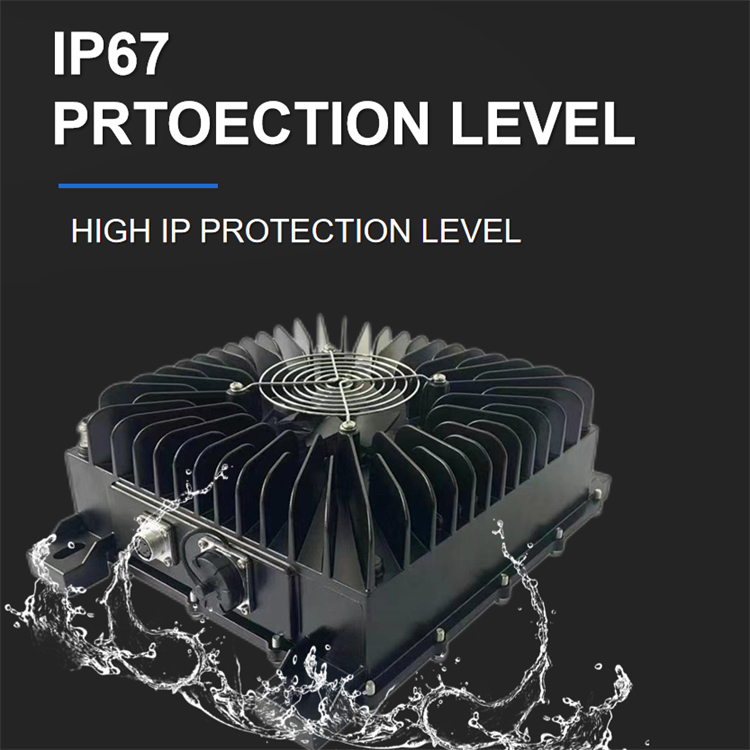

√ IP67 protection

Specification	Model	SK-LXXXV4000 (SK-L360V4000)
AC Input	Phases/ Lines	1-phase;Single Phase
	Input Voltage /Current	95V - 265V AC /≤18A
	Frequency	45Hz-65Hz
DC Output	Output Power	4KW @ 220VAC
	Output Voltage	0～450VDC (Rated 360V)
	Output Current	0～12A
Others	Operating noise	≤60dB
	CAN BUS	Support (Baud Rate 125Kbps、250Kbps、500Kbps optional)
	Cooling Method	Fan Cooling
	Dimension	328260112mm
	IP Level	IP 67
