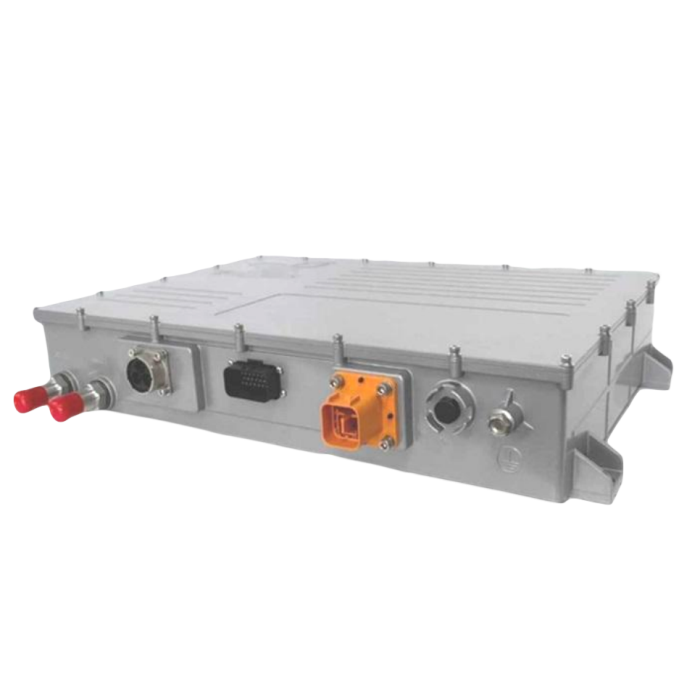

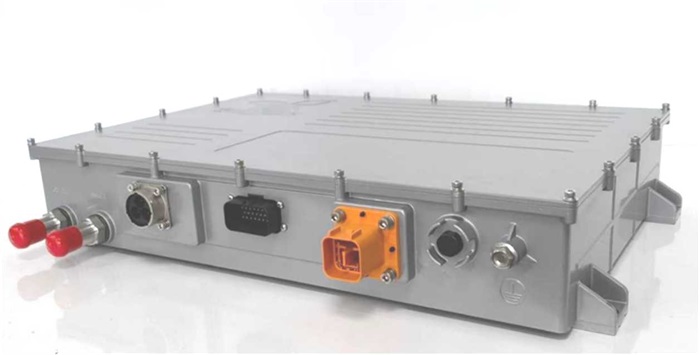

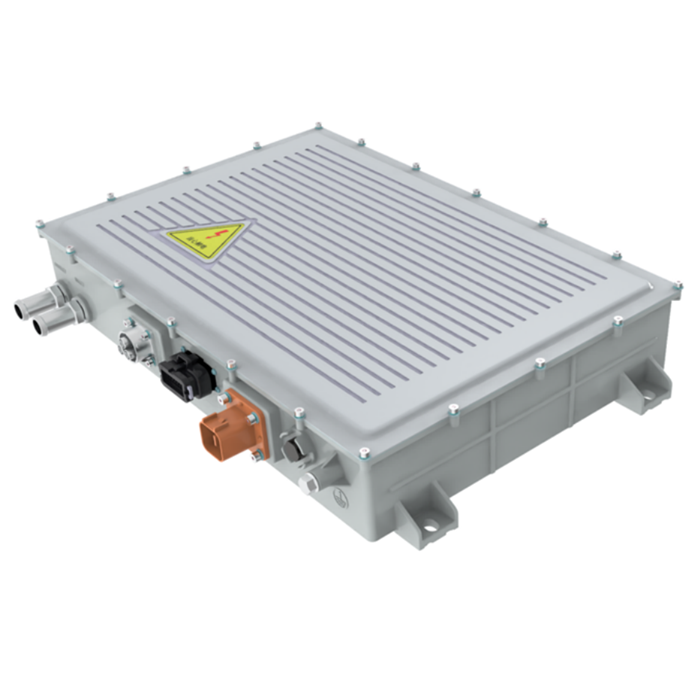

3Phase 20KW Series AC to DC EV OBC Charger
- Input : 3phase 152~456VAC /≤32A
- Rated Power: 20KW
- Output voltage: Subject to Battery Voltage
- IP Level: IP 67
- Product description: 22kw on board charger are widely used in electric cars, trucks as well as public transportation vehicles such as electric buses and trains. The industrial applications of 6.6 kw on board chargers incl
Product introduction
Model list of SK-LXXXV20000 22KW On Board Charger
Rated Output
Output Voltage Range
Output Current Range
Charger Model

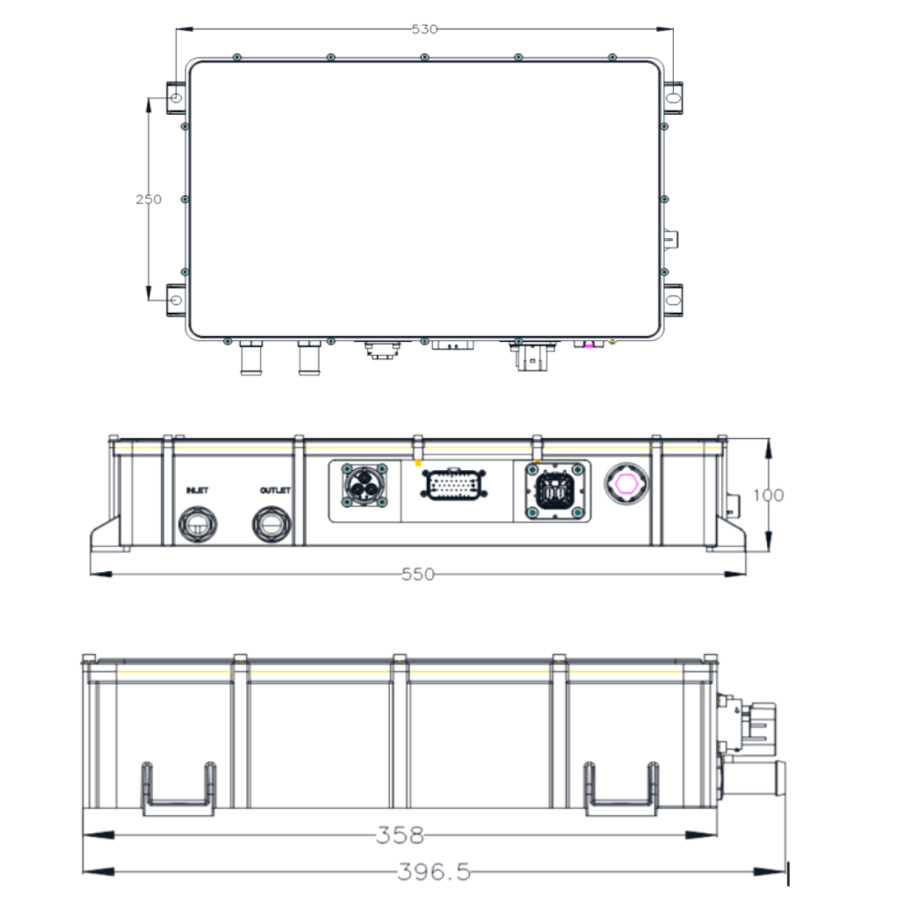

Dimension (L*W*H)
80V DC 240A
0~105V DC
0~240A
SK-L080V20000
550*396.5*100mm
108V DC 180A
0~135V DC
0~180A
SK-L108V20000
550*396.5*100mm
144V DC 132A
0~180V DC
0~132A
SK-L144V20000
550*396.5*100mm
360V DC 54A
0~500V DC
0~54A
SK-L360V20000
550*396.5*100mm
540V DC 36A
0~720V DC
0~36A
SK-L540V20000
550*396.5*100mm
700V DC 27A
0~850V DC
0~27A
SK-L700V20000
550*396.5*100mm
More specification of this 22KW On Board Charger, please contact our sales.
Application of 22KW On Board Charger
On-board charger (OBC) is a kind of power electronic equipment in electric cars, which converts AC power from external power source (such as residential socket or AC charging station) into DC power to charge vehicle battery pack.
The 22KW On Board Charger applications of an electric vehicle onboard charger are widespread and include personal electric vehicles like cars, trucks, and motorcycles, as well as public transportation like electric buses and trains. Industrial applications for electric vehicle onboard chargers include charging electric forklifts, golf carts, and other industrial vehicles. Overall, electric vehicle onboard chargers are a critical component in the growing electric vehicle industry and will continue to play a significant role in the future of transportation.
