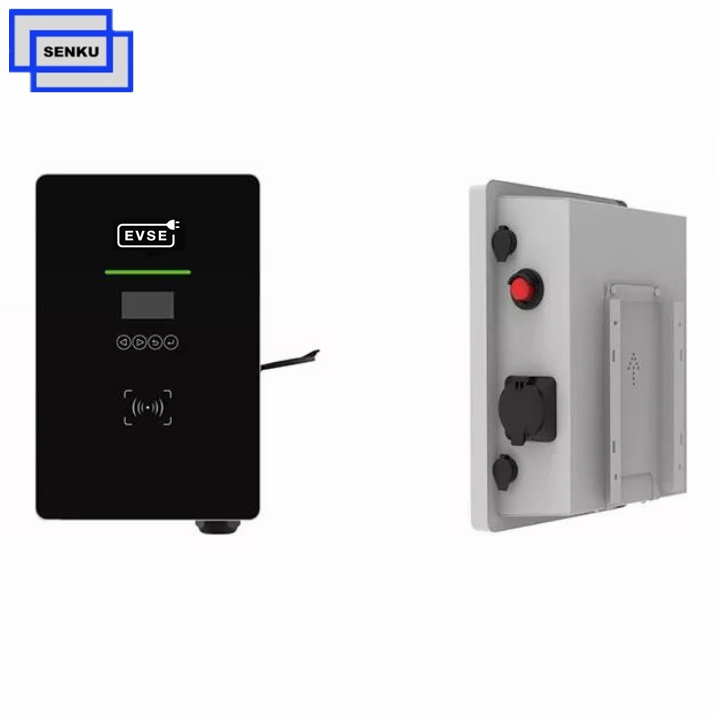

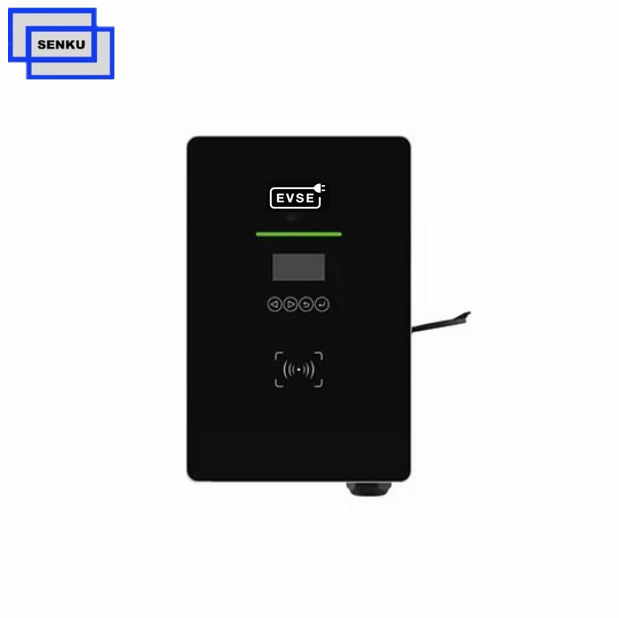

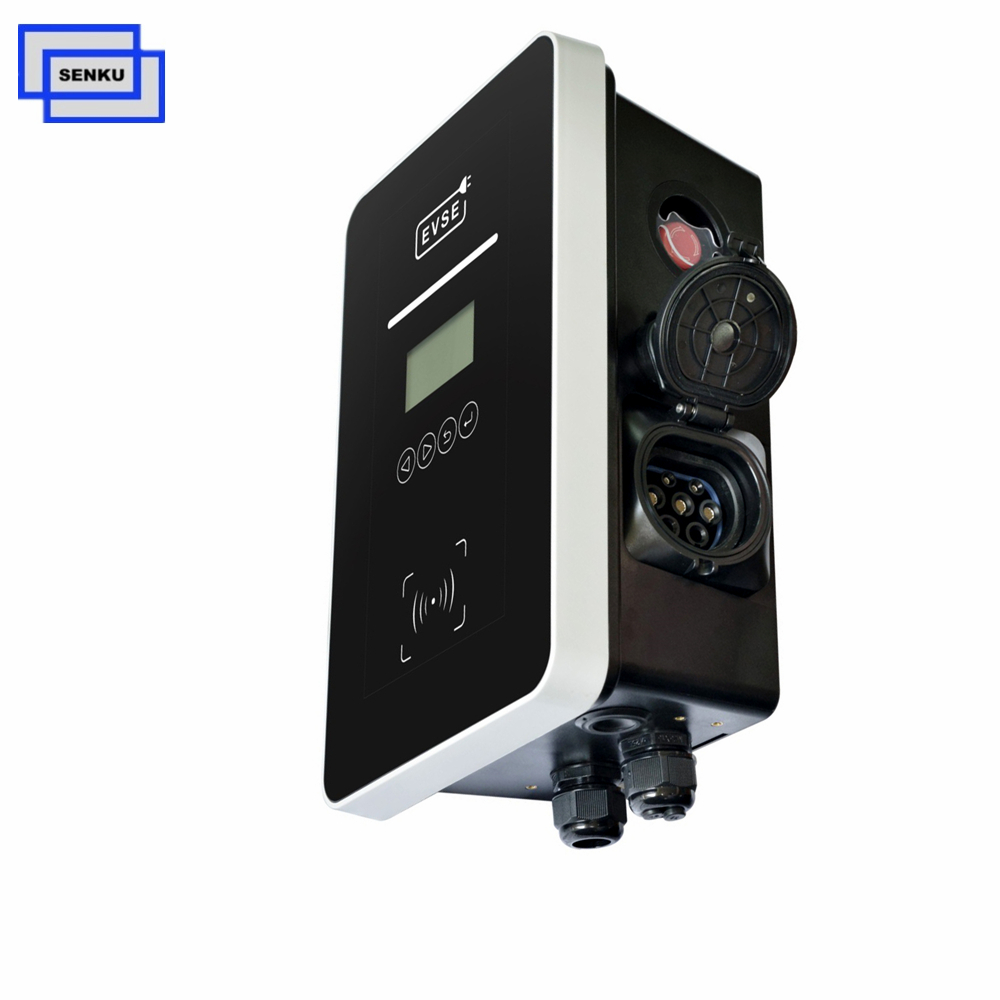

Public 22KW Type 2 Iec 62196 Plug Ocpp1.6 EV Charger
- Input Rating:3phase 400V±10%; 50Hz
- Rated Current: 32A
- Total Power:22KW
- MTBF:100,000 hours
- Product description: The 22kw public ev charger can be connected to a charging network with the help of ocpp gateway. Multiple public chargers in one location can be integrated in the network with only one internet commu
Product introduction
Features
1- High Intelligence
a)The mode3 22kw public ev chager can connected to the ocpp cloud server with the help of ocpp gateway.
b) Support use the RFID card and APP to charge.
c) The 22kw public EV Charger with LED light and screen to show the charging statu and real-time information. What's more, the commercail charger with the touch botton for easy operate.
2-High Flexibility
a) The 22kw public ev charger can set the output current by the touch button: 16A (11kw) / 32A(22kw)
b)With IP54 protection level.The charger can install both indoor and outdoor.
3-Aplication
a) Parking lot ; b) Restaurants; c) Commercail Centre; d) Destinations; e) Fleets; f) Apartments etc...
Specification |
Model |
SAC22K-BE-24 (Socket Type) |
AC Nominal Input |
Phases/ Lines |
3 phase + netural+ PE |
Voltage |
400VAC±10% |
|
Frequency |
50Hz |
|
AC Nominal Output |
Voltage |
400VAC±10% |
Current |
32A |
|
Power |
22KW |
|
Structure Design |
Housing Material |
Galvanized steel |
Front Panel |
Temper glass |
|
Installation Method |
Wall Mounted / Floor-stand |
|
Wall-mount Bracket |
Not necessary |
|
Charging Outlet |
1 charging Socket (Type 2) |
|
Cable Length |
0M cable |
|
LED Indicator |
Green/yellow/red color for different status |
|
LCD Screen |
Display of charging data |
|
Touch Buttons |
4 touch buttons for screen operation |
|
Emergency Stop Button |
Yes |
|
RFID Function |
Yes |
|
RFIDCard |
2pcs Mifare card |
|
Energy Meter |
MID certified Energy Meter |
|
RCD |
Type A (30mA AC) + 6mA DC |
|
Communication |
Gateway Network |
Wifi / Ethernet/3G/4G |
Communication Protocol |
OCPP 1.6 (JSON) (with the help of ocpp gateway) |
|
Environmental Index |
Operating Temperature |
-30~+50°C |
Working Humidity |
5%~95% without condensation |
|
Working Altitude |
<2000M |
|
Protection Grade |
IP54 |
|
Application Site |
Indoor / Outdoor |
|
Cooling Method |
Natural cooling |
|
Security Protection |
Multi le Protection |
Over/Under voltage protection, Overload protection, Short circuit protection, Current leakage protection, Grounding protection, Surge protection, Over/Under temperature protection protection, Grounding protection, Surge protection, Over/Under temperature protection |
MTBF |
100,000 hours |
|
Safety Standard |
IEC 61851-1: 2017, IEC 62196-2: 2016 |
|
Warranty |
1 years |
|
Package Information |
Dimension & Weight |
452*295*148MM & 10KG |
Option Parts |
Ground install |
Install Pile |
Option Parts |

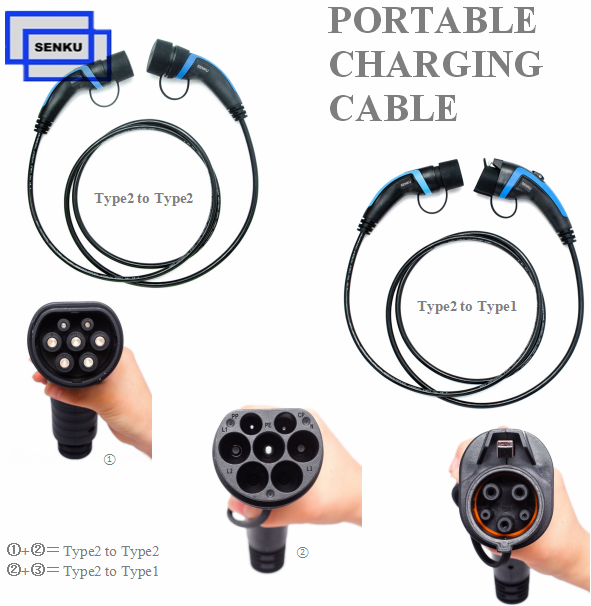

Mode3 charging cable |

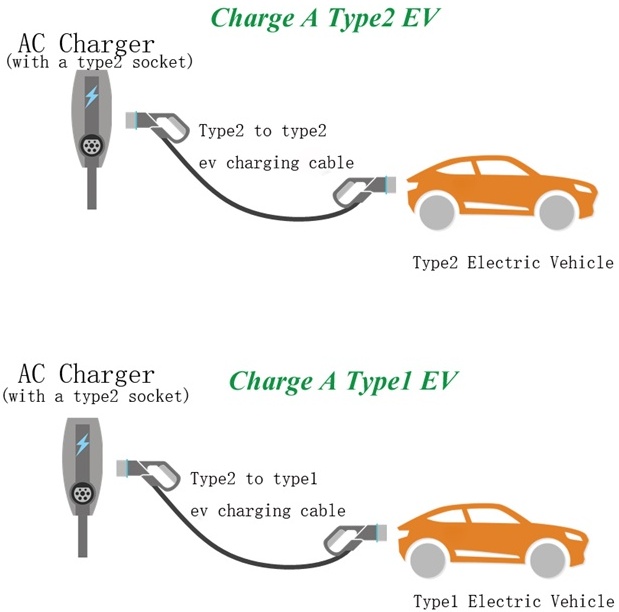

Type2 to Type2 / Type2 to Type1 (Click the following picture to check the details) |
Related Mode3 ev arging cable
