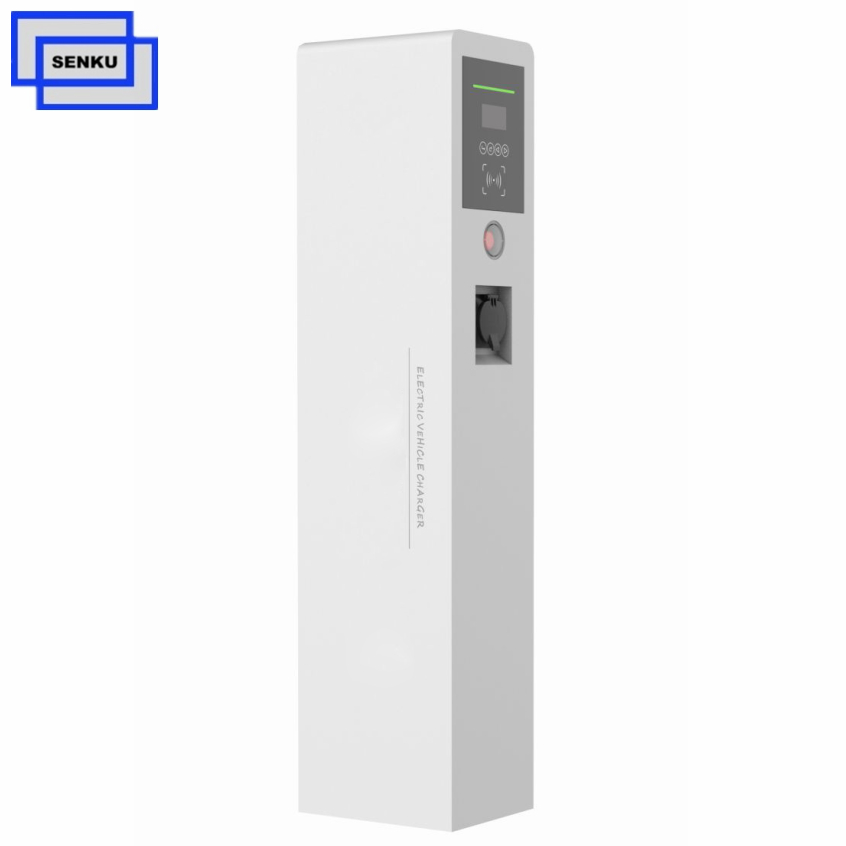

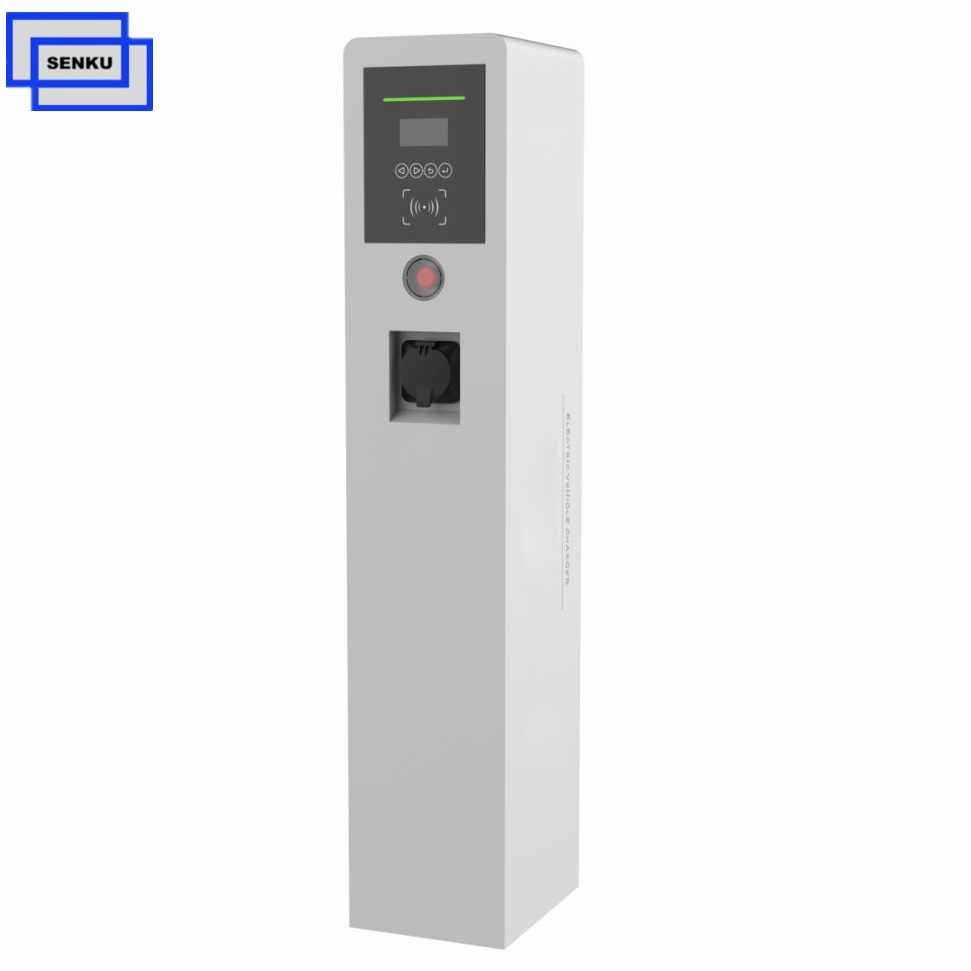

Public Dual 22KW Type 2 Iec 62196 Socket 44KW Ocpp1.6 EV Charger
- Input Rating：3phase 400V±10%; 50Hz
- Rated Current: 32A
- Total Power：44kw (2*22kw)
- MTBF：100,000 hours
- Product description: The 2*22kw electric vehicle fast charger with two charging interface, it can charging 2 electrical cars at the same time. Now this mode3 2*22kw electric vehicle fast charger is very popular in the Eur
Product introduction
Features
1- High Intelligence
a)The dual 22kw electirc vehicle charger with ocpp1.6J protocol, can connected to the customer ot other third party ocpp cloud server, it is the best solution for EV Charger business operators.
b) Support use the RFID card and APP to charge.
c) The 2*22kw electric vehicle fast charger with 2 screen, each connector with a screen for independent operate.
d)The charger with 2 pcs Type2 22kw charging socket, can charging both type2 and type1 electric vehicles with the help of the mode3 charging cable.
2-High Flexibility
a)The dual 22kw charger with can charging 2 electric vehicles at the same time.
b) The mode3 2*22kw eletric vehilcle fast charger can set the output current by the touch button: 16A/32A
c)With IP54 protection
level.The charger can install both indoor and outdoor.
3-Aplication
a) Parking lot ; b) Restaurants; c) Commercail Centre; d) Destinations; e) Fleets; f) EV charging station site etc...
|
Specification |
Model |
SAC44K-BE-24 |
|
AC Nominal Input |
Phases/ Lines |
3 phase + netural+ PE |
|
Voltage |
400VAC±10% |
|
|
Frequency |
50Hz |
|
|
AC Nominal Output |
Voltage |
400VAC±10% |
|
Current |
2*32A |
|
|
Power |
2*22KW |
|
|
Structure Design |
Housing Material |
Galvanized steel |
|
Front Panel |
Temper glass |
|
|
Installation Method |

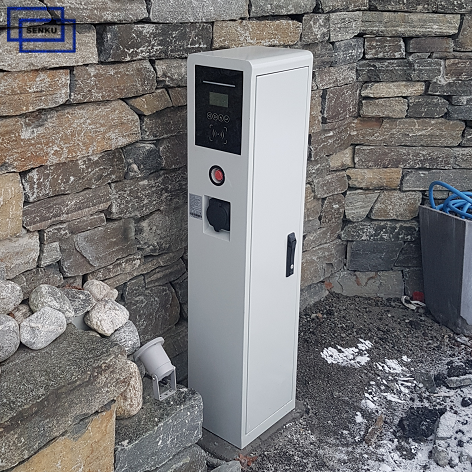

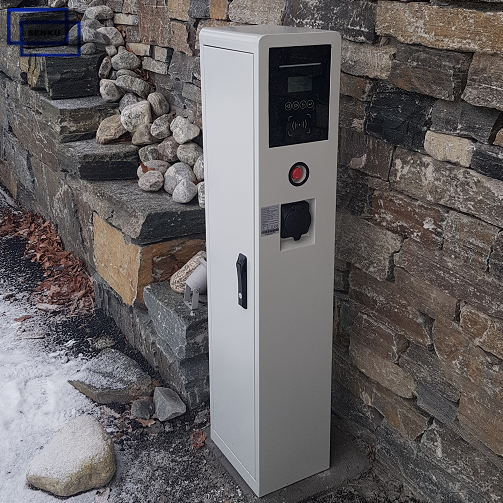

Wall Mounted / Floor-stand |
|
|
Wall-mount Bracket |
Not necessary |
|
|
Charging Outlet |
2 charging Socket (Type 2) |
|
|
Cable Length |
0cable |
|
|
LED Indicator |
Green/yellow/red color for different status |
|
|
LCD Screen |
Display of charging data (each socket with own operate screen and touch button) |
|
|
Touch Buttons |
4 touch buttons for screen operation |
|
|
Emergency Stop Button |
Yes |
|
|
RFID Function |
Yes |
|
|
RFIDCard |
2pcs Mifare card |
|
|
Energy Meter |
MID certified Energy Meter |
|
|
RCD |
Type A (30mA AC) + 6mA DC |
|
|
Communication |
Gateway Network |
Wifi / Ethernet/3G/4G |
|
Communication Protocol |
OCPP 1.6 (JSON) |
|
|
Environmental Index |
Operating Temperature |
-30~+50°C |
|
Working Humidity |
5%~95% without condensation |
|
|
Working Altitude |
<2000M |
|
|
Protection Grade |
IP54 |
|
|
Application Site |
Indoor / Outdoor |
|
|
Cooling Method |
Natural cooling |
|
|
Security Protection |
Multi le Protection |
Over/Under voltage protection, Overload protection, Short circuit protection, Current leakage protection, Grounding protection, Surge protection, Over/Under temperature protection protection, Grounding protection, Surge protection, Over/Under temperature protection |
|
MTBF |
100,000 hours |
|
|
Safety Standard |
IEC 61851-1: 2017, IEC 62196-2: 2016 |
|
|
Warranty |
1 years |
|
|
Package Information |
Dimension & Weight |
290*230*1200MM & 32.5KG |
|
Option Part |

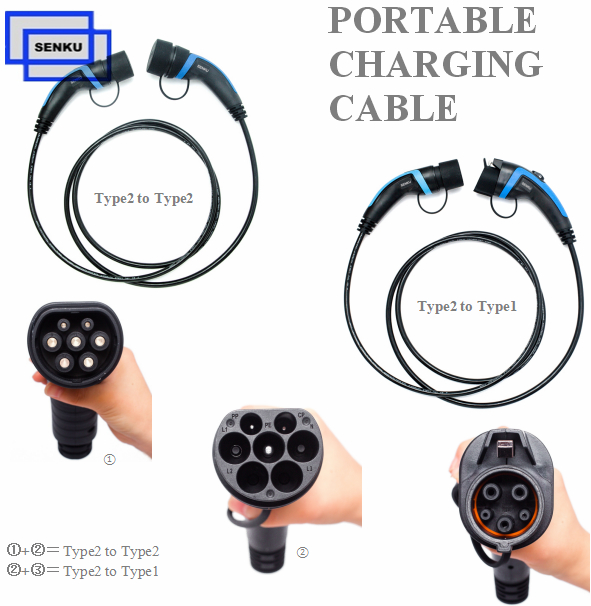

Mode3 ev charging cable |
Type2 to Type2 or Type1 to Type2 (Click the following picture to check the details) |
