> Home Ac Charger

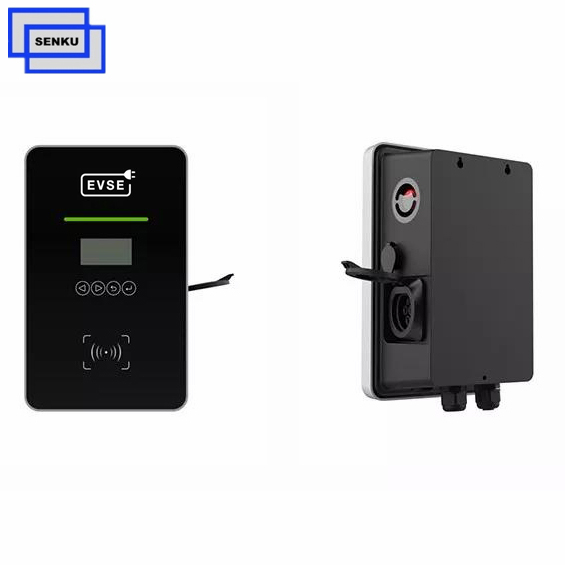

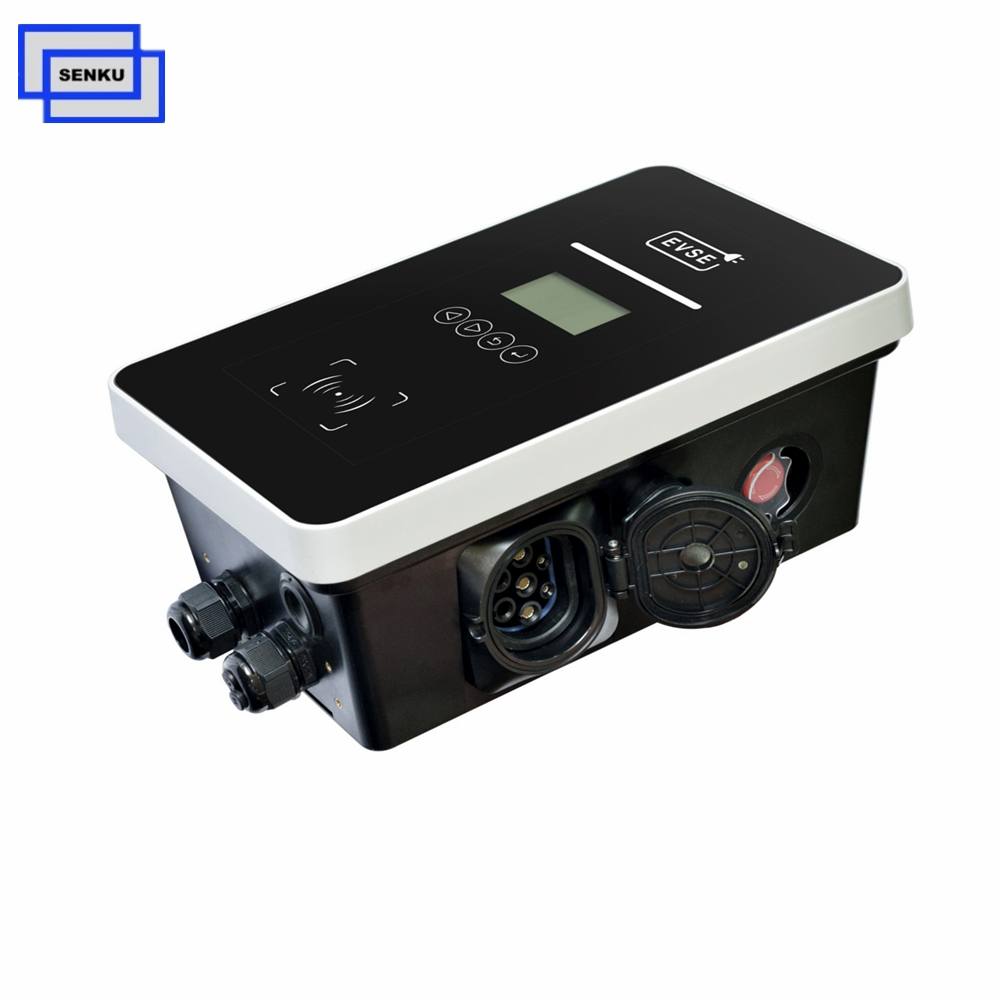

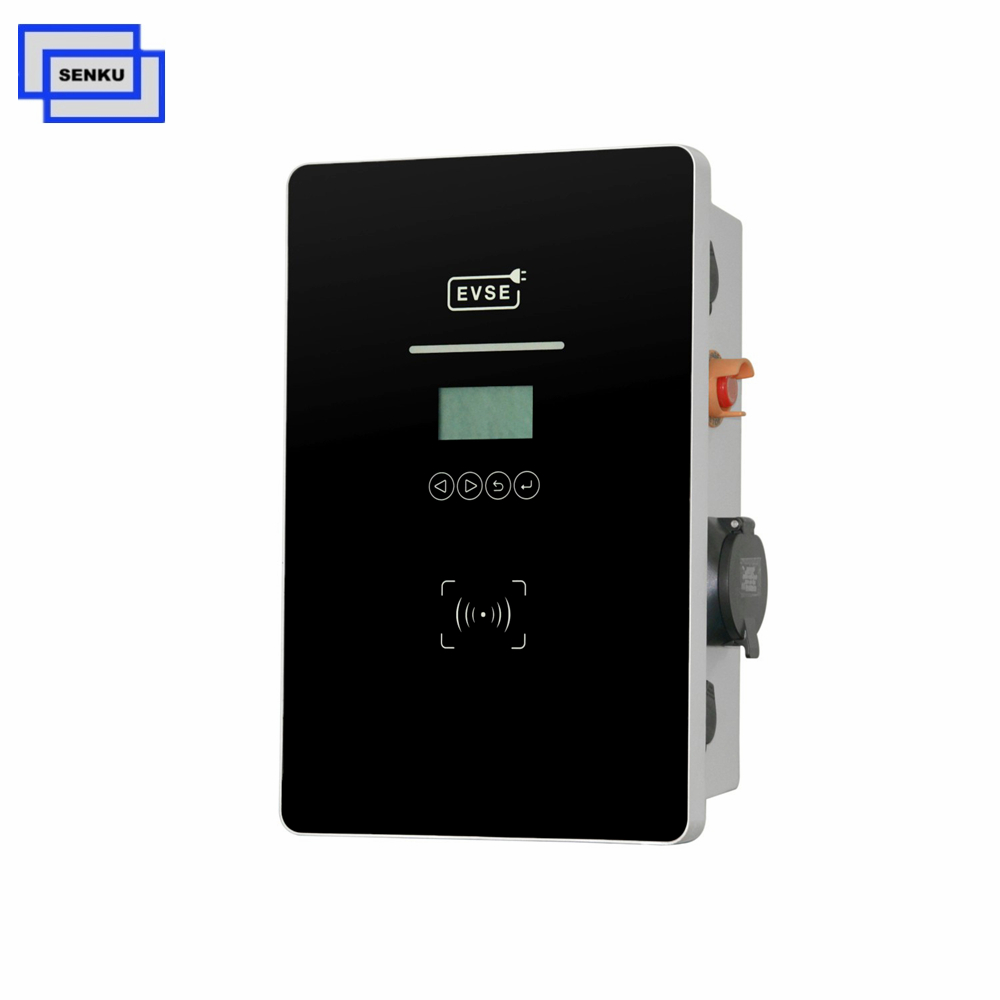

IEC 62196 7KW Type2 Basic Mode3 EV charger
- Input Rating：1phase 230V±10%; 50Hz
- Rated Current: 32A
- Total Power：7KW
- MTBF：100,000 hours
- Product description: The 7kw ev charging station is designed with a LCD screen, it can showing the real time charging information, it is friendly. And the charger with the touchable button, users can set the charging curr
Product introduction
Features
1- High Intelligence
a)The 7kw charging station support use the RFID card to start and stop charge.
c) The 7kw charging station with LED light and screen to show the charging statu and real-time information. What's more, the commercail charger with the touch botton for easy operate.
2-High Flexibility
a) The 7kw charging station can set the output current by the touch button: 16A (3.5kw) / 32A(7kw)
b)With IP54 protection level. The charger can install both indoor and outdoor.
3-Aplication
a) Residential Parking lot ; b) Home garage; c) Private Fleets; d) Apartments etc...
|
Specification |
Model |
AC7000-AE-06 |
|
AC Nominal Input |
Phases/ Lines |
1 phase + neutral+ PE |
|
Voltage |
230VAC±10% |
|
|
Frequency |
50Hz |
|
|
AC Nominal Output |
Voltage |
230VAC±10% |
|
Current |
32A |
|
|
Power |
7KW |
|
|
Structure Design |
Housing Material |
Galvanized steel |
|
Front Panel |
Temper glass |
|
|
Installation Method |
Wall Mounted / Floor-stand |
|
|
Wall-mount Bracket |
Not necessary |
|
|
Charging Outlet |
1 charging Socket (Type 2) (Charging Plug for option) |
|
|
Cable Length |
0M cable |
|
|
LED Indicator |
Green/Yellow/Red |
|
|
LCD Screen |
Display of charging data |
|
|
Touch Buttons |
4 touch buttons for operate |
|
|
Emergency Stop Button |
Yes |
|
|
RFID Function |
Yes |
|
|
RFIDCard |
2pcs Mifare card |
|
|
Energy Meter |
MID certified Energy Meter |
|
|
RCD |
Type A (30mA AC) + 6mA DC |
|
|
Environmental Index |
Operating Temperature |
-30~+50°C |
|
Working Humidity |
5%~95% without condensation |
|
|
Working Altitude |
<2000M |
|
|
Protection Grade |
IP54 |
|
|
Application Site |
Indoor / Outdoor |
|
|
Cooling Method |
Natural cooling |
|
|
Security Protection |
Multile Protection |
Over/Under voltage protection, Overload protection, Short circuit protection, Current leakage protection, Grounding protection, Surge protection, Over/Under temperature protection |
|
MTBF |
100,000 hours |
|
|
Safety Standard |
IEC 61851-1: 2017, IEC 62196-2: 2016 |
|
|
Warranty |
1 years |
|
|
Package Information |
Dimension & Weight |
356*221*136MM & 3KG |
|
Option Parts |

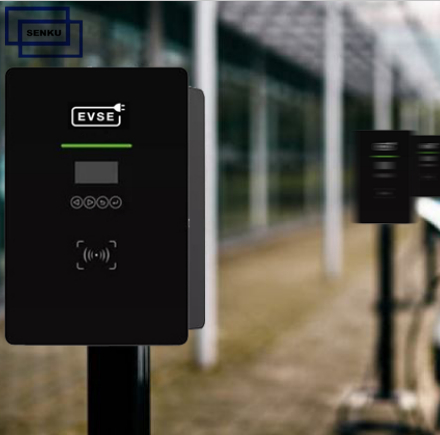

Ground Install |
|
|
Option Parts |

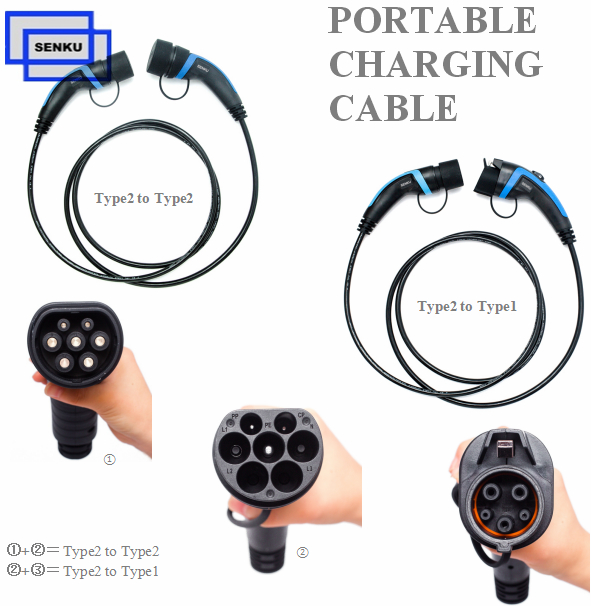

Mode3 ev charging cable |
Type2 to Type2 / Type2 to Type1 (Click the following picture to check the details) |
Related Mode3 charging cable
