150V-550VDC 60KW - 120KW DC EV Charger

Specification

Model

AC Nominal Input

Phases/ Lines

3-phase; 3P+N+PE

Input Voltage

260v-530V AC

Frequency

50Hz-60Hz

DC Nominal Output

DC Voltage Accuracy

<±0.5

Output Voltage/current

60kw @ 140A ; 150V-550V DC

90KW@200A ; 150V-550V DC

120KW@200A ; 150V-550V DC

Output Efficiency

>95% (Rated input and output)

Electrical

Specification

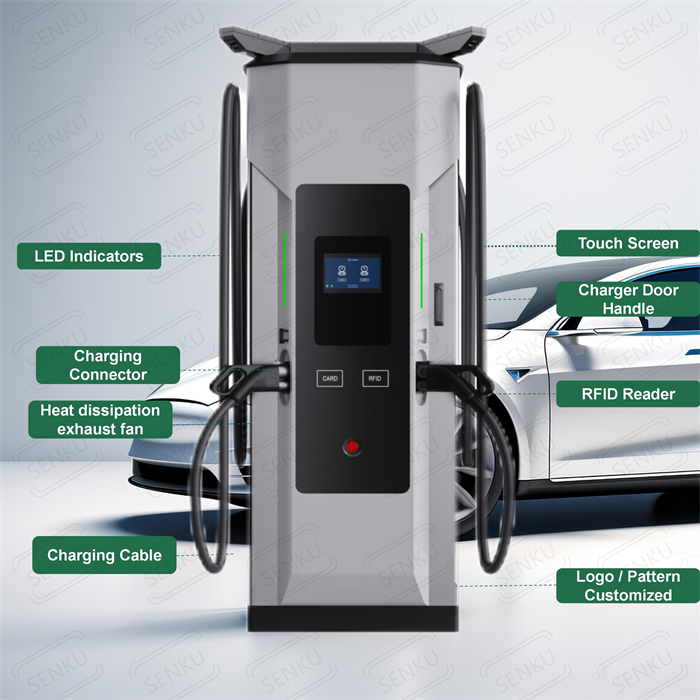

LED Indicator

Yes

LCD Touch Screen

Colorful 7" Touch screen

Emergency Stop Button

Yes (Red Color)

RFID Function

Yes (Authorized RFID cards can charged only)

RFID Card Quantity

2pcs Mifare card

Smart Phone APP

Yes (Support use the smart phone to charge and make payment)

Energy Meter

DC energy meter

Structure Design

Housing Material

Metal case

Installation Method

Floor-stand

Application scenes

Commercial / Public charging

Charging Outlet

Combo CCS2 / CHAdeMo / Combo CCS1 option one

Charging Outlet Quantity

1 or 2 option

Cable Length

5M cable

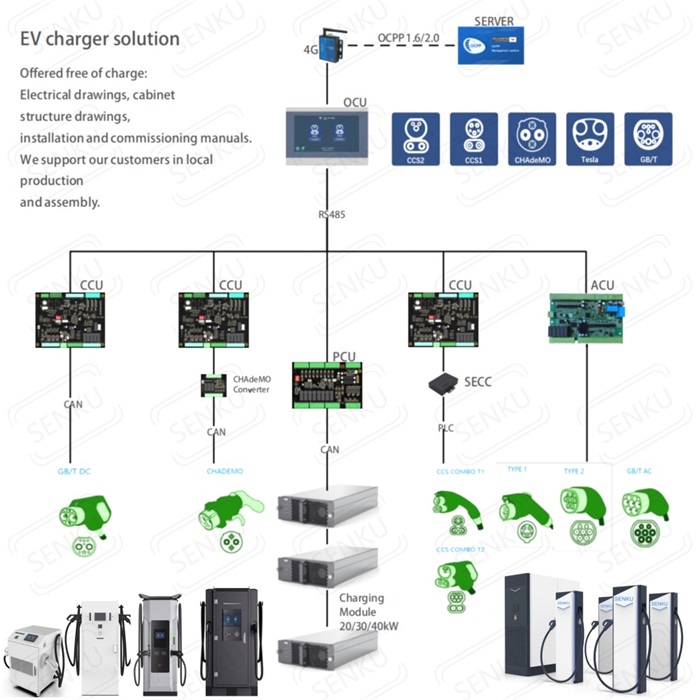

Communication

Network Method

Wifi; Ethernet; 4G

Communication Protocol

PLC; CAN

OCPP 1.6  JSON ( Charger with ocpp board inside)

Environmental

Index

Operating Temperature

-30~+50°C

Working Humidity

5%~95% without condensation

Working Altitude

<2000M

Protection Grade

IP65 / IK10

Application Site

Indoor/Outdoor

Cooling Method

Fan cooling

Security Protection

Multi le Protection

OverCurrent Protection, Over/ Under Volatge Protection,

Short Circuit Protection, Reverse Polarity Protection, OverTemperature Protection, Protect, Earth Connect Monitoring, Full automatic stop

MTBF

100,000 hours

Certificate Compliance

Complete charger comply with CE, TUV CE Certificated.

EN 61851-1:2011, EN 61851-23:2014, EN 61851-24:2014, EN55022 CLASS A

Warranty

1 years

Dimension

Dimension & Weight

700*700*1750 mm & 150KG (without power module)
