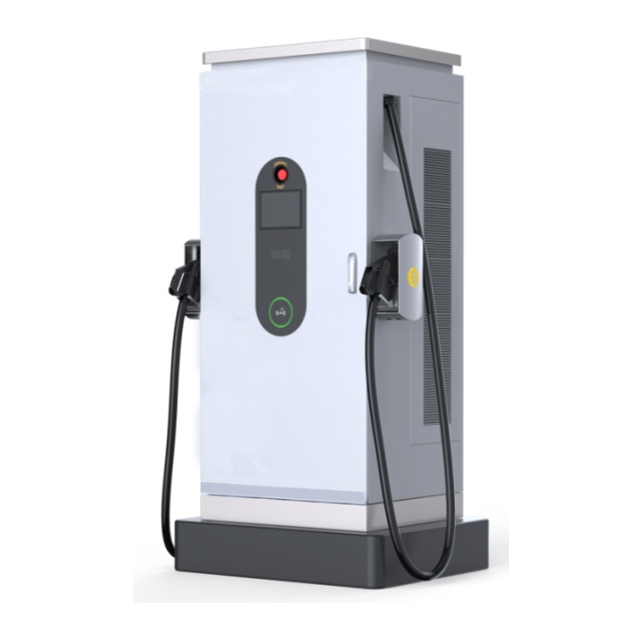

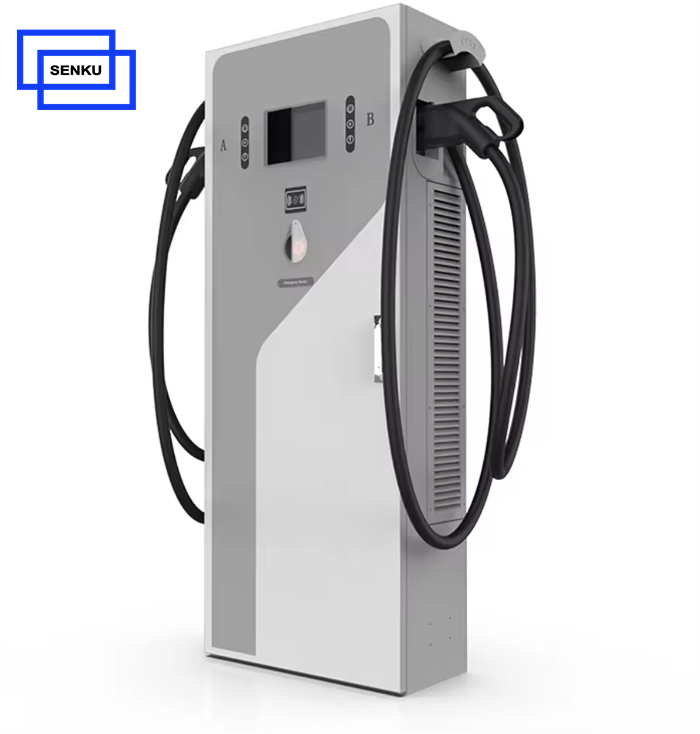

150V-1000VDC 60KW - 160KW DC EV Charger
- Rated Voltage: 260V-530VAC
- Rated output voltage(V): 150-750V
- Output Power: 60kW/80KW/120KW/160KW
- Output Current(A): 0~200A
- Product description: The dc charging station with high efficiency power module design, it can easy to configure for 60kw to 120kw to meet the different place power demand. It can mee the CCS2 CCS1 and Chademo standard. An
Product introduction
Standard Features
– CCS1 / CCS2 / CHADEMO Support
– Internet with Wifi/3G/4G/Ethernet; OCPP 1.6 compliant
– Ready to use software embedded
– IP65 design for harsh environment
– Easily configure the output power form 60KW to 120KW
– TUV CE certificated
– Customized Brand Painting support
Widely application for business center, highways, public charging palce, gas stations etc...
Charger Possible configurations
Specification |
Model |
SEXP120K-HT |
AC Nominal Input |
Phases/ Lines |
3-phase; 3P+N+PE |
Input Voltage |
260v-530V AC |
|
Frequency |
50Hz-60Hz |
|
DC Nominal Output |
DC Voltage Accuracy |
<±0.5 |
Output Voltage/current |
60kw @ 75A ; 150V-1000V DC 80KW@100A ; 150V-1000V DC 120KW@150A ; 150V-1000V DC 160KW@200A; 150V-1000V DC |
|
Output Efficiency |
>95% (Rated input and output) |
|
Electrical Specification |
LED Indicator |
Yes |
LCD Touch Screen |
Colorful 7" Touch screen |
|
Emergency Stop Button |
Yes (Red Color) |
|
RFID Function |
Yes (Authorized RFID cards can charged only) |
|
RFID Card Quantity |
2pcs Mifare card |
|
Smart Phone APP |
Yes (Support use the smart phone to charge and make payment) |
|
Energy Meter |
DC energy meter |
|
Structure Design |
Housing Material |
Metal case |
Installation Method |
Floor-stand |
|
Application scenes |
Commercial / Public charging |
|
Charging Outlet |
Combo CCS2 / CHAdeMo / Combo CCS1 option one |
|
Charging Outlet Quantity |
1 or 2 option |
|
Cable Length |
5M cable |
|
Communication |
Network Method |
Wifi; Ethernet; 4G |
Communication Protocol |
PLC; CAN |
|
OCPP 1.6 JSON ( Charger with ocpp board inside) |
||
Environmental Index |
Operating Temperature |
-30~+50°C |
Working Humidity |
5%~95% without condensation |
|
Working Altitude |
<2000M |
|
Protection Grade |
IP65 / IK10 |
|
Application Site |
Indoor/Outdoor |
|
Cooling Method |
Fan cooling |
|
Security Protection |
Multi le Protection |
OverCurrent Protection, Over/ Under Volatge Protection, Short Circuit Protection, Reverse Polarity Protection, OverTemperature Protection, Protect, Earth Connect Monitoring, Full automatic stop |
MTBF |
100,000 hours |
|
Certificate Compliance |
Complete charger comply with CE, TUV CE Certificated. EN 61851-1:2011, EN 61851-23:2014, EN 61851-24:2014, EN55022 CLASS A |
|
Warranty |
1 years |
|
Dimension |
Dimension & Weight |
700*700*1750 mm & 150KG (without power module) |
