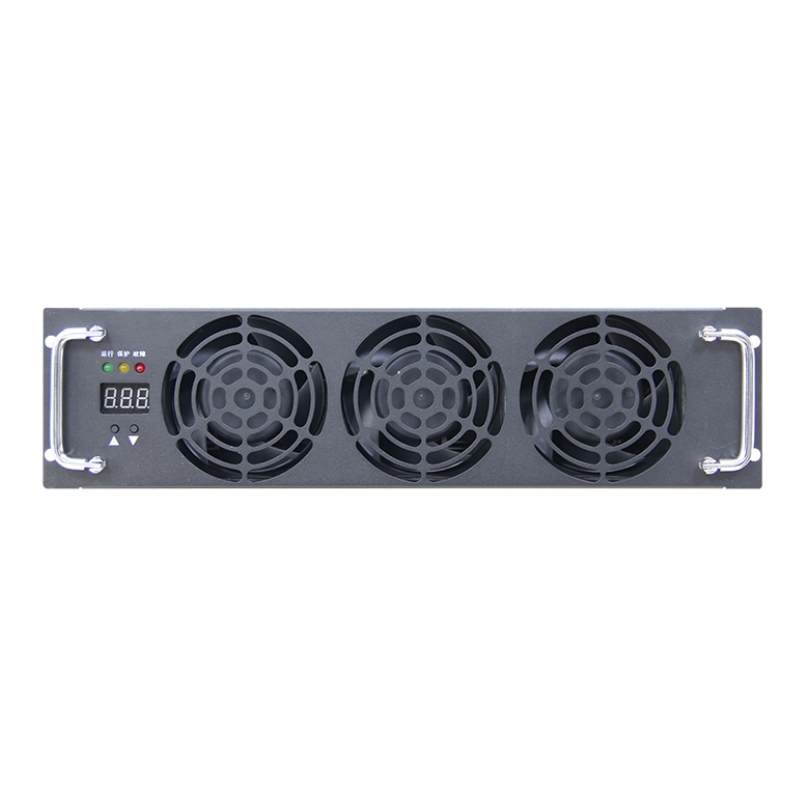

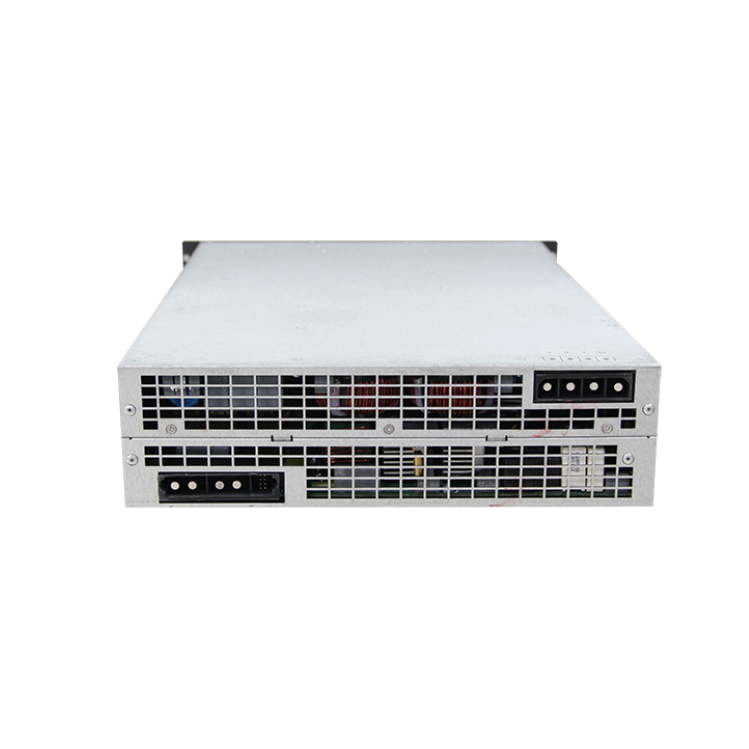

Electric Vehicle Charging Stations 40KW AC DC Rectifier
- Input Voltage: 285~475V,rated voltage380V AC
- Output Current: 2~143A
- Output Volatge: 150-1000V DC
- Total Power: 40KW
- Product description: This 40KW Electric Vehicle Charging Stations AC DC Rectifieris a high-efficiency, high-power density AC/DC module specially developed by Senku for EV fast charger. It supports 285VAC-475VAC input,
Product introduction
Electric Vehicle Charging Stations 40KW AC DC Rectifier
This 40KW Electric Vehicle Charging Stations AC DC Rectifiers a high-efficiency, high-power density AC/DC module specially developed by Senku for EV fast charger. It supports 285VAC-475VAC input, and the maximum power is 40KW (constant power range 280-1000VDC).
The 40KW Electric Vehicle Charging Stations AC DC Rectifier communicates with the main monitoring through the CAN bus, and realizes the parameter setting of the charging module through the communication with the main monitoring, collects the operating parameters of the charging module, and controls the working state of the AC DC Rectifier.
Model |
SENKU-40KW 1000V AC DC RECTIFIER (SK-40K1000) |
Input Feature |
|
Operating Voltage(AC) |
285~475V,rated voltage380V |
Input Frequency(HZ) |
45~55 |
Power Factor |
Full load≥0.99 |
THD |
Full load≤5% |
Standby Power Consumption |
<13W |
Output Feature |
|
Output Voltage Range(DC) |
150~1000 |
Max output current(A) |
143 |
Output constant power range |
280~500VDC,500~1000VDC |
Communication Protocol |
CAN |
Safety |
|
Certification |
CE |

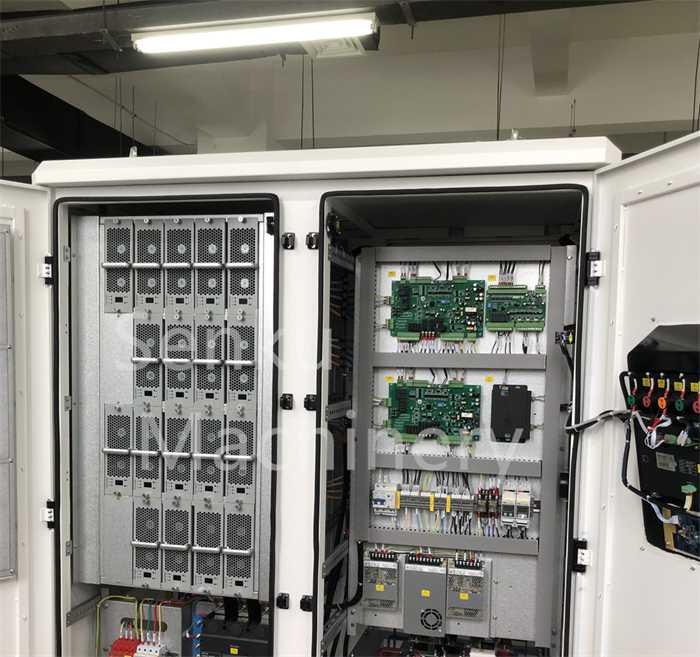

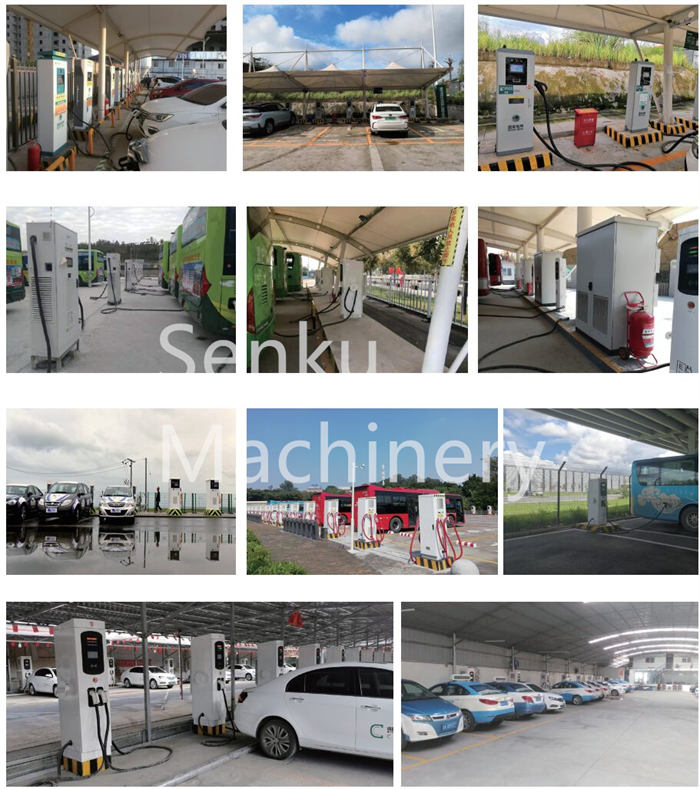

Electric Vehicle Charging Stations 40KW AC DC Rectifier Application
![CCS Electric Vehicle Charging Stations 40KW AC DC Rectifier CCS Electric Vehicle Charging Stations 40KW AC DC Rectifier](/Uploads/image/20221115/20221115124135_19430.jpg)

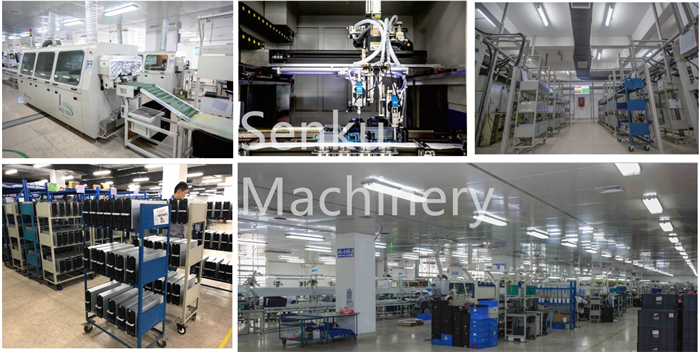

Workshop Picture

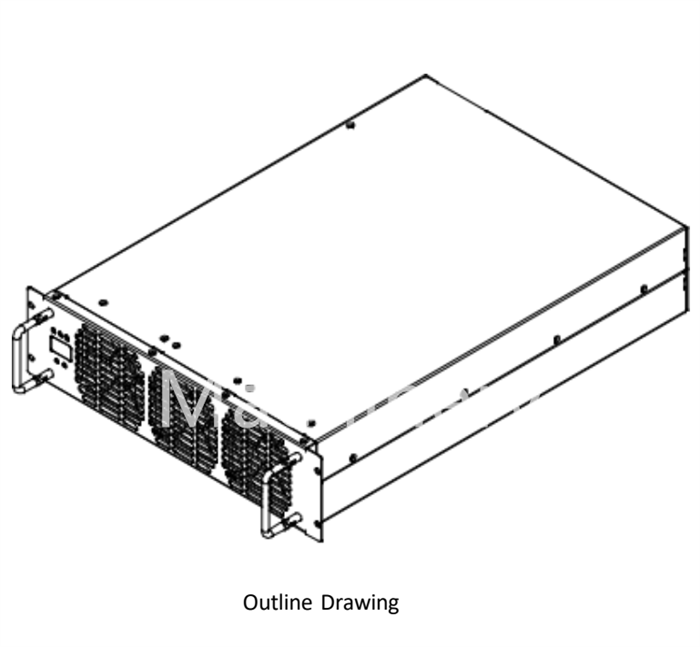

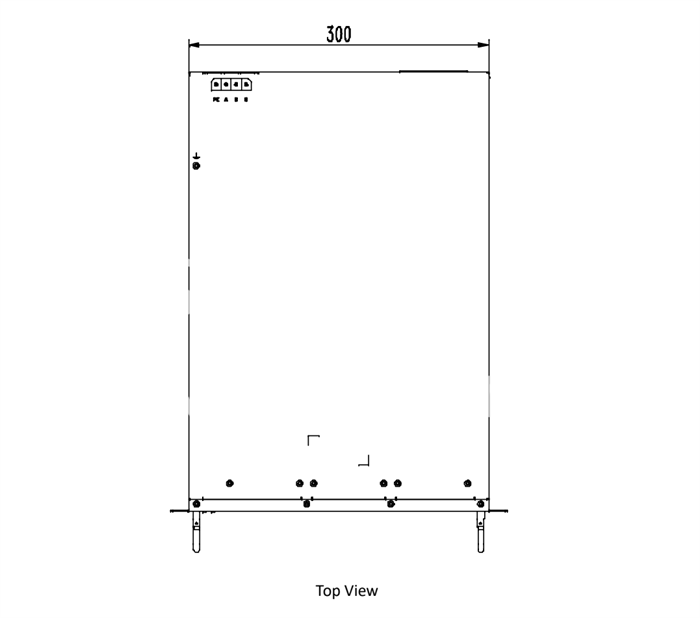

Electric Vehicle Charging Stations 40KW AC DC Rectifier Dimension
Tag:#ac dc rectifier, #manufacturers, #factories, #electric vehicle charging stations
