> EV Charging Accessories

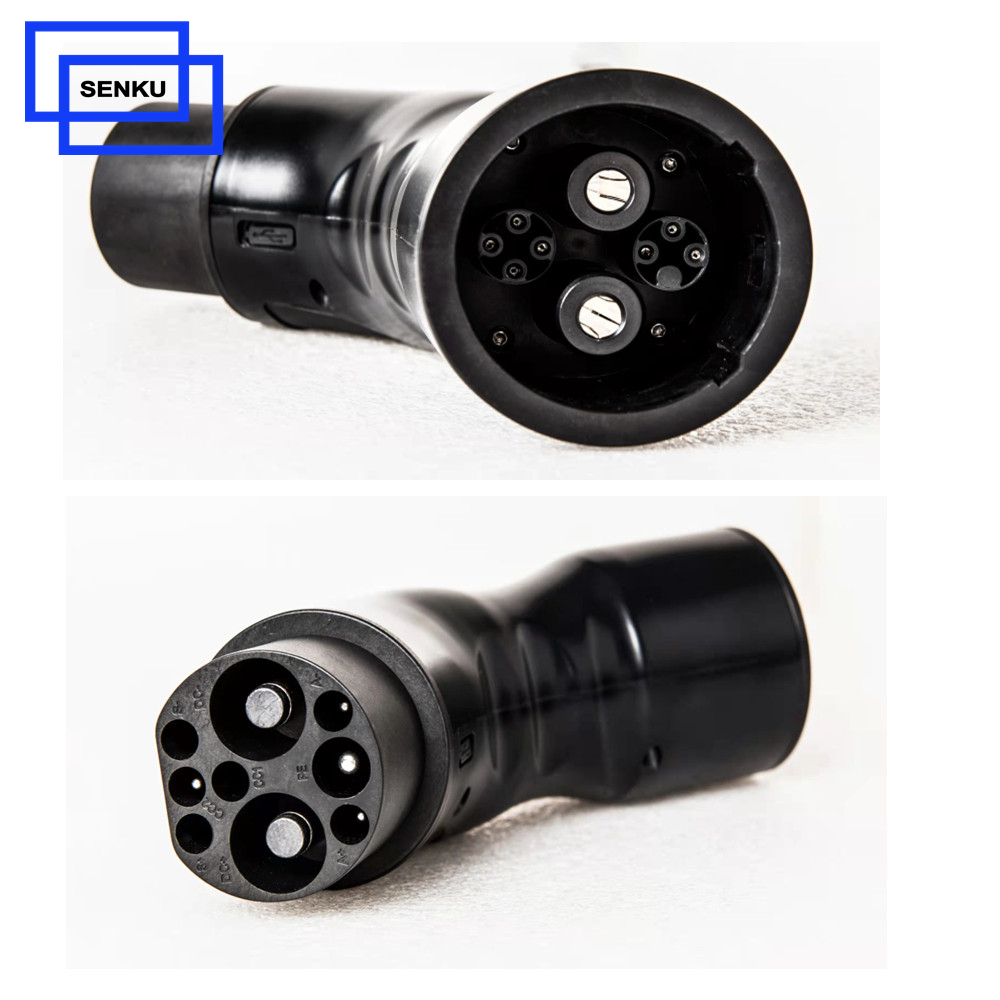

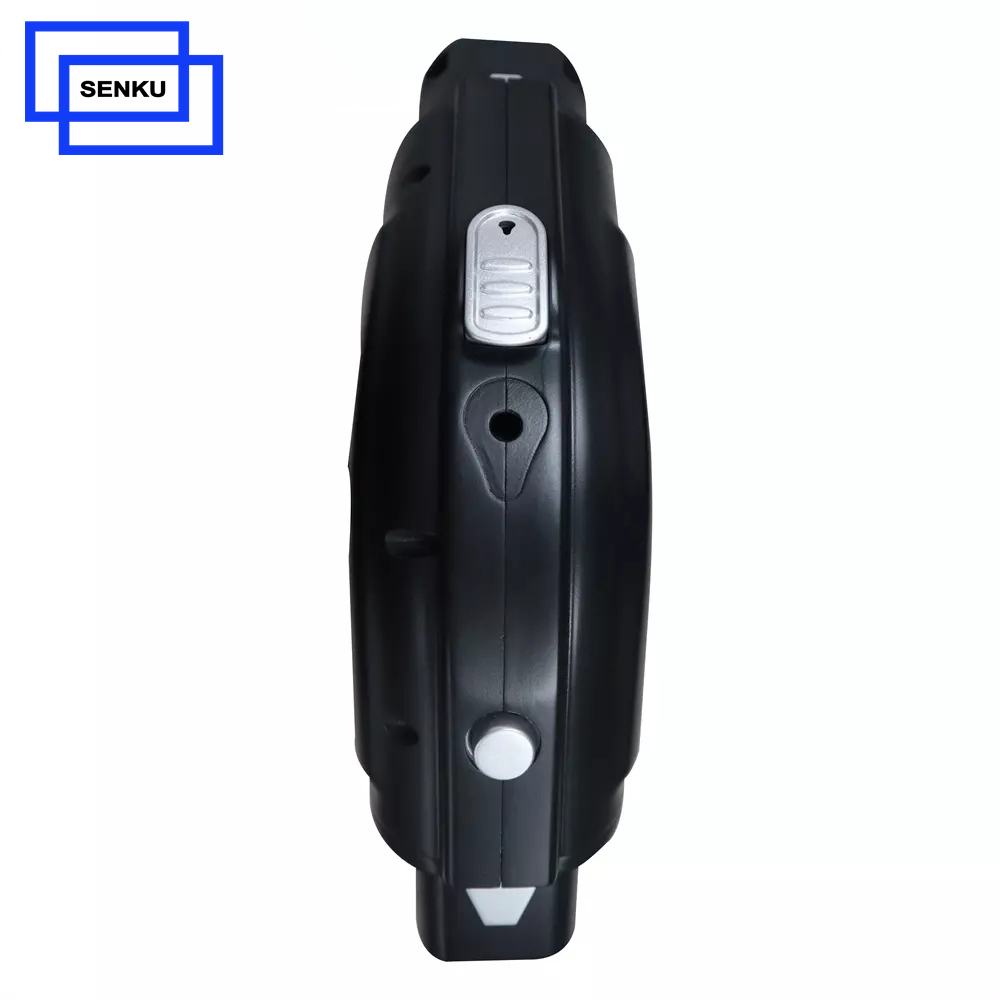

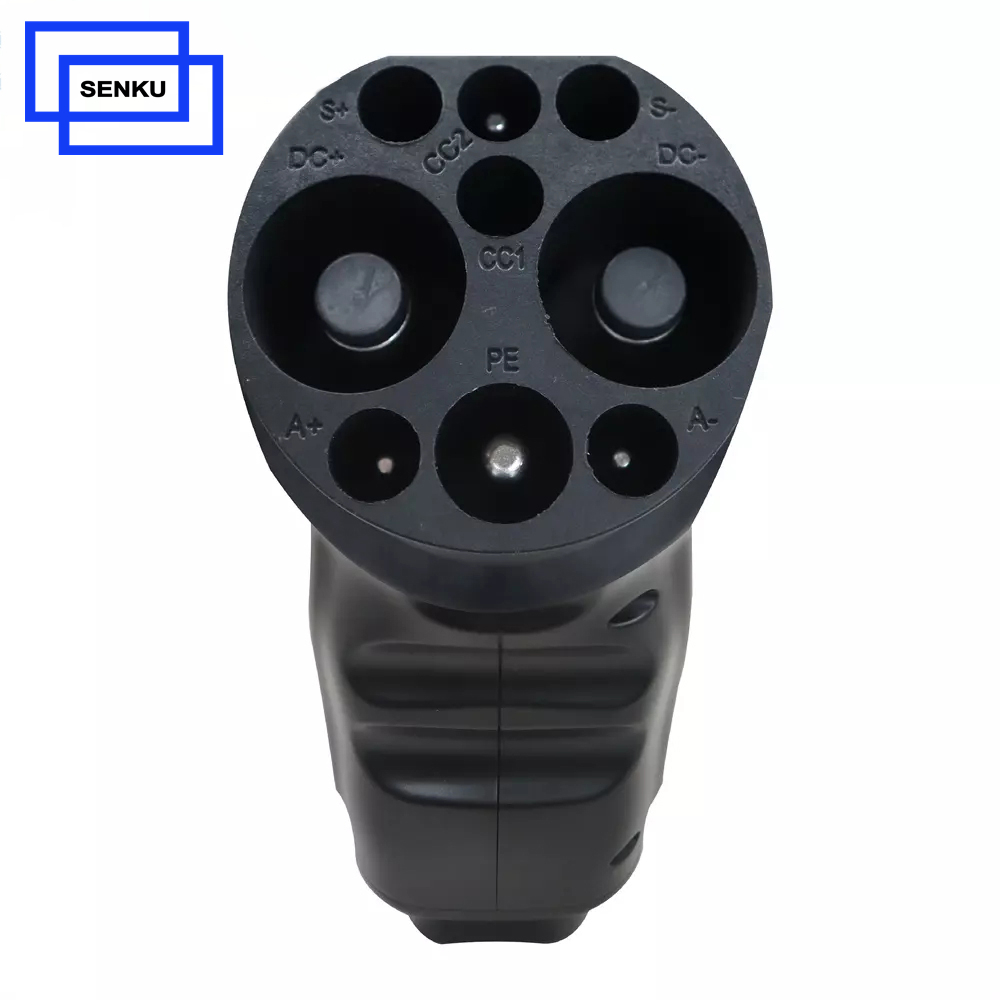

Electric Car 125A CHADEMO Plug to GBT Adaptor
- Rated Current: 125A
- Rated Voltage: 1000V DC
- Certificate: CE
- IP Level: IP54

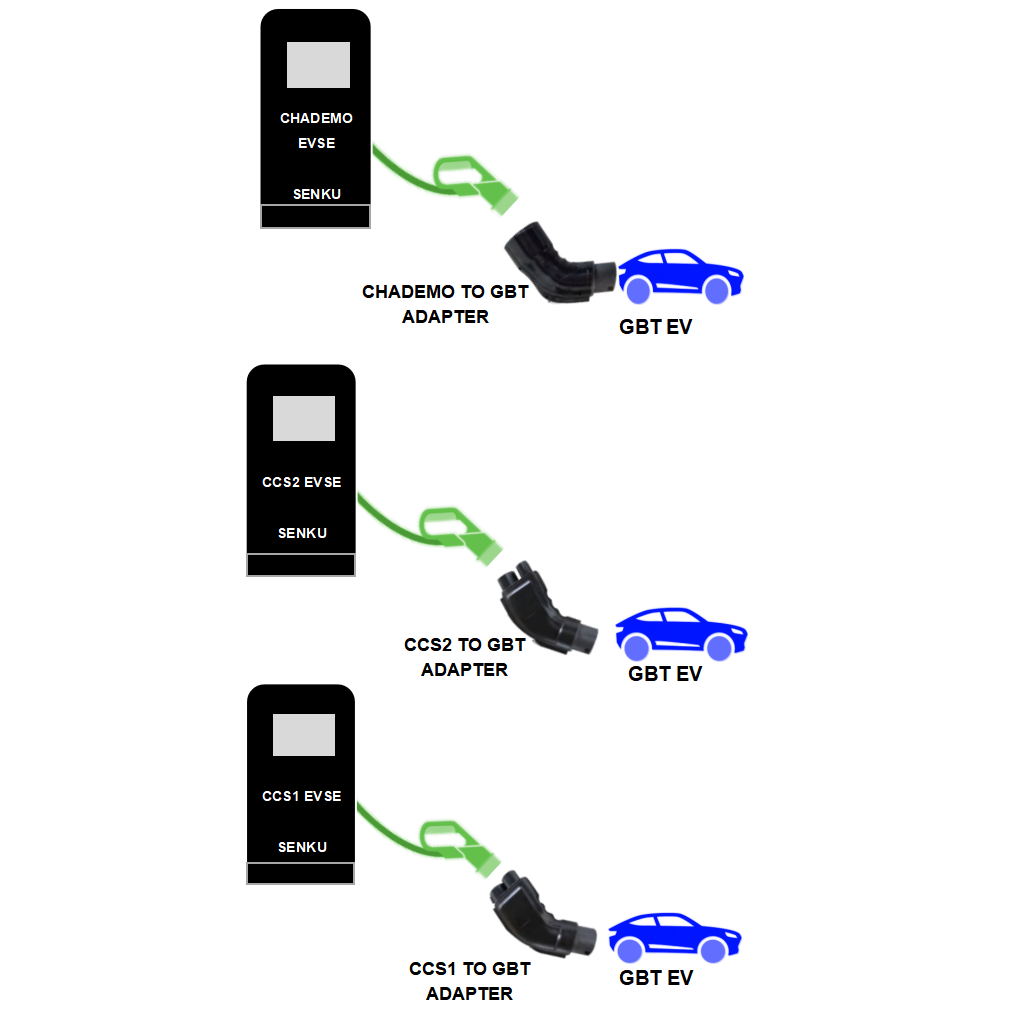

- Product description: The DC CHADEMO to GBT Adapter is use to charge a China electric vehicle on a CHADEMO charging station.
Product introduction
Electric Car 125A CHADEMO Plug to GBT Adaptor
Technical Data
| Model |
CHADEMO Plug to GBT Adaptor |
|
Input Features |
|
|
Rated Voltage |
1000V DC |
| Rated Current | 125A |
|
Case material |
Thermoplastic |
|
Terminal |
Copper alloy,silver plating |
|
Flame retardant grade |
UL94 V-0 |
|
Coupled Force |
45N＜F＜100N |
|
Impact of External Force |
1M drop and 2T run over |
|
Operating Temperature |
-30℃~ +50℃ |
|
Cable Length |
No visual cable design |
|
Application |
Charging a type2 EV on a type1 EVSE |
|
Environment Features |
|
|
Working Temperature（℃） |
-30 ~ +50℃ |
|
Relative Humidity |
5~95% no condensation |
| Safety | |
|
Certification |
CE |
Tags: #plug adaptor, manufacturer, factory
