> Mode2 Portable AC Charger

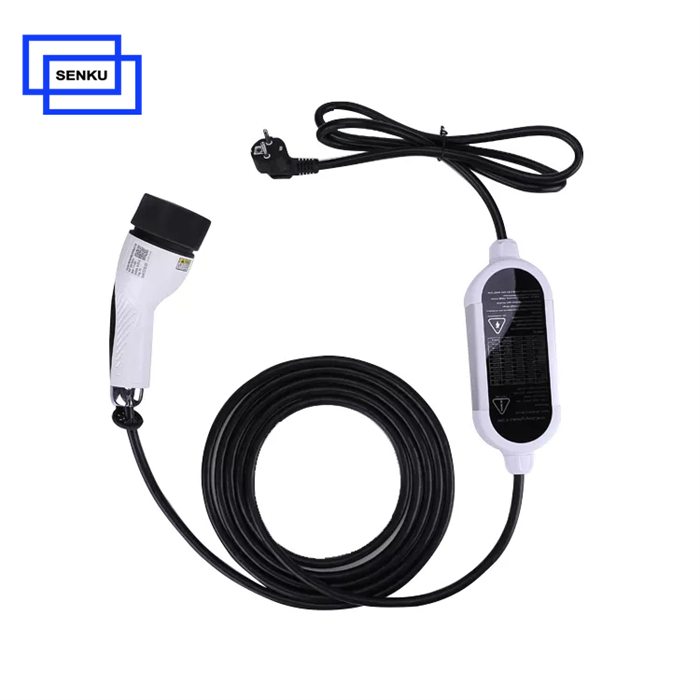

13A 2.8KW Type 1 Portable EV Car Charger

Current: 6A 8A 10A 13A 16A
Voltage: 110V-240V AC
Operation Temp.:-30℃ ~ + 50℃
Charger Box IP Level: IP 65
Product description: 13A portable ev chargers are mobile charging devices commonly used for temporary charging of electric vehicles. This 13A portable ev chargers are equipped with control and protection devices to ensure
Inquiry

Product introduction

J1772 Type 1 Portable EV Charger Manufacturer

13A portable ev chargers are mobile charging devices commonly used for temporary charging of electric vehicles. This 13A portable ev chargers are equipped with control and protection devices to ensure charging safety. Users can connect them to ordinary household power outlets and use an intermediate control box to transfer power to the vehicle. Their convenience and ease of use make them a backup choice for every electric vehicle owners, especially when dedicated charging stations are unavailable.

Basic Data

Portable Charger Electric Performance.
Rated current	6A 8A 10A 13A
Rated voltage	110V- 240V AC
Vehicle Side Charging Plug	SAE J1772 Type 1 plug
Wall Side Power Plug	Schuko / UK 3pins / Type M / Thailand Plug / NEMA 5-15 or customized according to buyer local country standard
Material	Charging Box: Thermoplastic, Flame retardant grade UL94-0; Vehicle Plug Contact Pin: Cooper alloy,sliver + thermoplastic on the top
Operation Temp.	-30℃ ~ + 50℃
Charger Box IP protection class	IP 65
Protection	RCD TypeA Leakage Protection Over-voltage Protection; Under-voltage Protection; Over- Current Protection; Under- Current Protection; Over-temperature Protection; Lightning Protection; Grounding Protection; Flame-retardant protections etc...
