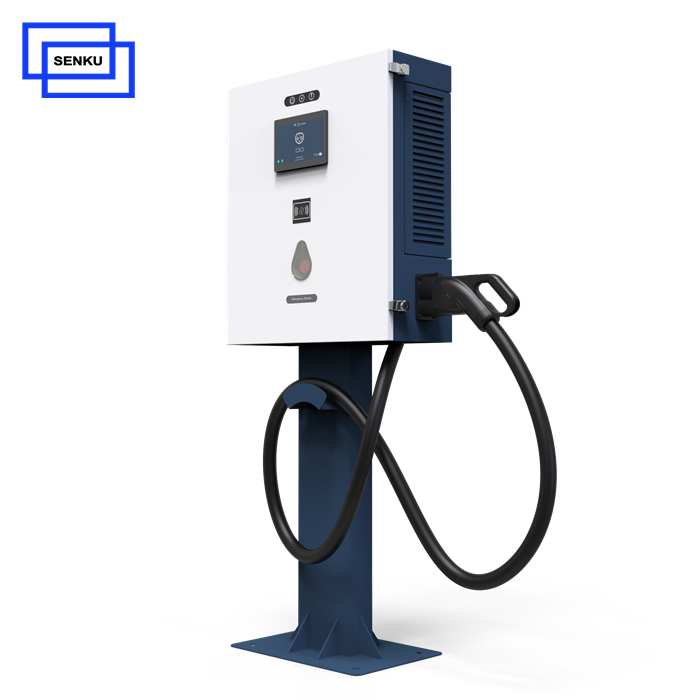

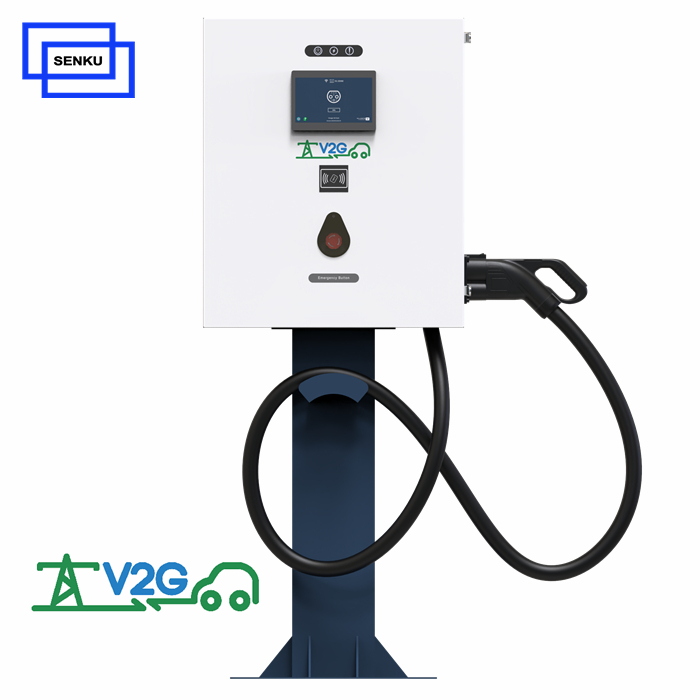

22KW GBT V2G Vehicle To Grid Charger
- Rated Voltage: 400V AC±15%, 3phase,
- Output voltage:50-1000V DC
- Output Power:40KW @ 134A
- IP Level: 54
- Product description: V2G / V2H EV charger, also known as Bidirectional EV Charger, generally refers to a charging station that can discharge to Grid. V2G (vehicle to grid) technology enables bidirectional energy flow b
Product introduction
China Electric Vehicle GBT 1000V V2G DC Electrical Chargers
V2G / V2H EV Charger, also known as Bidirectional EV Charger, generally refers to a charging station that can discharge to Grid.
V2G (vehicle to grid) technology enables bidirectional energy flow between electric vehicles and the power grid. This electrical chargers Supports V2H (Vehicle to Home) mode, V2G (Vehicle to Grid) mode, G2V (Grid to Vehicle)
22KW GBT 1000V V2G DC Electrical Chargers Product Features
- Support V2L / V2H / V2G
- 22KW /44KW DC Fast Charging
- RFID/ APP / Credit Card Payment
- CCS Type 1 / CCS Type 2 / GBT DC / CHADEMO DC cable Optional
- FRU Onboard Diagnostics
- Open OCPP 1.6 protocol support; With intelligent power management capabilities, you can operate multiple workstations at a low cost.
- The multilingual touch screen and intuitive status indicator light make it easy for everyone to charge.
- Multiple protections and the outdoor IP 54 design is reliable in any situation.
| Specification | Project | Data | |
| Charging Mode | AC Input | Input Voltage/Current | 260Vac~530Vac, Rated 380V AC 3-phase; 3P+N+PE |
| Frequency | 45Hz-65Hz | ||
| Input Power Factor | ≥0.99 (full load output) | ||
| Current distortion THD | <5% (50%~100% full load output power) | ||
| DC Output | DC Output Power | 22KW max | |
| DC Voltage/Current | 150Vdc-1000Vdc, 0-73.3A | ||
| Voltage Accuracy | <±0.5% | ||
| Steady Flow Accuracy |
≤±1% (output load 20%~100% rated range) |
||
| Efficiency | >95% | ||
| Discharge Mode | DC Input | DC Input Voltage & Output Power | 150Vdc-1000Vdc; 22kW constant power output |
| Maximum Current | 80A | ||
| AC Output | AC Voltage/Power | 22kW constant power output at 324Vac~530Vac | |
| AC Output Current | 22kW / 67-41A | ||
| Output Efficiency | >96% (Rated input and output) | ||
| AC Frequency | 50Hz/60Hz | ||
| THD | <5% | ||
| Output Power Factor | Can be set, setting range is 0.8~1, -0.8~-1 | ||
| Efficiency (peak) | >95% | ||
| Electrical | LED Indicator | Yes | |
| Touch Screen | Colorful 7" Touch screen | ||
| Emergency Stop Button | Yes (Red Color) | ||
| RFID Function | Yes | ||
| Credit Card Reader | Optional | ||
| Smart Phone APP | Yes | ||
| Energy Meter | Yes | ||
| Structure Design | Housing Material | Metal case | |
| Installation Method | Wallbox Or Floor-stand | ||
| Application scenes | Commercial / Public charging, such as: Workplaces, Retail & hospitality, Commercial parking lots, highways, school, Charging network operators and Fleets...etc | ||
| Charging Outlet | Combo CCS2 / CHAdeMo / Combo CCS1 /GBT option one | ||
| Charging Outlet Quantity | 1 (Single) | ||
| Cable Length | 5M cable or Cutomized | ||
| Communication | Network Method | Ethernet – Standard || 3G/4G Modem (Optional) | |
| Communication Protocol | PLC; CAN | ||
| OCPP 1.6 JSON | |||
| Environmental Index | Operating Temperature | -40℃~+75℃, use with derating above 55℃ | |
| Working Humidity | 5%~95% without condensation | ||
| Working Altitude | <2000M, the power will reduce for use above 2000m | ||
| Protection Grade | IP54 / IK10 | ||
| Application Site | Indoor/Outdoor | ||
| Cooling Method | Fan cooling | ||
| Security Protection | Multi le Protection | Input over/under voltage protection, Output overvoltage protection, Overcurrent and short circuit protection, Over temperature protection, Emergency stop protection, SPD protection etc... | |
| Certificate Compliance | CE Certification | ||
|
EN IEC 61851-1:2019, EN IEC 61851-21-2:2021 EN 61851-23:2014/AC:2016-06, EN 61851-24:2014/AC:2015 EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021 EN 61000-3-12:2011, EN 61000-4-7:2002/A1:2009 |
|||
| Warranty | 12 months | ||
| Dimension | Dimension |
630*260*750mm Wall Charger 630*260*1600mm Pillar Charger |
|
