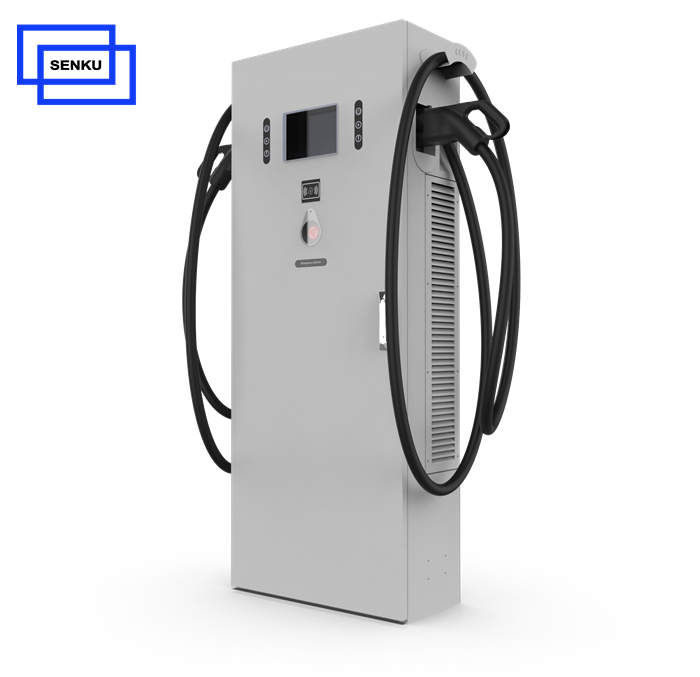

80KW GB/T Electric Car Charger Port

The 80KW EV DC Fast Charging 80KW GB/T E Car Charge Point has multiple connectivity options, including WiFi, 4G, and Ethernet and the charger fully supports the OCPP 1.6 protocol, which enables the owner of the EV Charger to remotely control and manage the charging station. This feature provides significant convenience, allowing for real-time monitoring, troubleshooting, and configuration adjustments without the need for on-site intervention.

Additionally, the charger is future-proof, as it is designed to be upgradable to the latest OCPP 2.0 protocol.

Specification	Model	Data
AC Nominal Input	Phases/ Lines	3-phase; 3P+N+PE
	Input Voltage	260Vac~530Vac, Rated 380V AC
	Frequency	50Hz-60Hz
DC Nominal Output	DC Voltage Accuracy	<±0.5
	Output Voltage/current	60KW @ 200A ; 150V-1000V DC
		80KW @ 200A ; 150V-1000V DC
	Output Efficiency	>96% (Rated input and output)

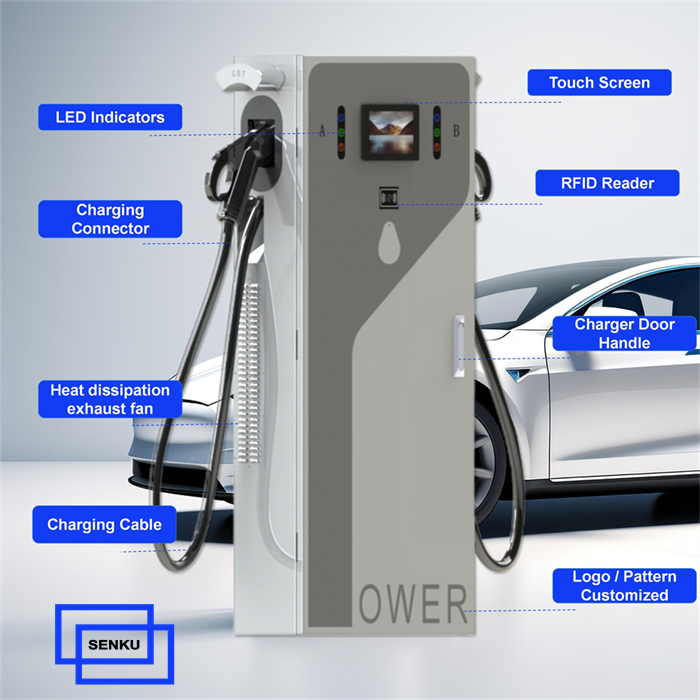

Electrical	LED Indicator	Yes
	LCD Touch Screen	Colorful 7" Touch screen
	Emergency Stop Button	Yes (Red Color)
	RFID Function	Yes
	Smart Phone APP	Yes
	Energy Meter	Yes
Structure Design	Housing Material	Metal case
	Installation Method	Floor-stand
	Application scenes	Commercial / Public charging, such as: Workplaces, Retail & hospitality, Commercial parking lots, highways, school, Charging network operators and Fleets...etc
	Charging Outlet	Combo CCS2 / CHAdeMo / Combo CCS1 option one
	Charging Outlet Quantity	1 (Single) Or 2 (Dual)
	Cable Length	5M cable or Cutomized
Communication	Network Method	Wifi; Ethernet; 4G
	Communication Protocol	PLC; CAN
		OCPP 1.6 JSON
Environmental Index	Operating Temperature	-30~+50°C
	Working Humidity	5%~95% without condensation
	Working Altitude	<2000M
	Protection Grade	IP54 / IK10
	Application Site	Indoor/Outdoor
	Cooling Method	Fan cooling
Security Protection	Multi le Protection	OverCurrent Protection, Over/ Under Volatge Protection, Short Circuit Protection, Reverse Polarity Protection, OverTemperature Protection, Protect, Earth Connect Monitoring, Full automatic stop
	Certificate Compliance	CE Certification
		EN IEC 61851-1:2019, EN IEC 61851-21-2:2021 EN 61851-23:2014/AC:2016-06, EN 61851-24:2014/AC:2015 EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021 EN 61000-3-12:2011, EN 61000-4-7:2002/A1:2009
	Warranty	12 months
Dimension	Dimension (W*D*H)	630×285 × 1650 mm

Charger Possible configurations

The 80KW EV DC Fast Charging 80KW GB/T E Car Charge Point is available in both single and dual EVplug options, allowing users to select or combine them based on national standards and specific requirements.

Single Plug: Options include CCS2, CCS1, GBT, or CHADEMO.

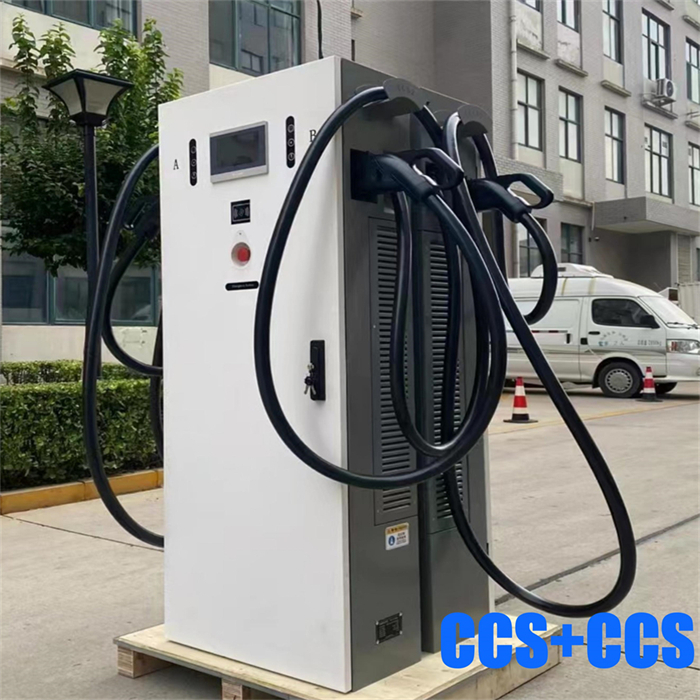

Dual Plugs: Any two from CCS2, CCS1, GBT, or CHADEMO can be paired together.

Note: Both EV charging cables on the dual gun charging station can operate concurrently, enabling the charging of two electric vehicles simultaneously, this increases the station's efficiency and helps lower investment costs.
