UL J1772 350A CCS1 EV Charging Plug

Rated: 350A 1000V DC
Certificate: UL
IP Level: TYPE 3R
Mechanical lifespan: Plug and unplug ≥10000 times
Product description: SENKU's CCS1 DC EV charging plug is engineered for rapid, high-power DC charging applications, offering charging currents ranging from 60A to 350A. These charging cables comply with the SAE J1772 spec
Inquiry

Product introduction

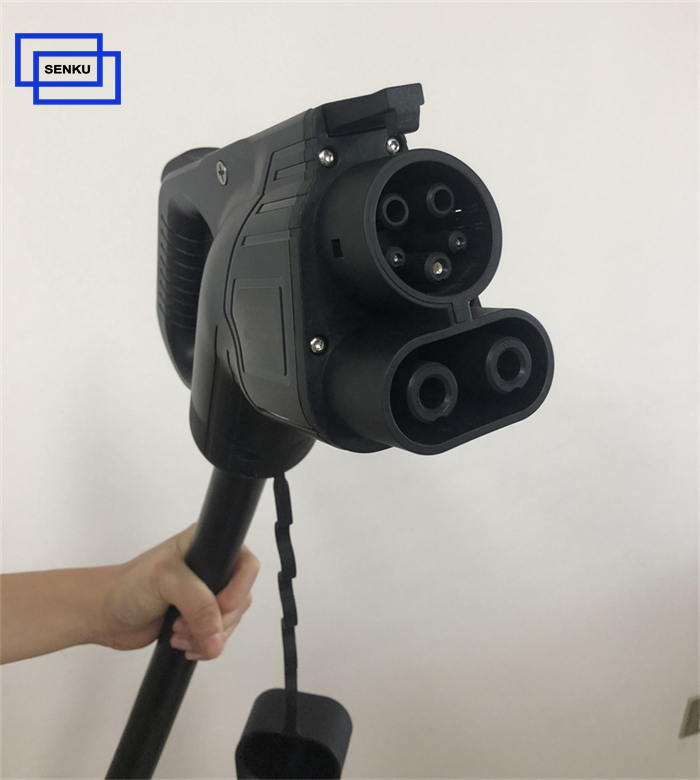

UL J1772 350A CCS1 EV Charging Plug For 350KW High Power Charging Stations

SENKU's CCS1 DC EV charging plug is engineered for rapid, high-power DC charging applications, offering charging currents ranging from 60A to 350A. These charging cables comply with the SAE J1772 specifications, which are widely recognized in the electric vehicle industry, and are available in configurations that meet UL 2251 / UL62 standards.

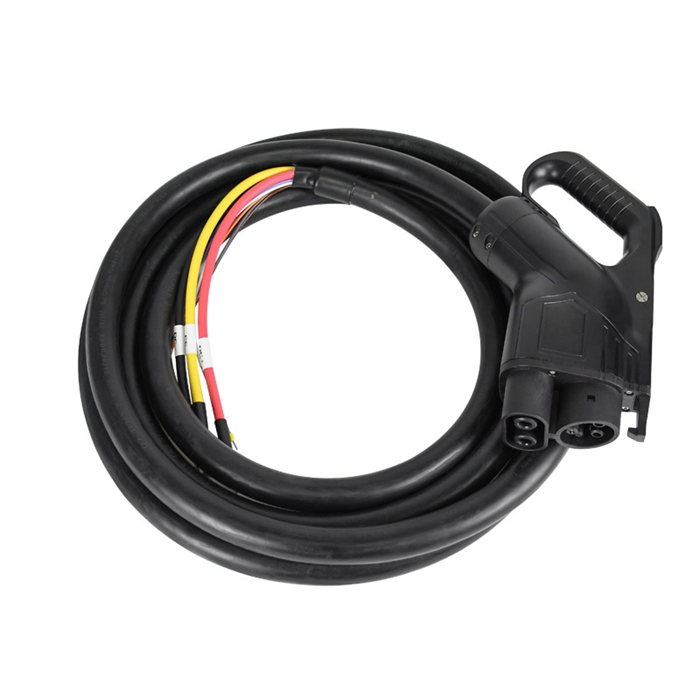

The SENKU CCS1 DC plug is built to endure high usage demands, successfully tested for up to 10,000 connection cycles. Standard cable lengths include 5m, 7.5m, and 10m, with customizable length options available upon request.

This CCS Type 1 DC charging plugs set new standards when it comes to the performance, reliability and user-friendliness of electric vehicles. Developed and manufactured with a clear focus on quality and innovation, our DC charging plugs offer a safe and efficient way to charge electric vehicles quickly.

Electric Performance.
Rated current	350A
Operate voltage	1000V DC
Insulation resistance	>2000MΩ (DC1000V)
Terminal temperature rise.	<50K
Mechanical life	no-load plug in / plug out > 10000 times
Materia	Thermoplastic, Flame retardant grade UL94-0;
Materia	Pin: Cooper alloy,sliver + thermoplastic on the top
Operation Temp.	-30℃ ~ + 50℃
IP protection class	TYPE 3R
Standard	UL 2251, CSA C22.2 NO. 282, SAE J1772
Certifications	UL Certification

Main Feature

- Lightweight and easy to handle
- Charging system designed for low-maintenance
- Customizable technical solutions available
- Ready-to-use, plug-and-play functionality
- Power and signal contacts feature silver plating
- All contacts and connector front components are fully replaceable
- Temperature monitored using PT1000 sensors

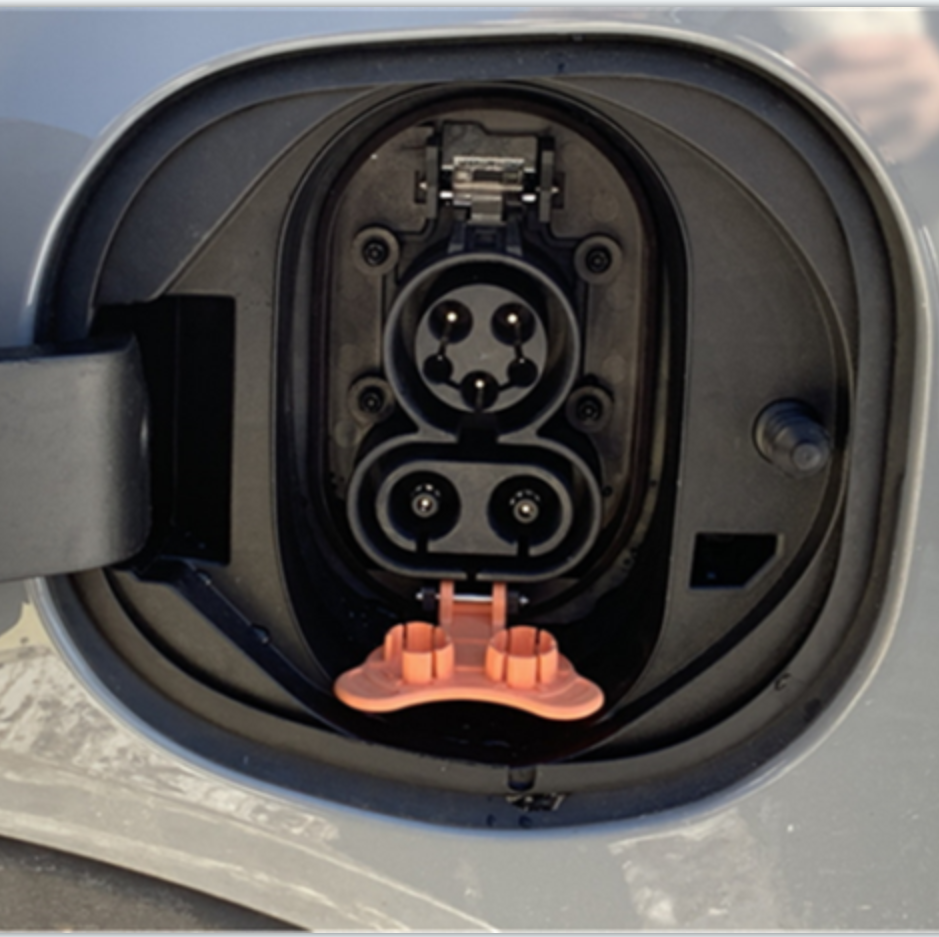

CCS1 is a powerful DC charging system, designed for fast, direct-current charging of electric vehicles (EVs) with charging sockets of type CCS1. It enables simple installation at electric vehicle supply equipment (EVSE) and offers high efficiency and reliability during the charging process.
