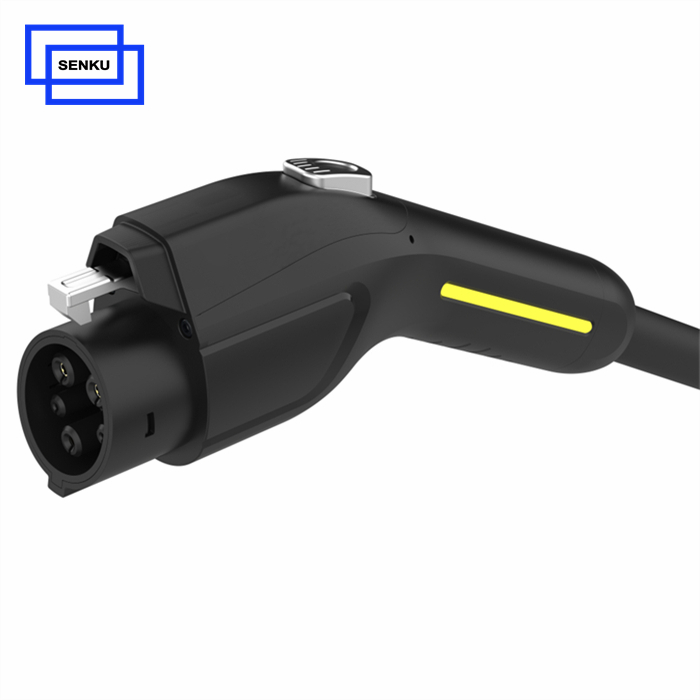

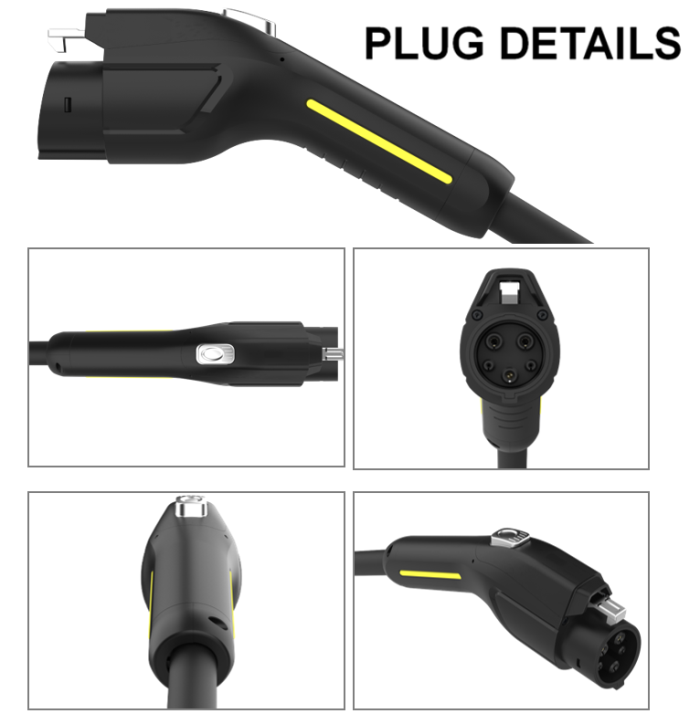

V2 16A 32A J1772 Car Charging Plug

Rated Current: 16A /32A
Operate Voltage: 250V AC
Certificate: CE
IP Level: IP54
Product description: Type 1 is a single-phase J1772 car charging plug, which is a standard configuration for electric vehicles in the United States and Asia. It allows you to charge your car at a speed of up to 12KW, depe
Inquiry

Product introduction

Vehicle Charging Solutions 16A 32A J1772 Car Charging Plug

Electric Performance.
Rated current	16A / 32A
Operate voltage	240V AC
Insulation resistance	>1000MΩ (DC500V)
Terminal temperature rise.	<50K
Withstand Voltage	2000V
Contact Resistance	0.5 megohm MAX
Mechanical life	no-load plug in / plug out > 10000 times
Materia	Thermoplastic, Flame retardant grade UL94-0;
Materia	Pin: Cooper alloy,sliver + thermoplastic on the top
Operation Temp.	-30℃ ~ + 50℃
IP protection class	IP54
Standard	SAE J1772-2017
Certifications	CE

Type 1 is a single-phase J1772 car charging plug, which is a standard configuration for electric vehicles in the United States and Asia. It allows you to charge your car at a speed of up to 12 kilowatts, depending on the car's charging power and grid capacity.

The Senku Type 1 J1772 car charging plug is available in the 16A 32A model for selection; The evse plug has passed UL strict testing and is the best choice for your charging station.

More specification of this Type 1 J1772 car charging plug, please contact our sales.
