> Mode2 Portable AC Charger

Portable 11KW Home Charger 16A

Current: 6A 8A 10A 13A 16A
Voltage: 380V AC
Operation Temp.:-30℃ ~ + 50℃
Charger Box IP Level: IP 67
Product description: The portable 11KW home charger 16A is a Mode 2 charger designed for electric vehicle (EV) charging. It is often included in the vehicle’s portable charging kit and is compatible with the industry-stan
Inquiry

Product introduction

Portable 11KW Home Charger 16A - Manufacturer, Supplier, Factory

Portable Charger Electric Performance.
Rated current	6A 8A 10A 13A16A
Rated voltage	380V AC
Vehicle Side Charging Plug	TYPE2 / TYPE1 /GBT AC/ NACS AC
Wall Side Power Plug	CEE Industry plug (Adapters available)

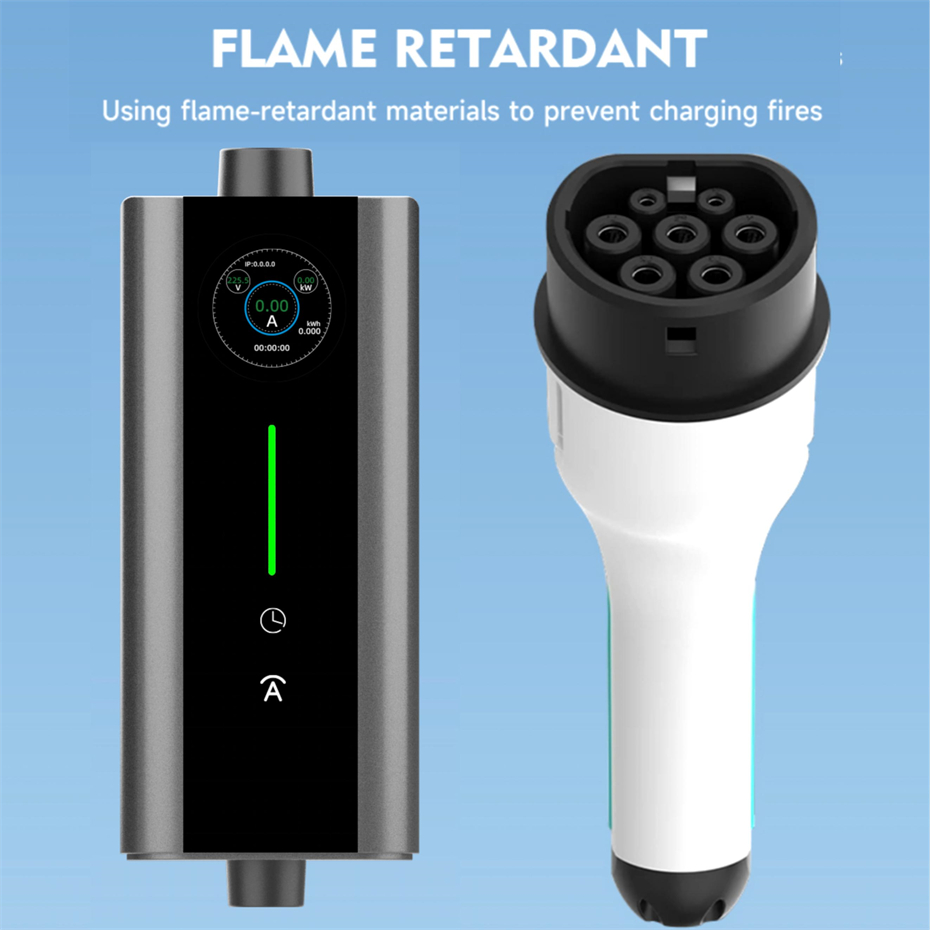

Material	Charging Box: Thermoplastic, Flame retardant grade UL94-0; Vehicle Plug Contact Pin: Cooper alloy,sliver + thermoplastic on the top
Operation Temp.	-30℃ ~ + 50℃
Charger Box IP protection class	IP 66

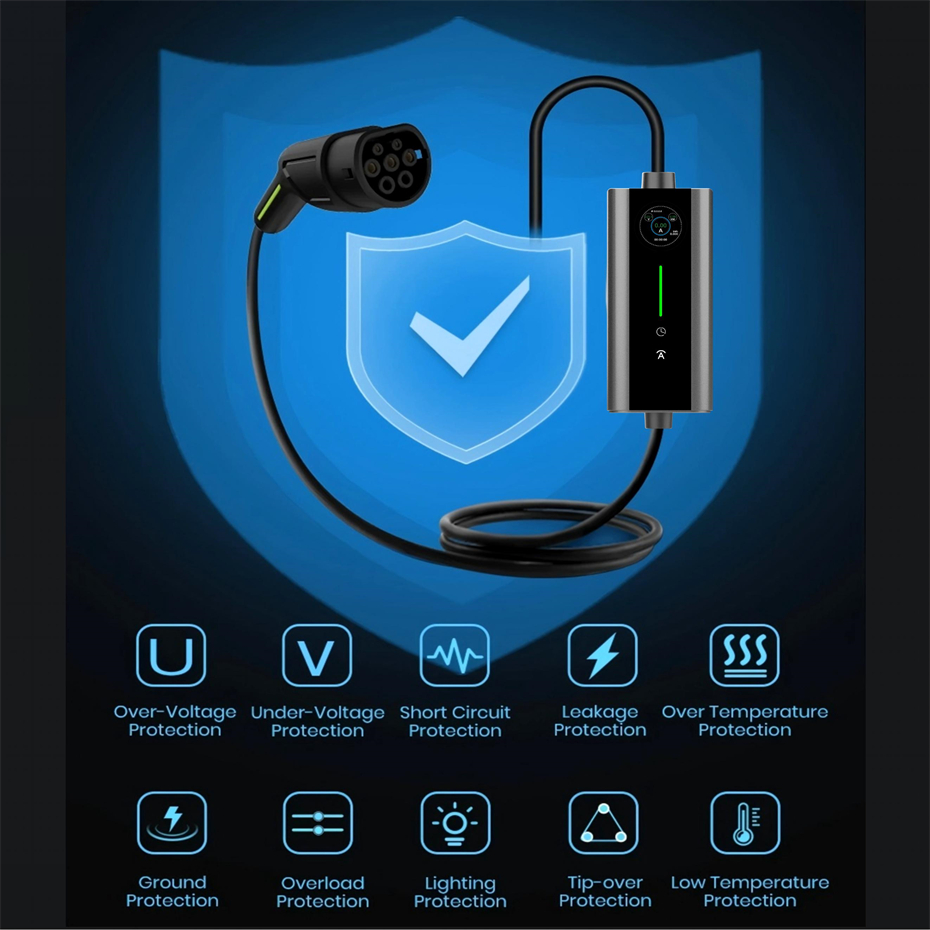

Protection	RCD TypeA Leakage Protection Over-voltage Protection; Under-voltage Protection; Over- Current Protection; Under- Current Protection; Over-temperature Protection; Lightning Protection; Grounding Protection; Flame-retardant protections etc...

Portable level 2 charger known as Mode 2, are used to charge electric vehicles and are typically part of the vehicle's portable charging kit. These chargers connect to standard household outlets, making them practical for home or travel use. Senku's Mode 2 16A level 2 charger have a control box with basic protection features, such as overheating and leakage prevention, ensuring safe charging. They are perfect for overnight charging after daily commutes, offering convenience and flexibility.

Charger Features

- Adjustable Current Settings: Switchable between 6A, 8A, 10A, 13A, and 16A for flexible charging options.

- Certifications: Complies with IEC62196-2, EN62752 standards, and has CE certification.

- EV Charging Connector Options: Type 2 and GBT connectors available for compatibility.

- Custom Branding Options: We offer customizable branding services for your convenience.

Home Charger

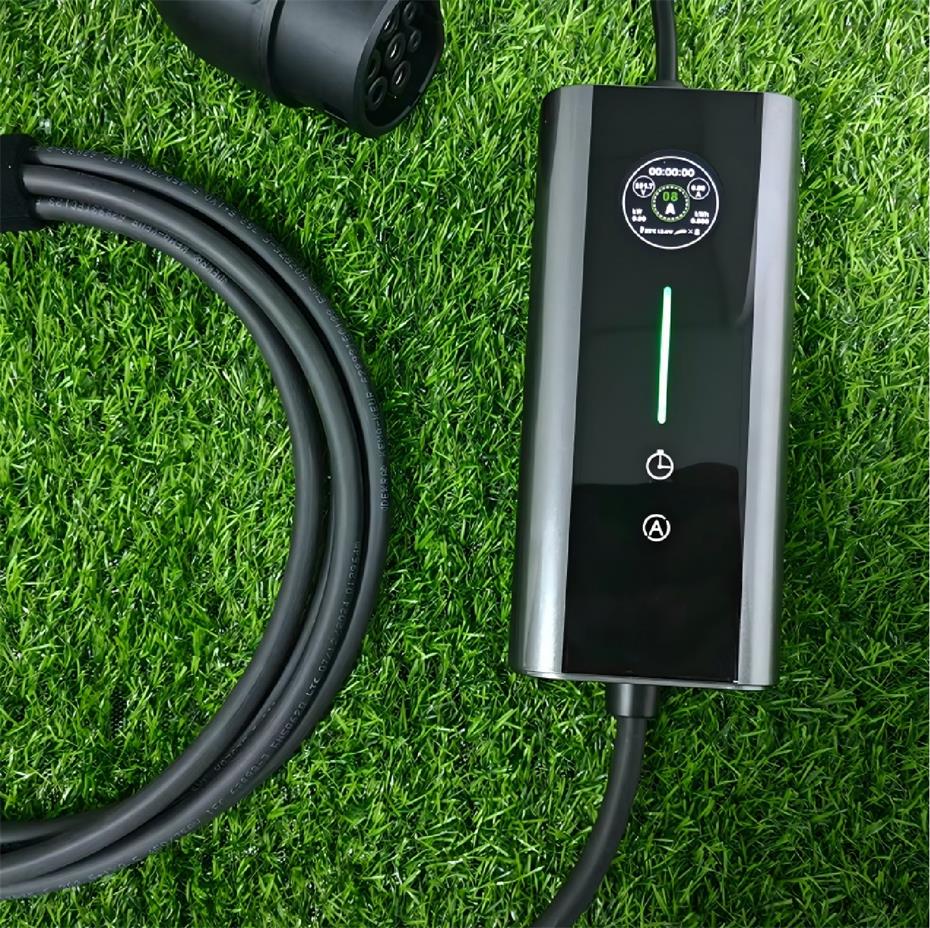

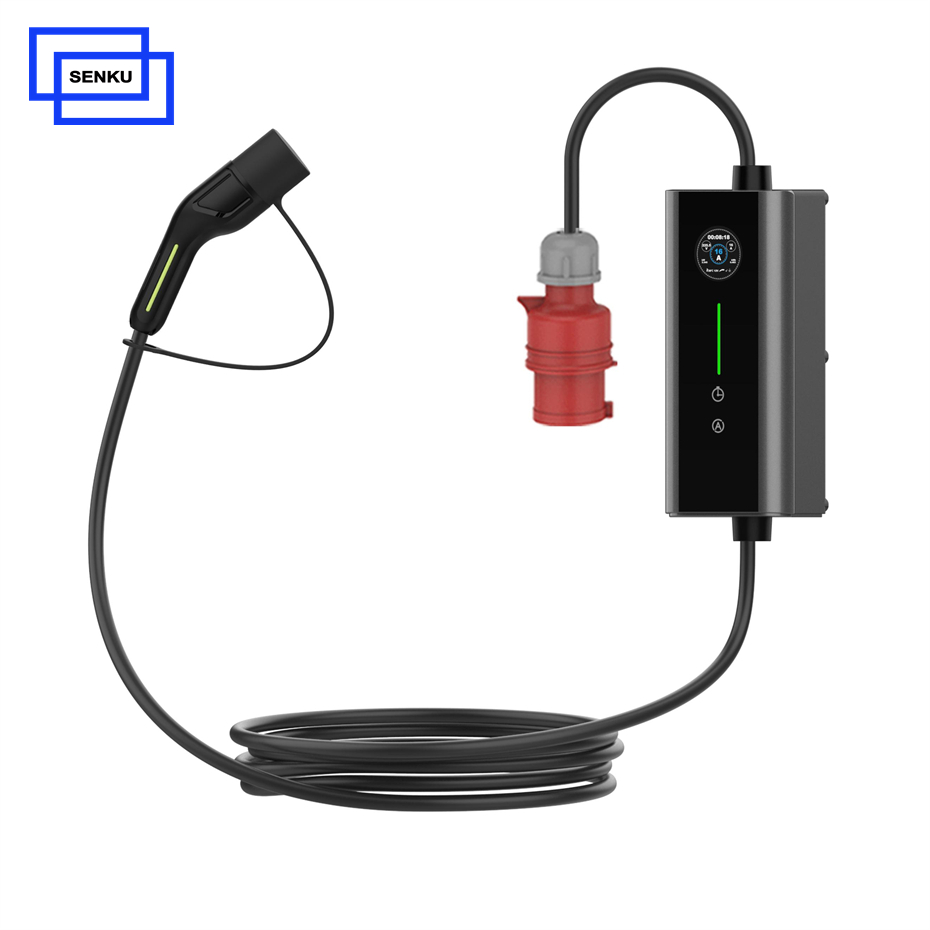

The portable 11KW home charger 16A is a Mode 2 charger designed for electric vehicle (EV) charging. It is often included in the vehicle’s portable charging kit and is compatible with the industry-standard red CEE plug, making it a versatile choice for home use or when you’re on the go. This charger is equipped with a control unit that includes essential safety features, such as protection against overheating and leakage, to ensure safe and reliable charging.

Built to Withstand Harsh Conditions

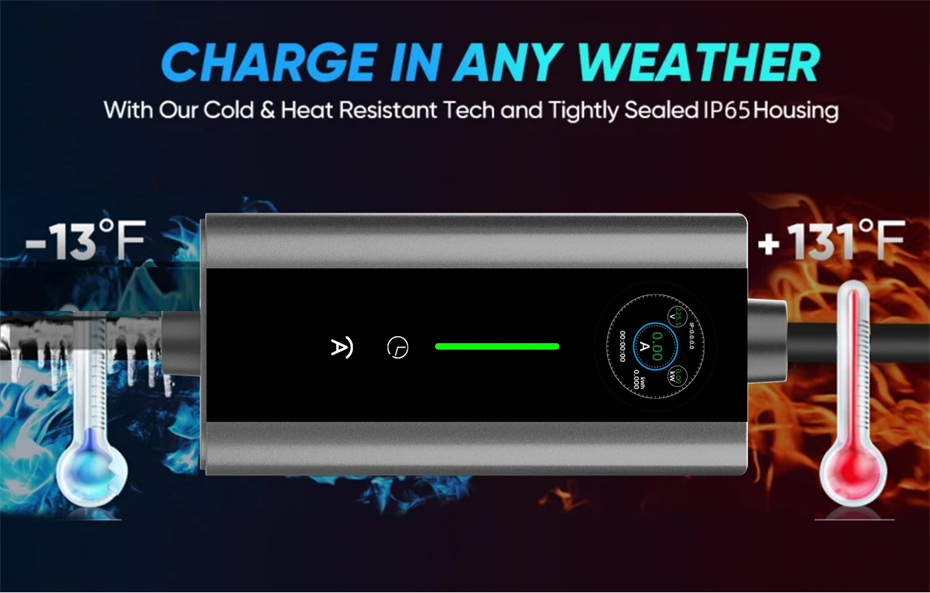

The portable 11KW home charger 16A offers robust protection, with an IP67 rating for both dust and water resistance, allowing it to function safely outdoors. The high-strength thermoplastic construction makes this charger highly durable, able to endure accidental drops or bumps without compromising its performance. This rugged build ensures the charger remains in optimal working condition even in challenging environments.

Home Charger 16A

Proper Charger Storage

To prolong the life of your Portable 11KW Home Charger 16A, please follow these storage guidelines:

1. Coil the Cable: Always roll up the cable when storing the charger and avoid leaving it on the ground.

2. Support the Control Box: Ensure the control box is either manually or mechanically supported. Never let it hang unsupported from the outlet.

3. Protect the Vehicle Plug: When storing the charger, cover the vehicle plug with the provided plug cap to keep it clean and secure.

4. Cable Organization: Use cable clips to neatly coil the cable for storage or transport.

11KW Home Charger 16A

Accessories for an Enhanced Charging Experience

At Senku, we offer a range of accessories to further improve your charging experience. If you require any additional accessories, feel free to reach out to our sales team, and we’ll be happy to assist you.

Portable 11KW Home Charger
