EV Charging Male Type 2 to Female Type 2 Adapter
- Rated Current: 32A
- Rated Voltage: 250V AC
- Certificate: CE
- IP Level: IP54
- Product description: type 2 male to type 2 female adapter
Product introduction

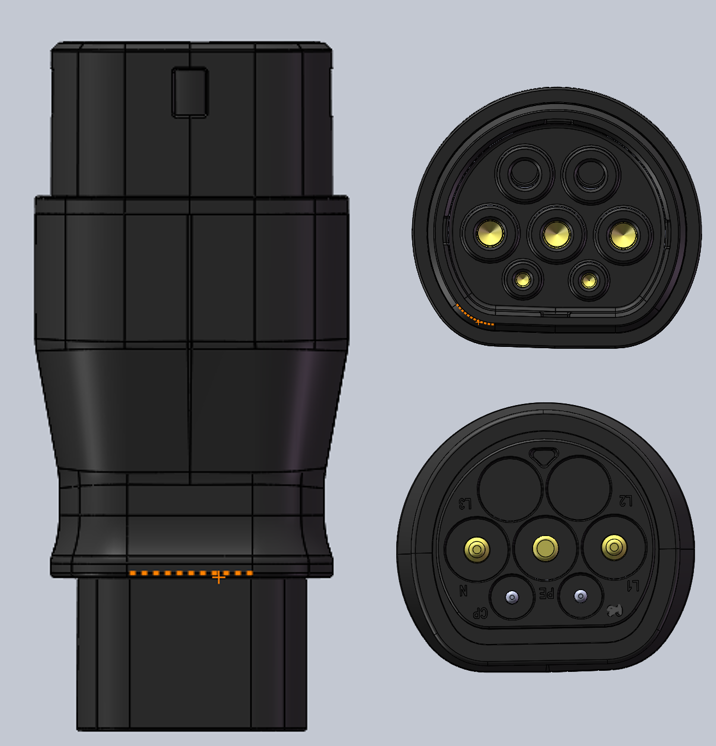

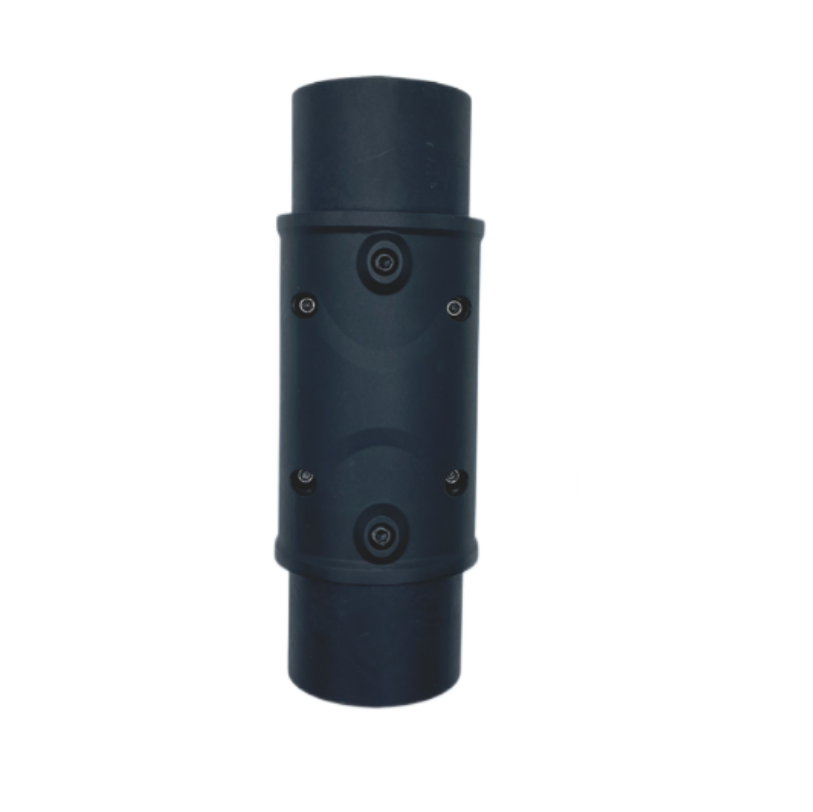

EV Charging Male Type 2 to Female Type 2 Adapter
Technical Data
Model |
Type 2 male to type 2 female adapter |
Input Features |
|
Rated Voltage |
250V AC |
Rated Current | 32A |
Case material |
Thermoplastic |
Terminal |
Copper alloy,silver plating |
Flame retardant grade |
UL94 V-0 |
Coupled Force |
45N<F<100N |
Impact of External Force |
1M drop and 2T run over |
Operating Temperature |
-30℃~ +50℃ |
Cable Length |
No visual cable design |
Environment Features |
|
Working Temperature(℃) |
-30 ~ +50℃ |
Relative Humidity |
5~95% no condensation |
Safety | |
Certification |
CE |
